REAR BRAKE
4-36

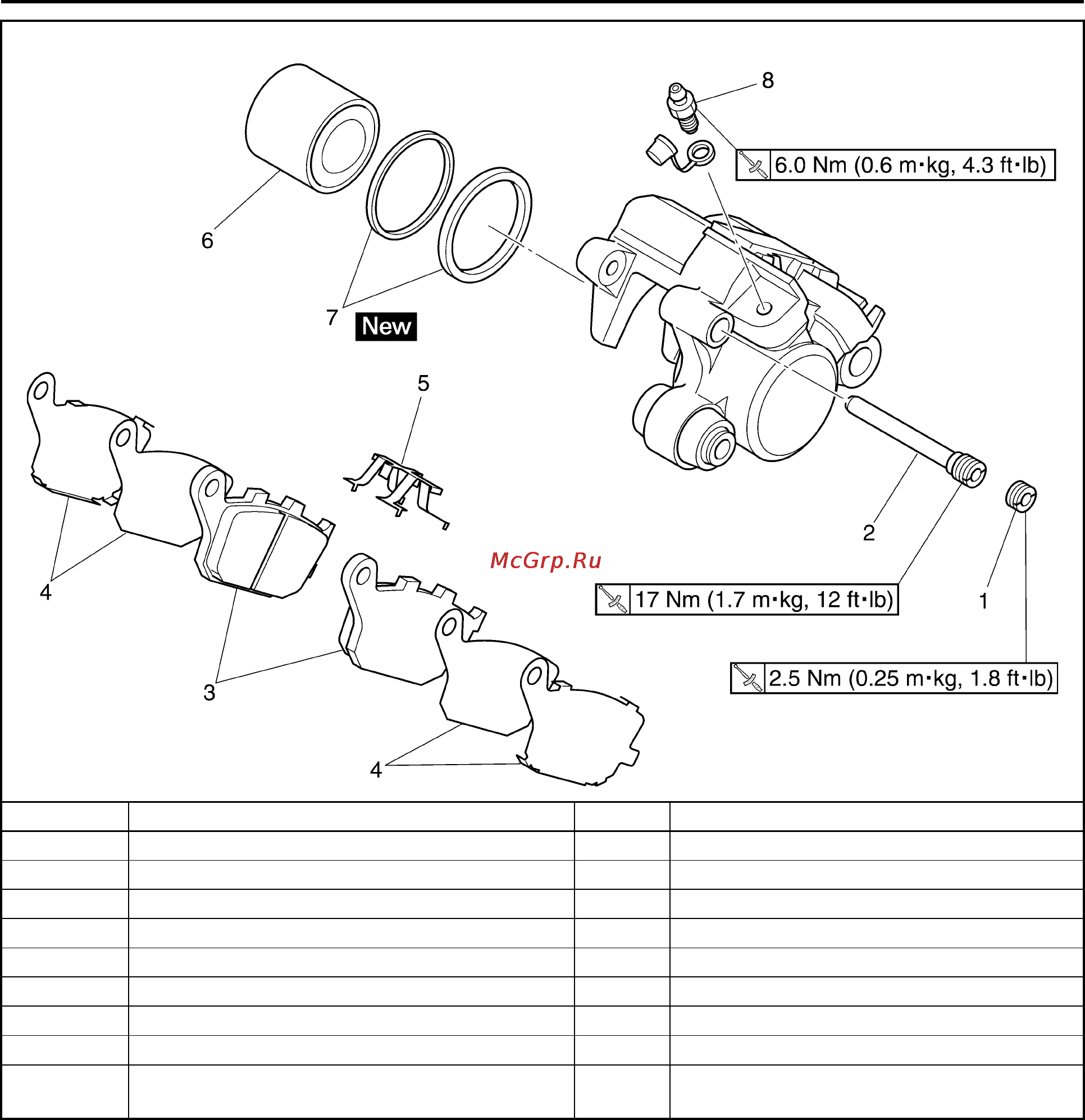

Disassembling the rear brake calipers
Order Job/Parts to remove Q’ty Remarks
1 Screw plug 1
2 Brake pad pin 1
3 Brake pad 2
4 Brake pad shim 4
5 Brake pad spring 1
6 Brake caliper piston 1
7 Brake caliper piston seal 2
8 Bleed screw 1
For assembly, reverse the disassembly pro-
cedure.
