ENGINE REMOVAL

5-5

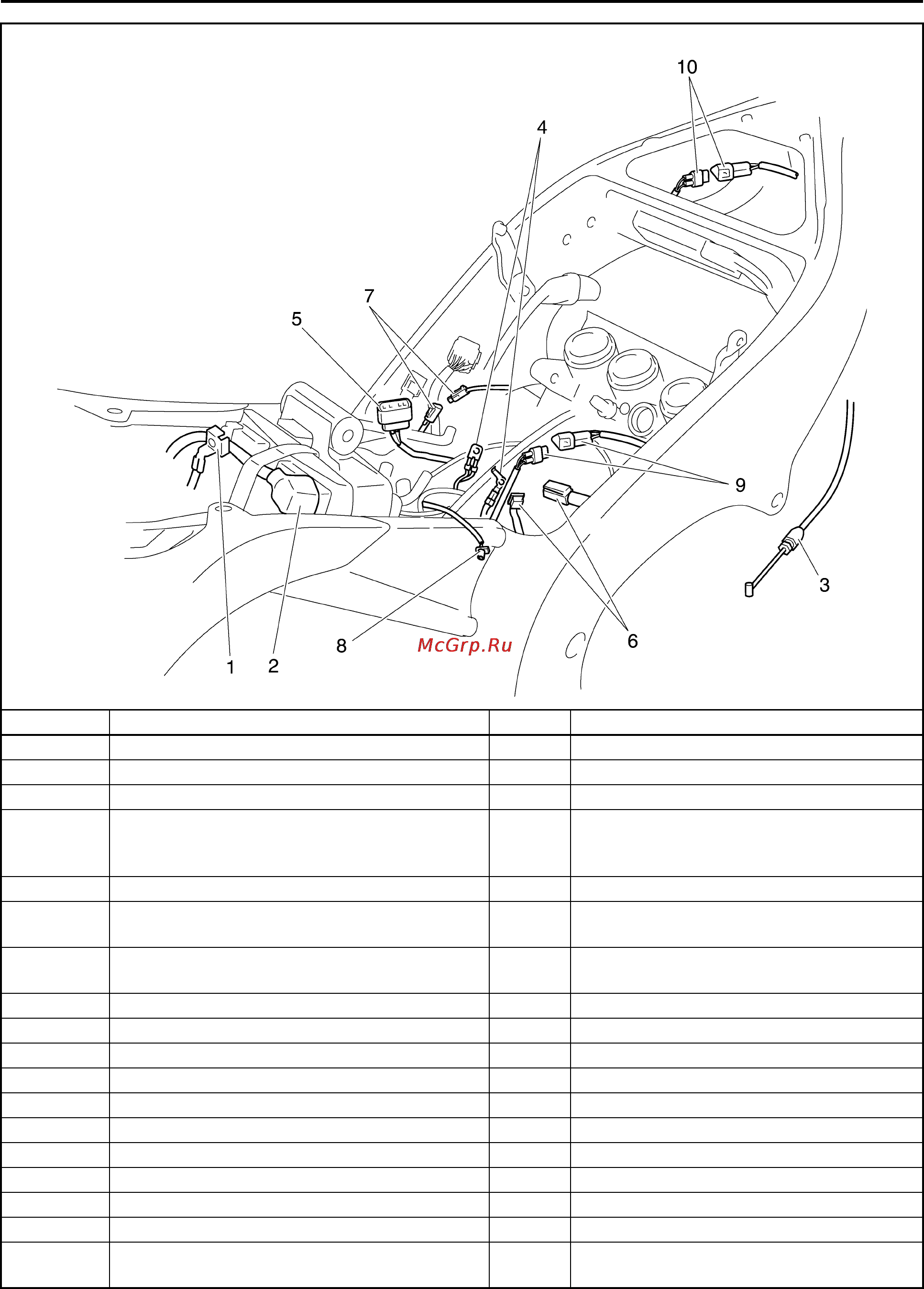

Disconnecting the leads and hoses

Order Job/Parts to remove Q’ty Remarks

Fuel tank Refer to "FUEL TANK" on page 7-1.

Air filter case Refer to "GENERAL CHASSIS" on page 4-1.

Throttle body Refer to "THROTTLE BODIES" on page 7-4.

Engine oil

Drain.

Refer to "CHANGING THE ENGINE OIL" on

page 3-11.

Oil cooler Refer to "OIL COOLER" on page 6-4.

Air cut-off valve

Refer to "AIR INDUCTION SYSTEM" on

page 7-9.

Starter motor

Refer to "ELECTRIC STARTER" on page 5-

39.

1 Battery negative lead 1

2 Battery positive lead 1

3Clutch cable 1

4 Engine ground lead 2

5 Stator coil assembly coupler 1 Disconnect.

6 Crankshaft position sensor coupler 1 Disconnect.

7 Oil level switch connector 1 Disconnect.

8 Neutral switch connector 1 Disconnect.

9 Speed sensor coupler 1 Disconnect.

10 Cylinder identification sensor coupler 1 Disconnect.

For installation, reverse the removal proce-

dure.
