CLUTCH
5-47
EAS25080
REMOVING THE CLUTCH

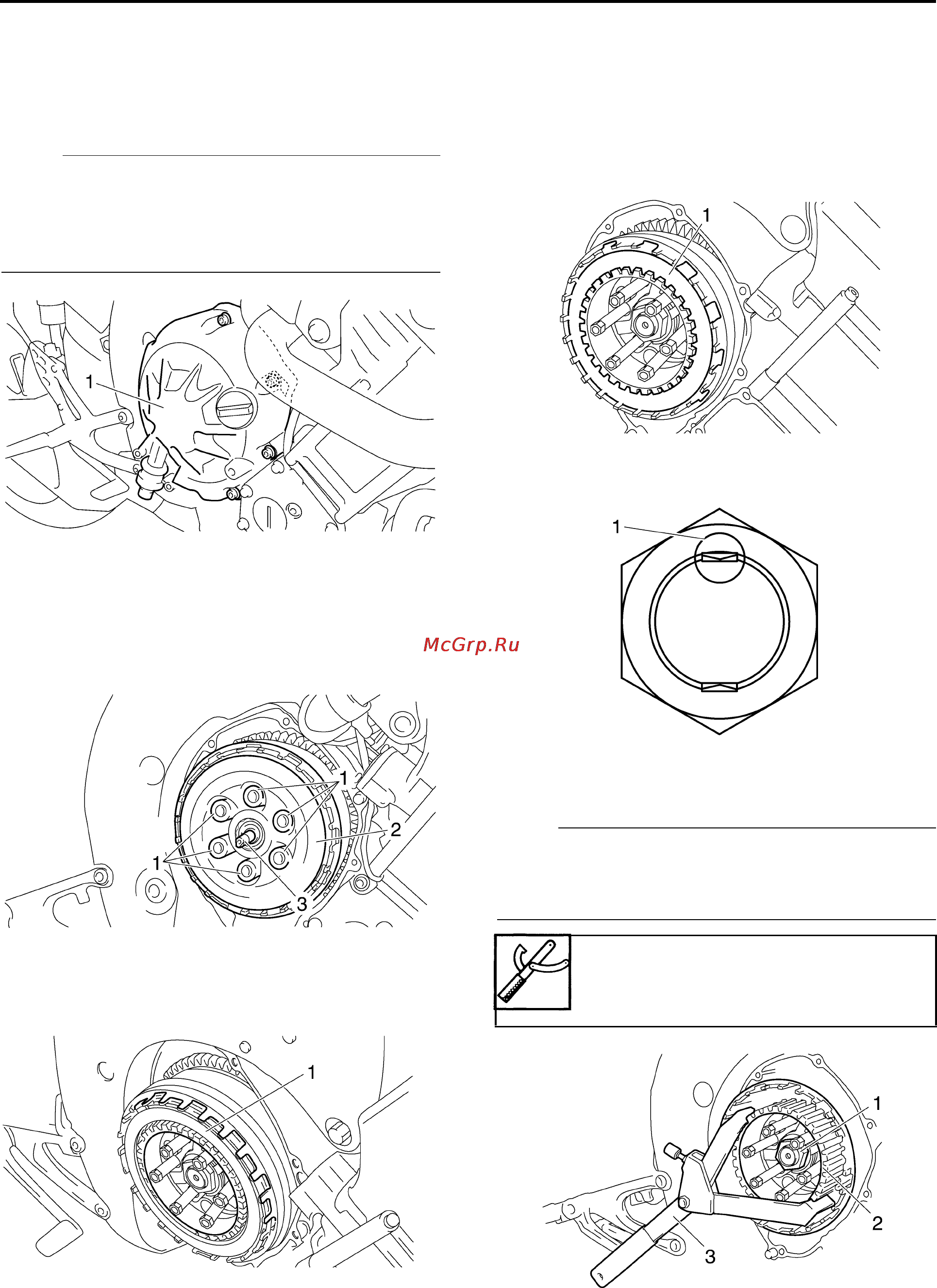

1. Remove:
• Clutch cover “1”
•Gasket
NOTE:
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern.
After all of the bolts are fully loosened, remove
them.
2. Remove:
• Compression spring bolts “1”
• Compression springs
• Pressure plate “2”
• Push rod “3”
3. Remove:
• Friction plate 1 “1”
4. Remove:
• Clutch plate 1 “1”
• Friction plate 2
• Clutch plate 2
• Clutch plate 3
• Friction plate 3
• Clutch damper spring
• Clutch damper spring seat
5. Straighten the clutch boss nut rib “1”.
6. Loosen:
• Clutch boss nut “1”
NOTE:
While holding the clutch boss “2” with the uni-
versal clutch holder “3”, loosen the clutch boss
nut.
7. Remove:
• Clutch boss nut
Universal clutch holder
90890-04086
YM-91042
