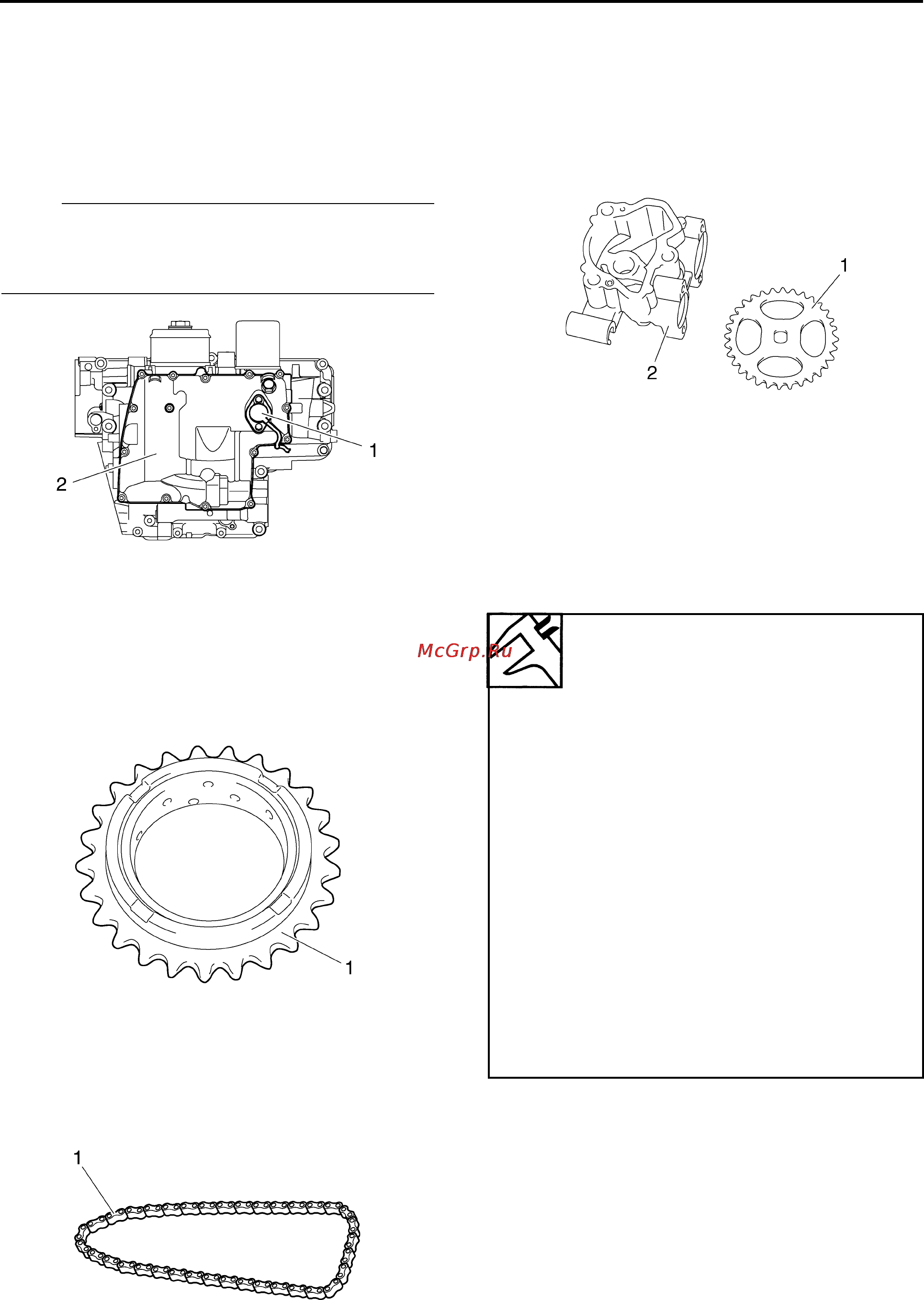

OIL PUMP
5-60
EAS24930
REMOVING THE OIL PAN
1. Remove:
• Oil level switch “1”
• Oil pan “2”
•Gasket
• Dowel pins
NOTE:
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern. After all of
the bolts are fully loosened, remove them.
EAS4C81012
CHECKING THE SPROCKET AND CHAIN
1. Check:
• Oil/water pump assembly drive sprocket “1”
Cracks/damage/wear → Replace the
defective part(-s).
2. Check:
• Oil/water pump assembly drive chain “1”
Damage/stiffness → Replace the oil/water
pump assembly drive chain and oil/water
pump assembly drive sprocket as a set.
EAS24960
CHECKING THE OIL PUMP
1. Check:
• Oil pump driven gear “1”
• Oil pump housing “2”
Cracks/damage/wear → Replace the
defective part(-s).
2. Measure:
• Inner-rotor-to-outer-rotor-tip clearance “a”
• Outer-rotor-to-oil-pump-housing clearance
“b”
• Oil-pump-housing-to-inner-rotor-and-outer-
rotor clearance “c”
Out of specification → Replace the oil
pump.
Inner-rotor-to-outer-rotor-tip
clearance
0.010–0.100 mm (0.0004–
0.0039 in)
Limit
0.180 mm (0.0071 in)
Outer-rotor-to-oil-pump-hous-
ing clearance
0.090–0.190 mm (0.0035–
0.0074 in)
Limit
0.220 mm (0.0087 in)
Oil-pump-housing-to-inner-and-
outer-rotor clearance
0.06–0.13 mm (0.0024–0.0051
in)
Limit
0.200 mm (0.0079 in)
