ENGINE REMOVAL

5-2

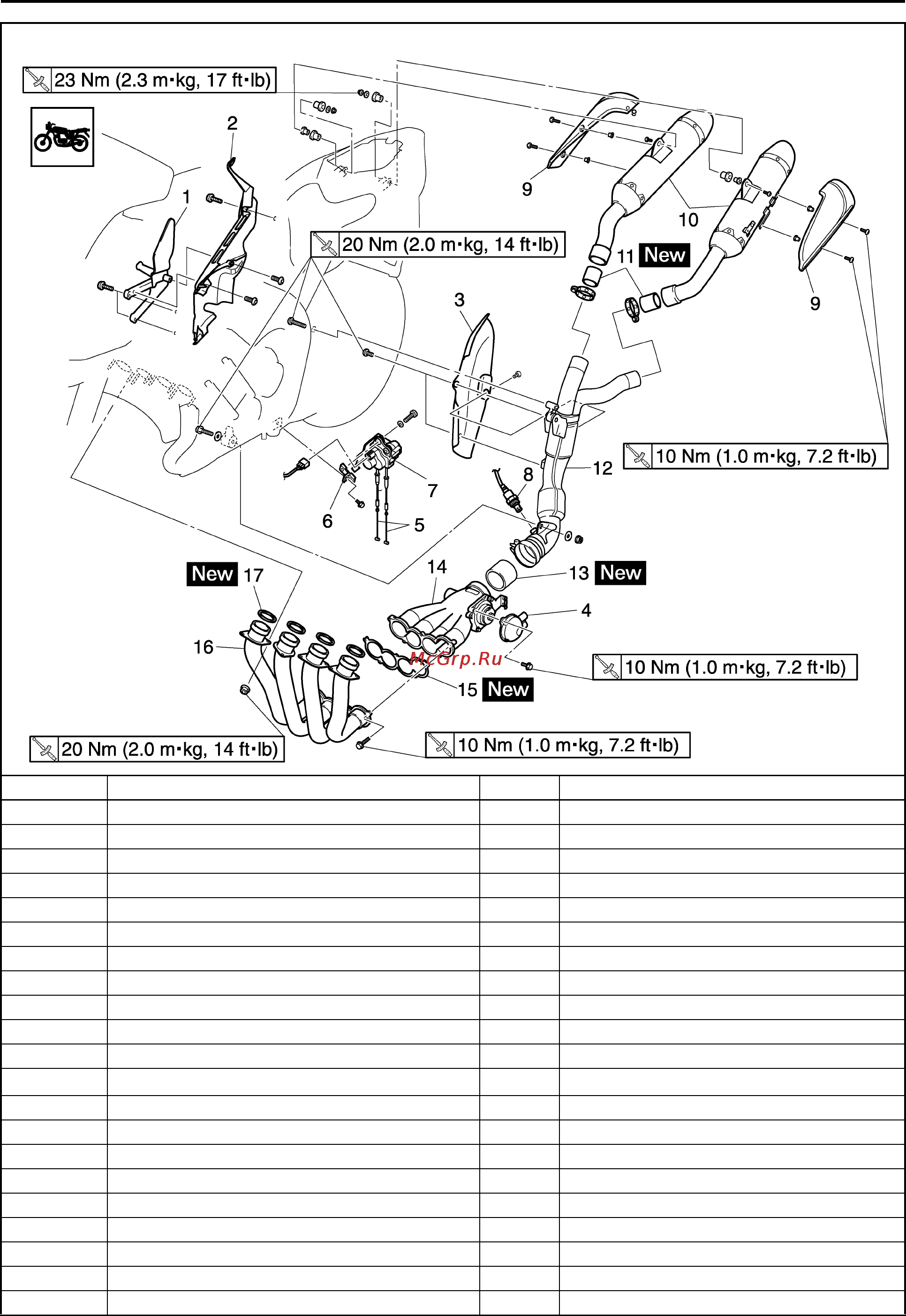

Removing the exhaust pipe

Order Job/Parts to remove Q’ty Remarks

Rider seat Refer to "GENERAL CHASSIS" on page 4-1.

Passenger seat Refer to "GENERAL CHASSIS" on page 4-1.

Side cowlings Refer to "GENERAL CHASSIS" on page 4-1.

Lower cowlings Refer to "GENERAL CHASSIS" on page 4-1.

1 Right footrest bracket 1

2 Protector cover 1

3 Protector 1

4 EXUP valve pulley cover 1

5 EXUP cable 2

6 EXUP servo motor bracket 1

7 EXUP servo motor 1

sensor

9 Muffler cover 2

10 Muffler 2

11 Gasket 2

12 Catalyst pipe assembly 1

13 Gasket 1

14 Exhaust valve pipe assembly 1

15 Exhaust valve pipe gasket 1

16 Exhaust pipe assembly 1

17 Exhaust pipe gasket 4
