CYLINDER HEAD
5-18
EAS24100
CYLINDER HEAD

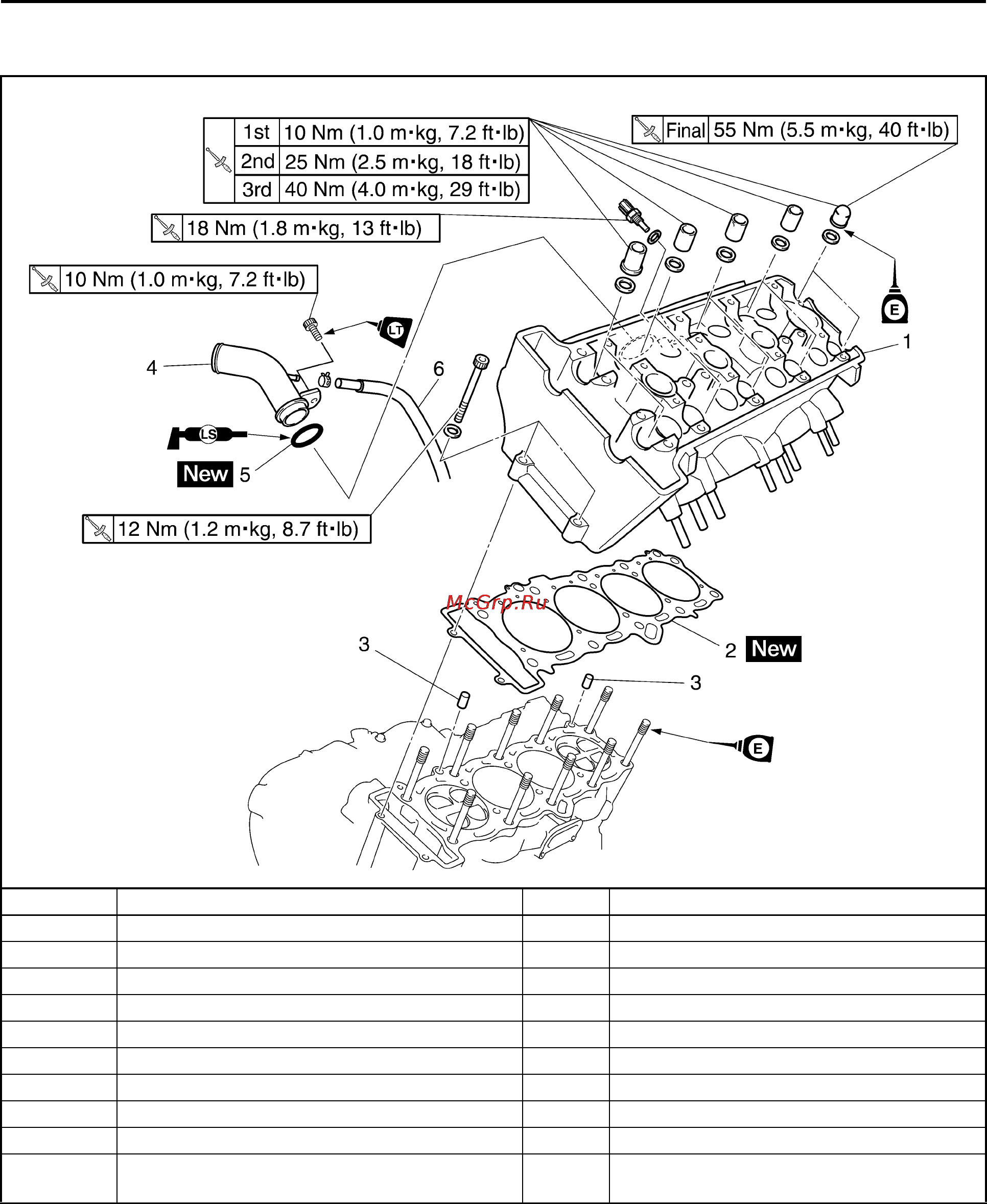

Removing the cylinder head
Order Job/Parts to remove Q’ty Remarks
Engine Refer to "ENGINE REMOVAL" on page 5-1.
Intake camshaft Refer to "CAMSHAFTS" on page 5-9.
Exhaust camshaft Refer to "CAMSHAFTS" on page 5-9.
1 Cylinder head 1
2 Cylinder head gasket 1
3Dowel pin 2
4 Coolant pipe 1
5O-ring 1
6 Water pump breather hose 1
For installation, reverse the removal proce-
dure.
