ENGINE
3-21
15. Install:
• Coolant reservoir cap
16. Start the engine, warm it up for several
minutes, and then stop it.
17. Check:

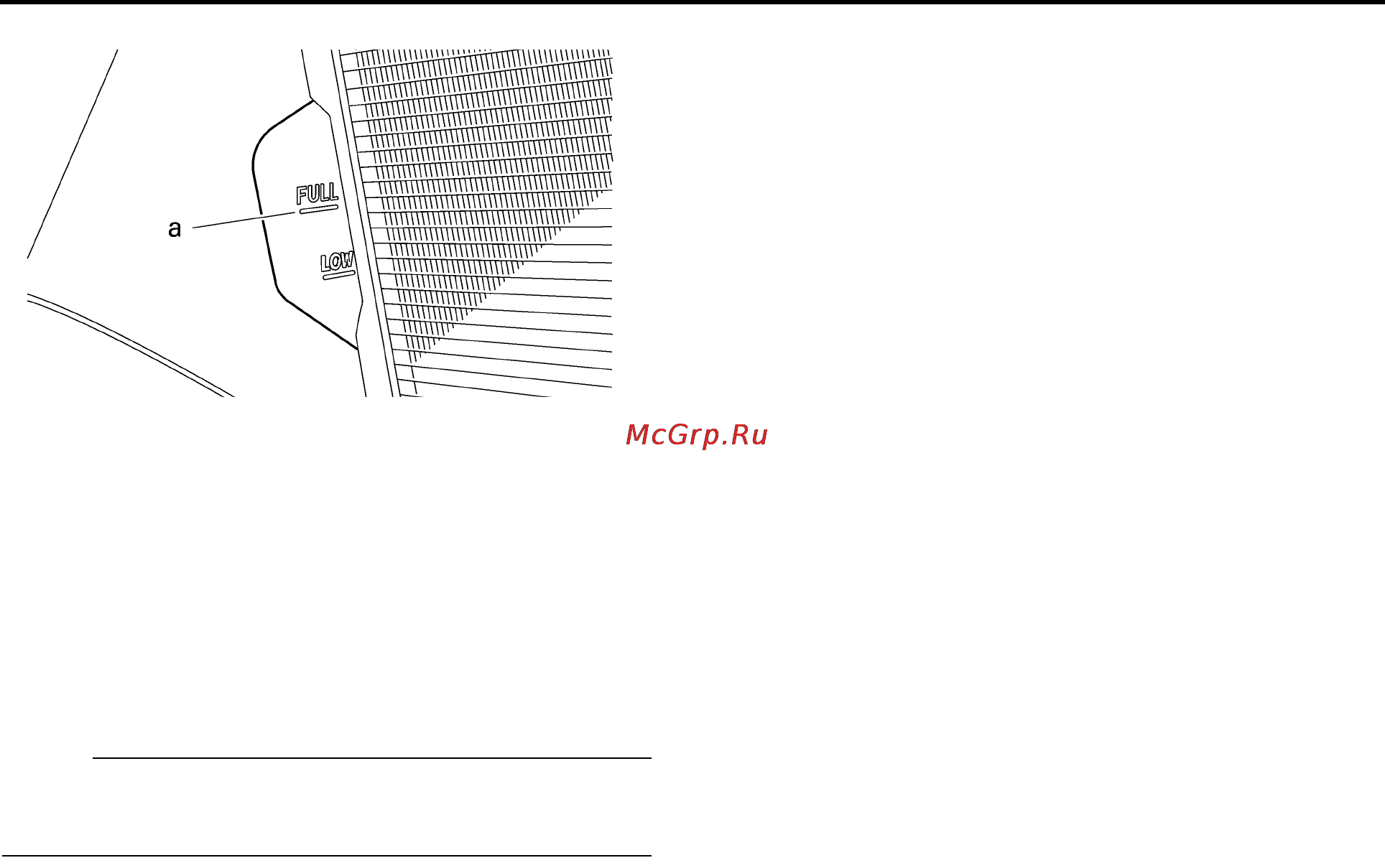

• Coolant level
Refer to "CHECKING THE COOLANT
LEVEL" on page 3-18.
NOTE:
Before checking the coolant level, wait a few
minutes until the coolant has settled.
18. Install:
• Side cowlings
• Lower cowlings
Refer to "GENERAL CHASSIS" on page 4-
1.
