SHIFT SHAFT
5-56

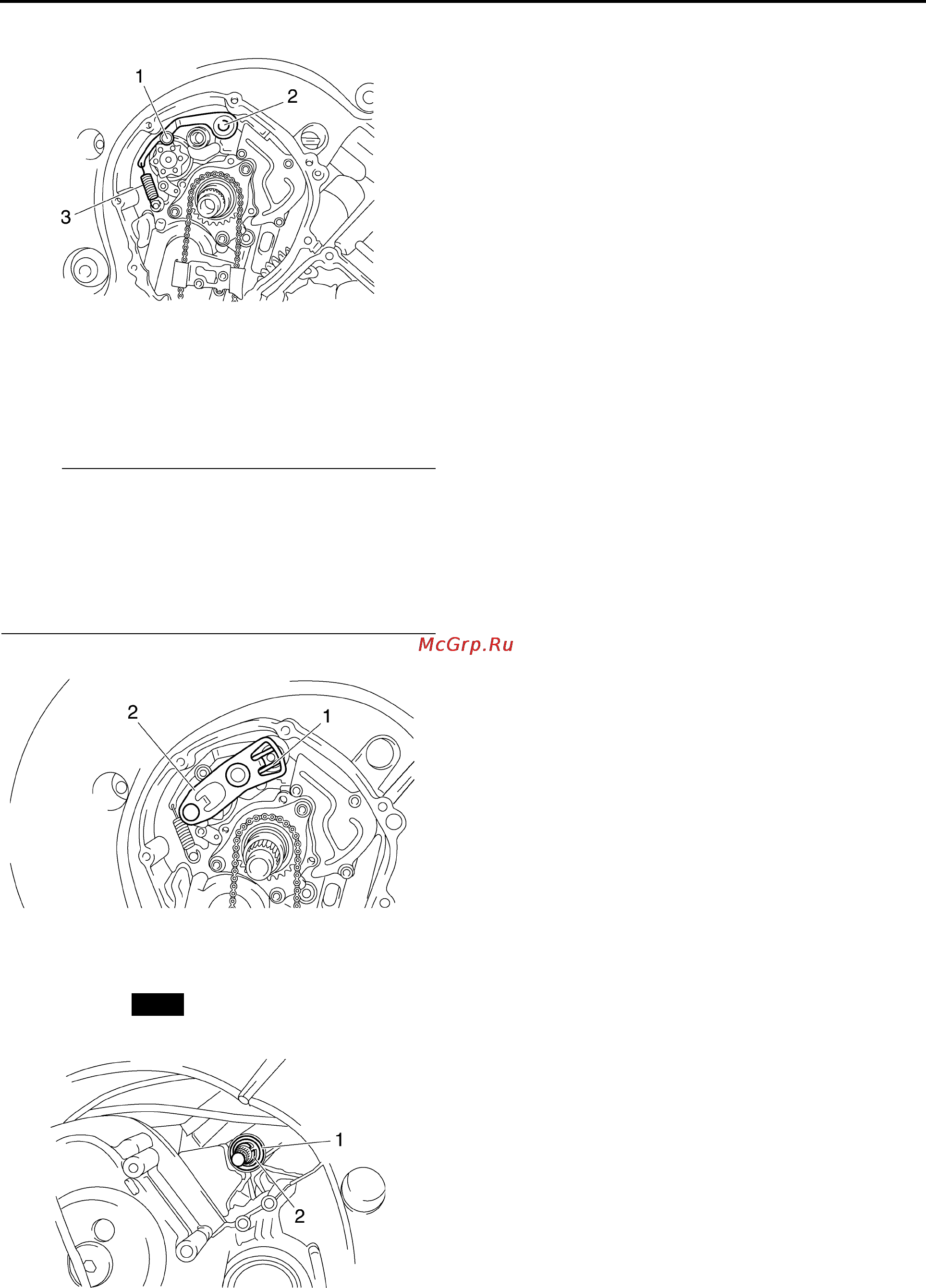

• Stopper lever spring “3”
2. Install:
• Washer
•Collar
• Shift shaft spring “1”
• Shift shaft “2”
NOTE:
• Mesh the stopper lever with the shift drum
segment assembly.
• Lubricate the oil seal lips with lithium soap
base grease.
• Install the end of the shift shaft spring onto
the shift shaft spring stopper.
3. Install:
• Washer “1”
• Circlip “2”
4. Install:
• Shift rod
• Shift arm
Refer to "ENGINE REMOVAL" on page 5-
1.
5. Install:
• Clutch assembly
Refer to "CLUTCH" on page 5-44.
New
