SPECIAL TOOLS
1-15
EAS20260
SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly. Use
only the appropriate special tools as this will help prevent damage caused by the use of inappropri-
ate tools or improvised techniques. Special tools, part numbers or both may differ depending on the
country.
When placing an order, refer to the list provided below to avoid any mistakes.
NOTE:
• For U.S.A. and Canada, use part number starting with “YM-”, “YU-”, or “ACC-”.
• For others, use part number starting with “90890-”.

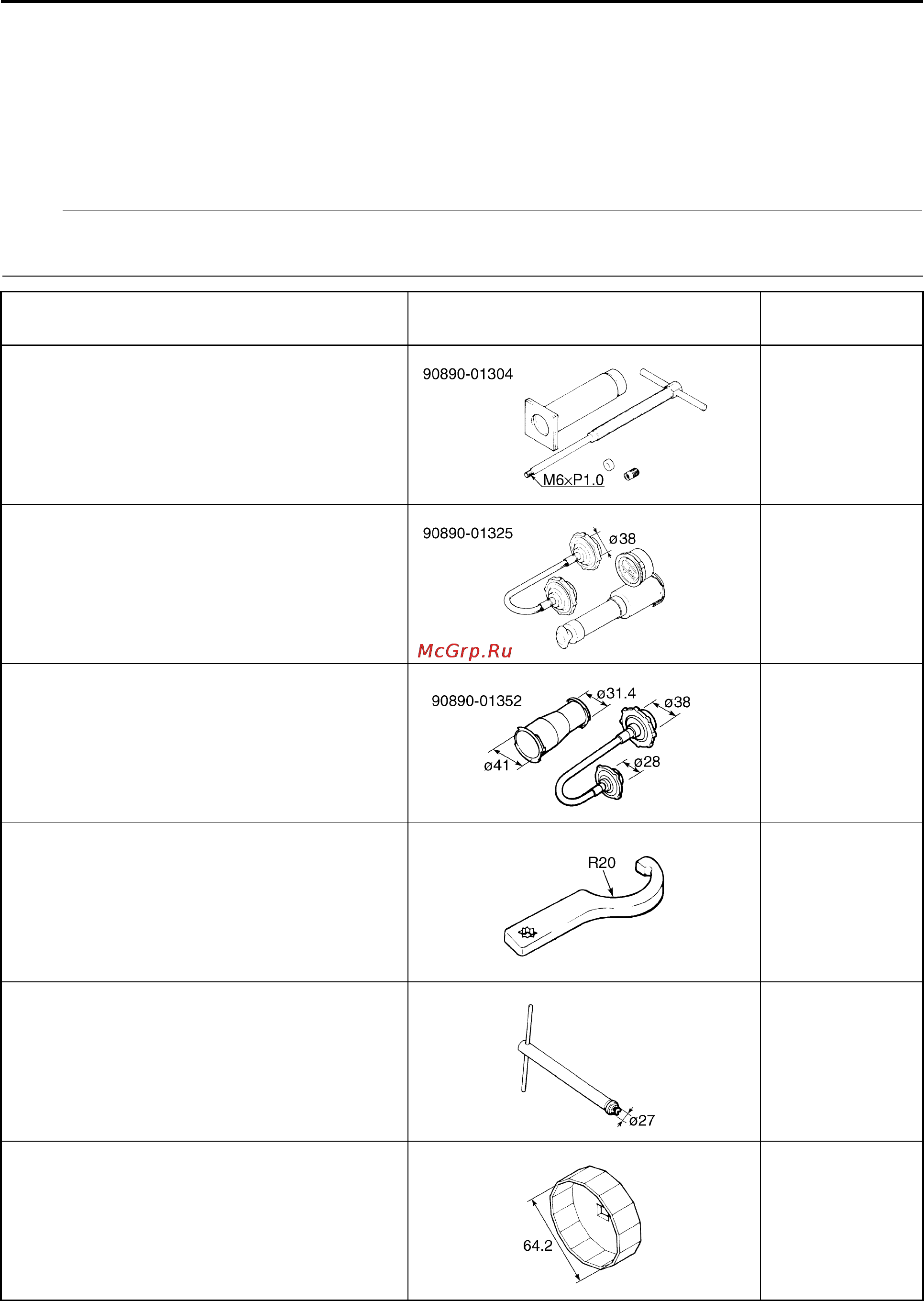

Tool name/Tool No. Illustration
Reference
pages
Piston pin puller set
90890-01304
Piston pin puller
YU-01304
5-71
Radiator cap tester
90890-01325
Radiator pressure tester
YU-24460-01
6-3
Radiator cap tester adapter
90890-01352
Radiator pressure tester adapter
YU-33984
6-3
Steering nut wrench
90890-01403
Spanner wrench
YU-33975
3-28, 4-60
Damper rod holder
90890-01423
Damping rod holder
YM-01423
4-52, 4-53
Oil filter wrench
90890-01426
YU-38411
3-12
