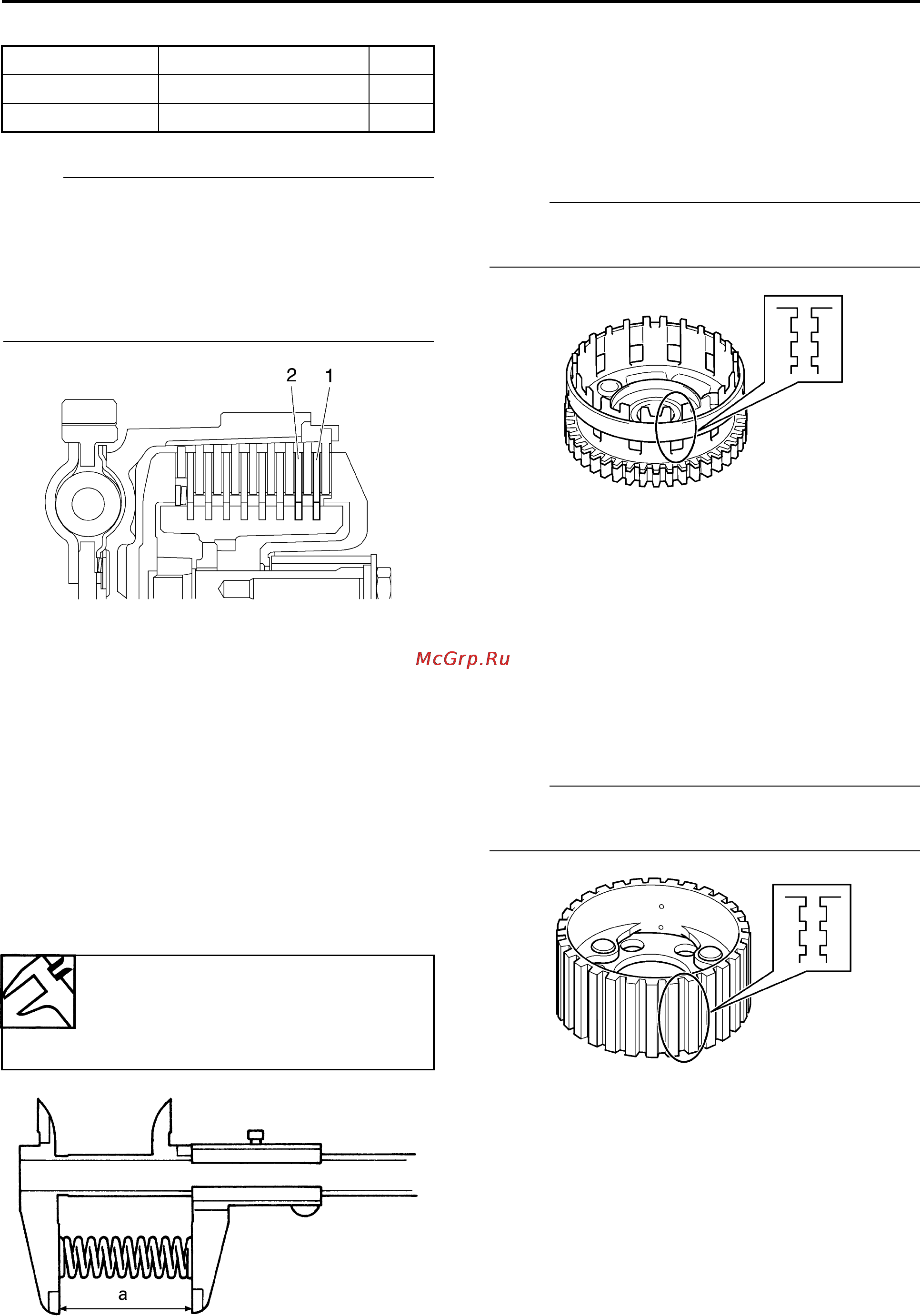

Yamaha YZF-R1 (2006) [252/426] Clutch

CLUTCH

5-49

Clutch plate “2”

NOTE:

When adjusting the clutch assembly width [by

replacing the clutch plate(s)], be sure to

replace the clutch plate “1” fast.

After replacing the clutch plate “1”, if specifica-

tions cannot be met, replace the clutch plate

“2”.

▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

EAS25140

CHECKING THE CLUTCH SPRINGS

The following procedure applies to all of the

clutch springs.

1. Check:

•Clutch spring

Damage → Replace the clutch springs as a

set.

2. Measure:

• Clutch spring free length “a”

Out of specification → Replace the clutch

springs as a set.

EAS25150

CHECKING THE CLUTCH HOUSING

1. Check:

• Clutch housing dogs

Damage/pitting/wear → Deburr the clutch

housing dogs or replace the clutch hous-

ing.

NOTE:

Pitting on the clutch housing dogs will cause

erratic clutch operation.

2. Check:

• Bearing

Damage/wear → Replace the bearing and

clutch housing.

EAS25160

CHECKING THE CLUTCH BOSS

1. Check:

• Clutch boss splines

Damage/pitting/wear → Replace the clutch

boss.

NOTE:

Pitting on the clutch boss splines will cause

erratic clutch operation.

2. Check:

•Clutch boss

Cracks/damage → Replace.

Part No. Thickness

5VY-16325-00 2.0 mm (0.079 in) STD

4B1-16325-00 2.3 mm (0.091 in)

Clutch spring free length

43.80 mm (1.72 in)

Limit

41.61 mm (1.64 in)
