CLUTCH
5-45

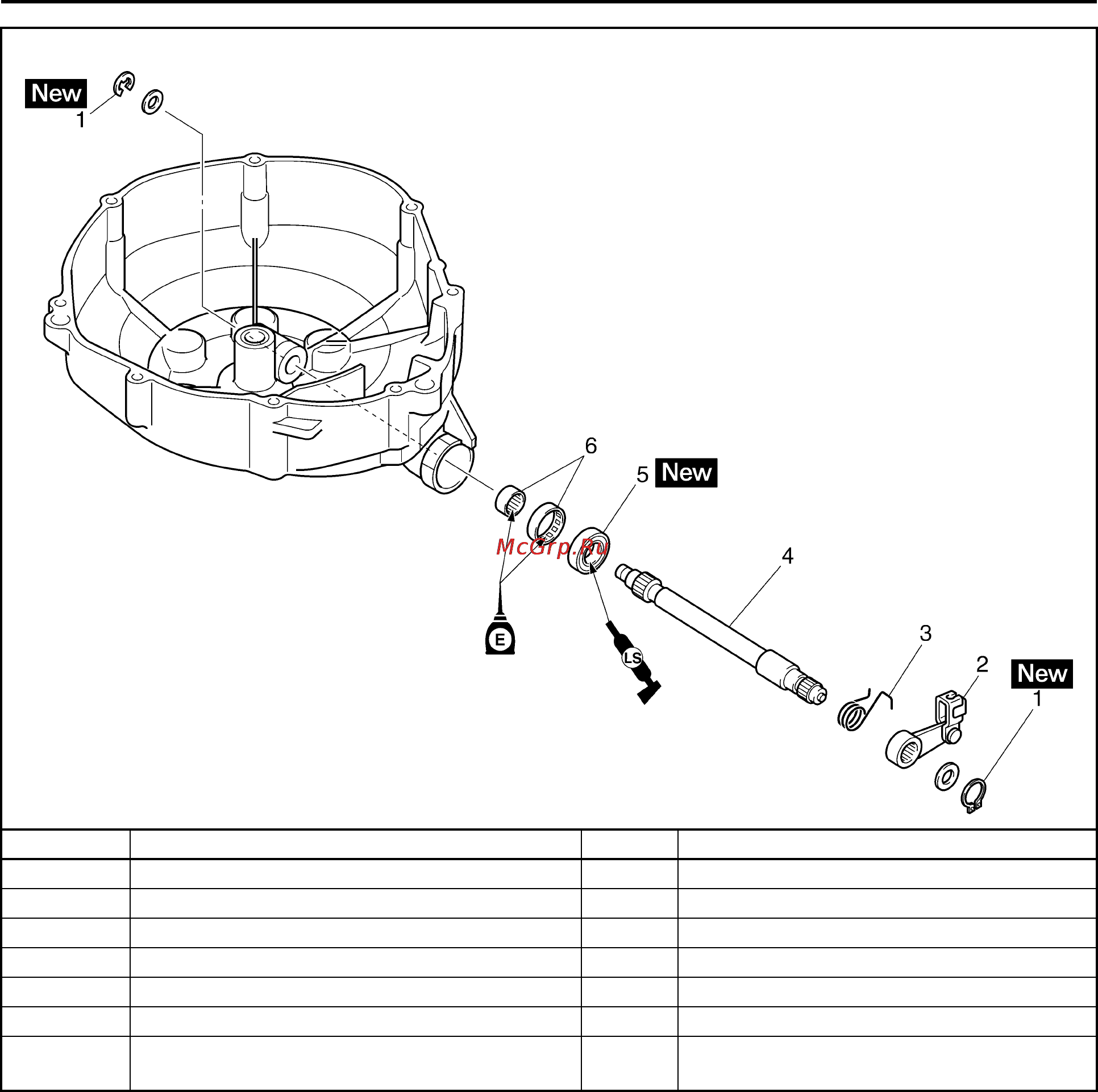

Removing the push lever shaft
Order Job/Parts to remove Q’ty Remarks
1 Circlip 2
2 Pull lever 1
3 Pull lever spring 1
4 Pull lever shaft 1
5 Oil seal 1
6 Bearing 2
For installation, reverse the removal proce-
dure.
