Yamaha YZF-R1 (2006) [172/426] Handlebars
![Yamaha YZF-R1 (2006) [172/426] Handlebars](/views2/1121350/page172/bgac.png)

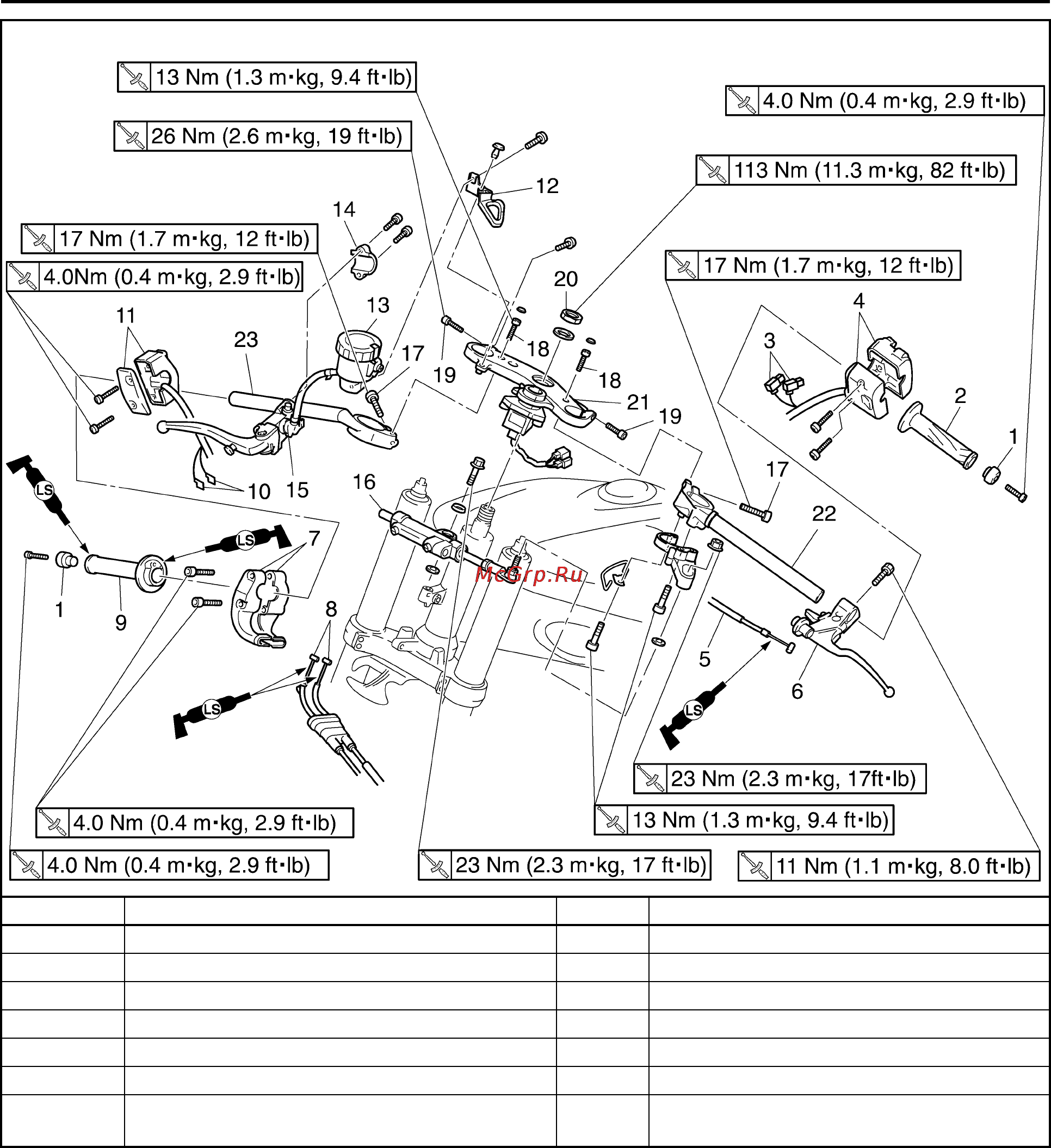

HANDLEBARS
4-45
18 Upper bracket bolt 2 Loosen.
19 Upper bracket pinch bolt 2 Loosen.
20 Steering stem nut 1 Loosen.
21 Upper bracket 1
22 Left handlebar 1
23 Right handlebar 1
For installation, reverse the removal proce-
dure.
Removing the handlebars
Order Job/Parts to remove Q’ty Remarks
