VALVES AND VALVE SPRINGS

5-21

EAS24270

VALVES AND VALVE SPRINGS

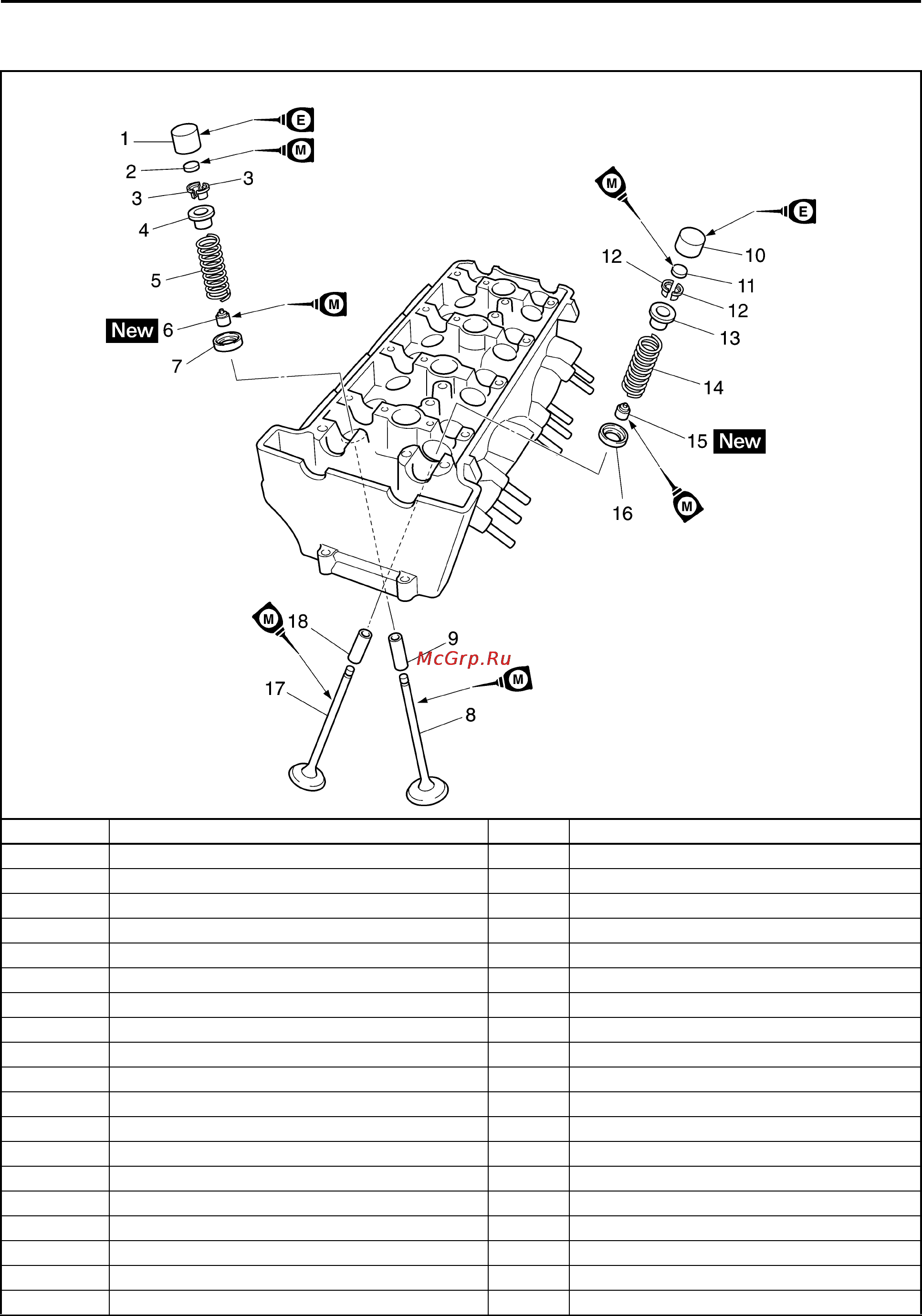

Removing the valves and valve springs

Order Job/Parts to remove Q’ty Remarks

Cylinder head Refer to "CYLINDER HEAD" on page 5-18.

1 Intake valve lifter 8

2 Intake valve pad 8

3 Intake valve cotter 16

4 Intake valve upper spring seat 8

5 Intake valve spring 8

6 Intake valve oil seal 8

7 Intake valve lower spring seat 8

8 Intake valve 8

9 Intake valve guide 8

10 Exhaust valve lifter 8

11 Exhaust valve pad 8

12 Exhaust valve cotter 16

13 Exhaust valve upper spring seat 8

14 Exhaust valve spring 8

15 Exhaust valve oil seal 8

16 Exhaust valve lower spring seat 8

17 Exhaust valve 8

18 Exhaust valve guide 8
