WATER PUMP
6-9
EAS26500
WATER PUMP

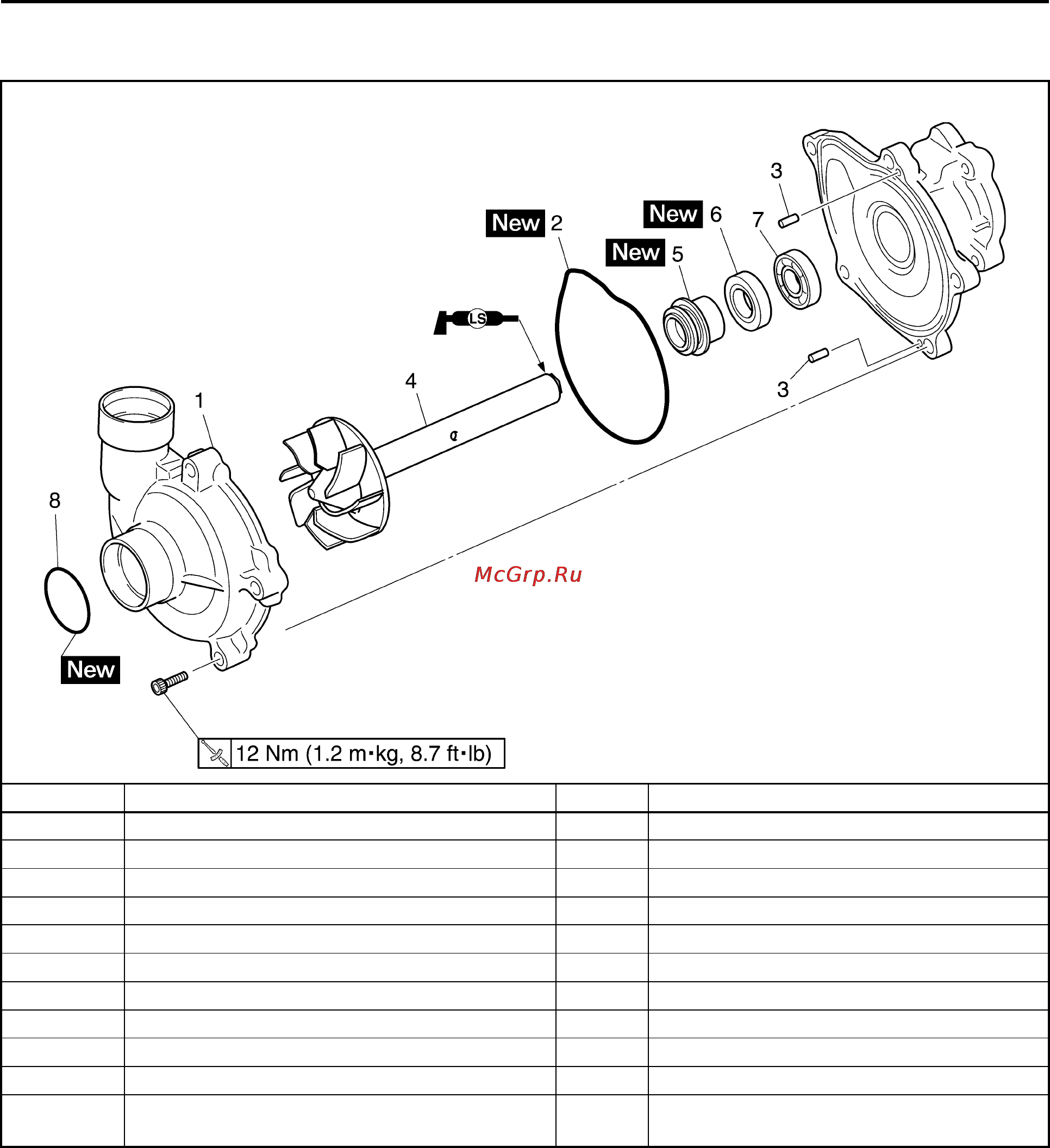

Disassembling the water pump
Order Job/Parts to remove Q’ty Remarks
Oil/water pump assembly Refer to "OIL PUMP" on page 5-57.
Oil pump rotor Refer to "OIL PUMP" on page 5-57.
1 Water pump cover 1
2O-ring 1
3Pin 2
4 Impeller shaft (along with the impeller) 1
5 Water pump seal 1
6 Oil seal 1
7 Bearing 1
8O-ring 1
For installation, reverse the removal proce-
dure.
