SHIFT SHAFT
5-54
EAS25410
SHIFT SHAFT

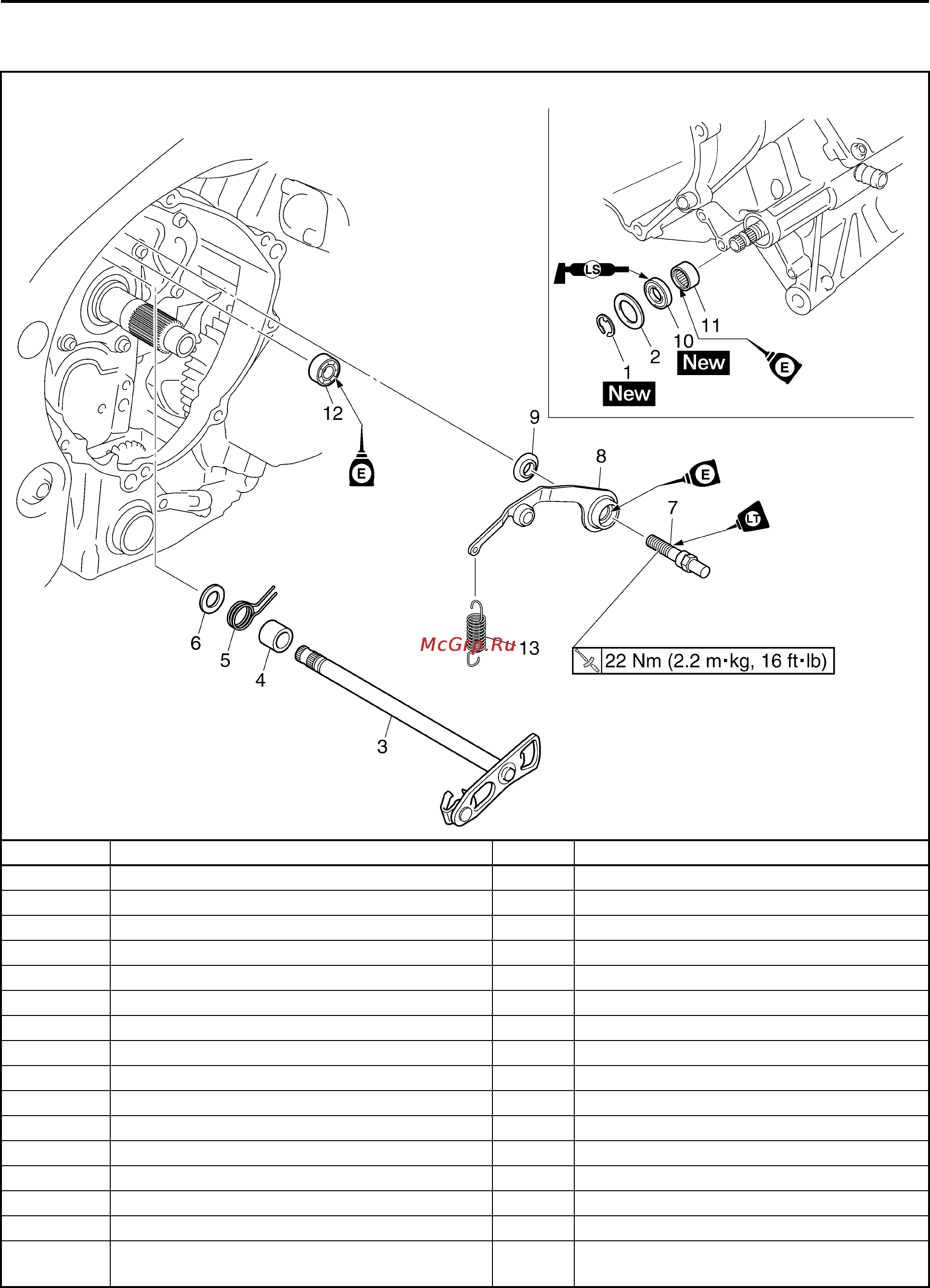

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Shift arm Refer to "ENGINE REMOVAL" on page 5-1
Clutch assembly Refer to "CLUTCH" on page 5-44.
1 Circlip 1
2 Washer 1
3 Shift shaft 1
4 Collar 1
5 Shift shaft spring 1
6 Washer 1
7 Stopper screw 1
8 Stopper lever 1
9 Washer 1
10 Oil seal 1
11 Bearing 1
12 Bearing 1
13 Stopper lever spring 1
For installation, reverse the removal proce-
dure.
