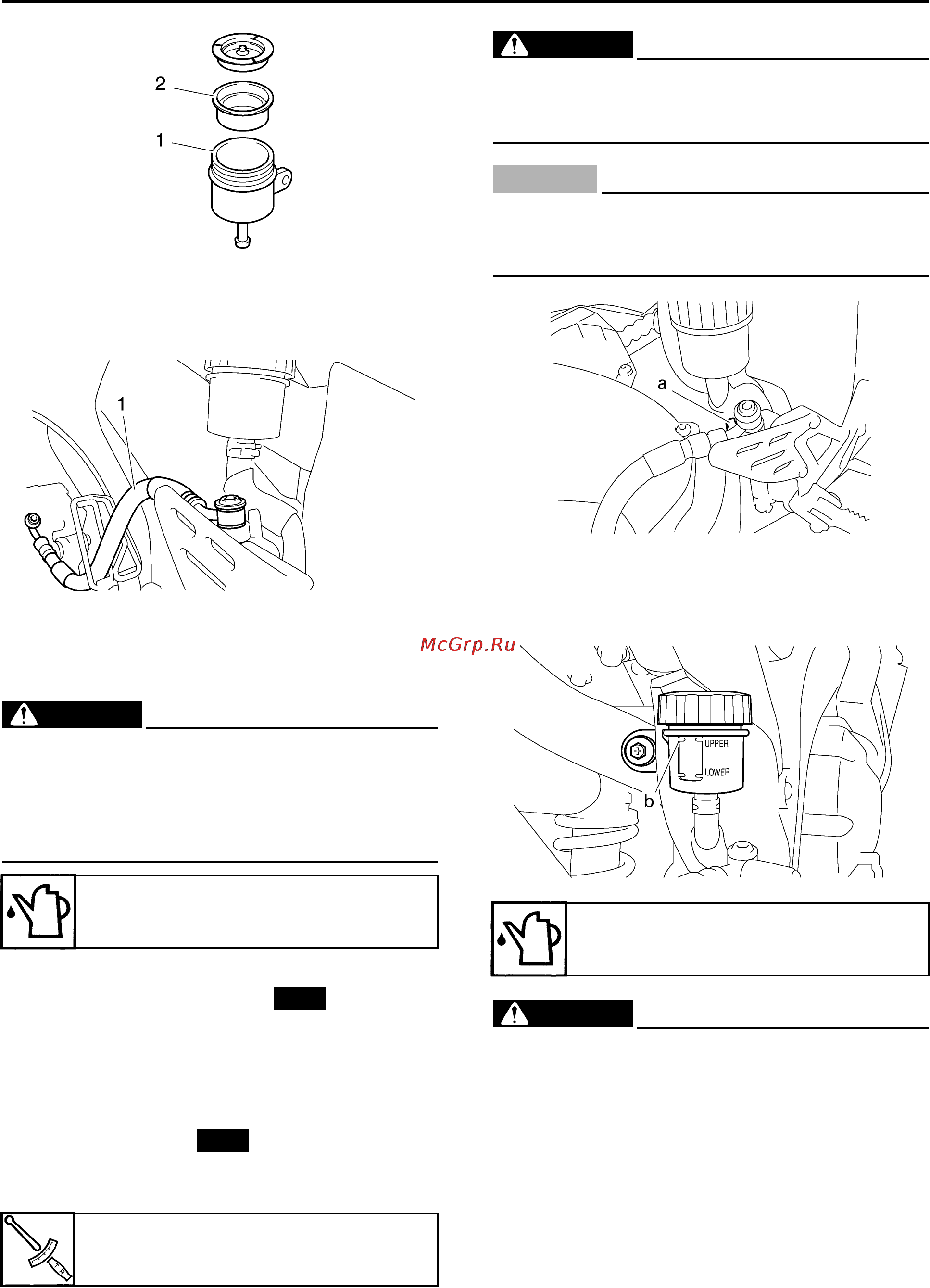

Yamaha YZF-R1 (2006) [169/426] Rear brake
![Yamaha YZF-R1 (2006) [169/426] Rear brake](/views2/1121350/page169/bga9.png)
REAR BRAKE
4-42
4. Check:
• Brake hoses “1”
Cracks/damage/wear → Replace.
EAS22730
ASSEMBLING THE REAR BRAKE MASTER
CYLINDER
WARNING
EWA13520
• Before installation, all internal brake com-
ponents should be cleaned and lubricated
with clean or new brake fluid.
• Never use solvents on internal brake
components.
1. Instal:
• Brake master cylinder kit
EAS22740
INSTALLING THE REAR BRAKE MASTER
CYLINDER
1. Install:
• Copper washers
• Brake hoses
• Union bolt
WARNING
EWA13530
Proper brake hose routing is essential to
insure safe vehicle operation. Refer to
"CABLE ROUTING" on page 2-39.
CAUTION:
ECA14160
When installing the brake hose onto the
brake master cylinder, make sure the brake
pipe touches the projection “a” as shown.
2. Fill:
• Brake fluid reservoir
(to the maximum level mark “b”)
WARNING
EWA13090
• Use only the designated brake fluid.
Other brake fluids may cause the rubber
seals to deteriorate, causing leakage and
poor brake performance.
• Refill with the same type of brake fluid
that is already in the system. Mixing brake
fluids may result in a harmful chemical
reaction, leading to poor brake perfor-
mance.
Recommended fluid
DOT 4
Rear brake hose union bolt
30 Nm (3.0 m·kg, 22 ft·lb)
New
New
Recommended fluid
DOT 4
