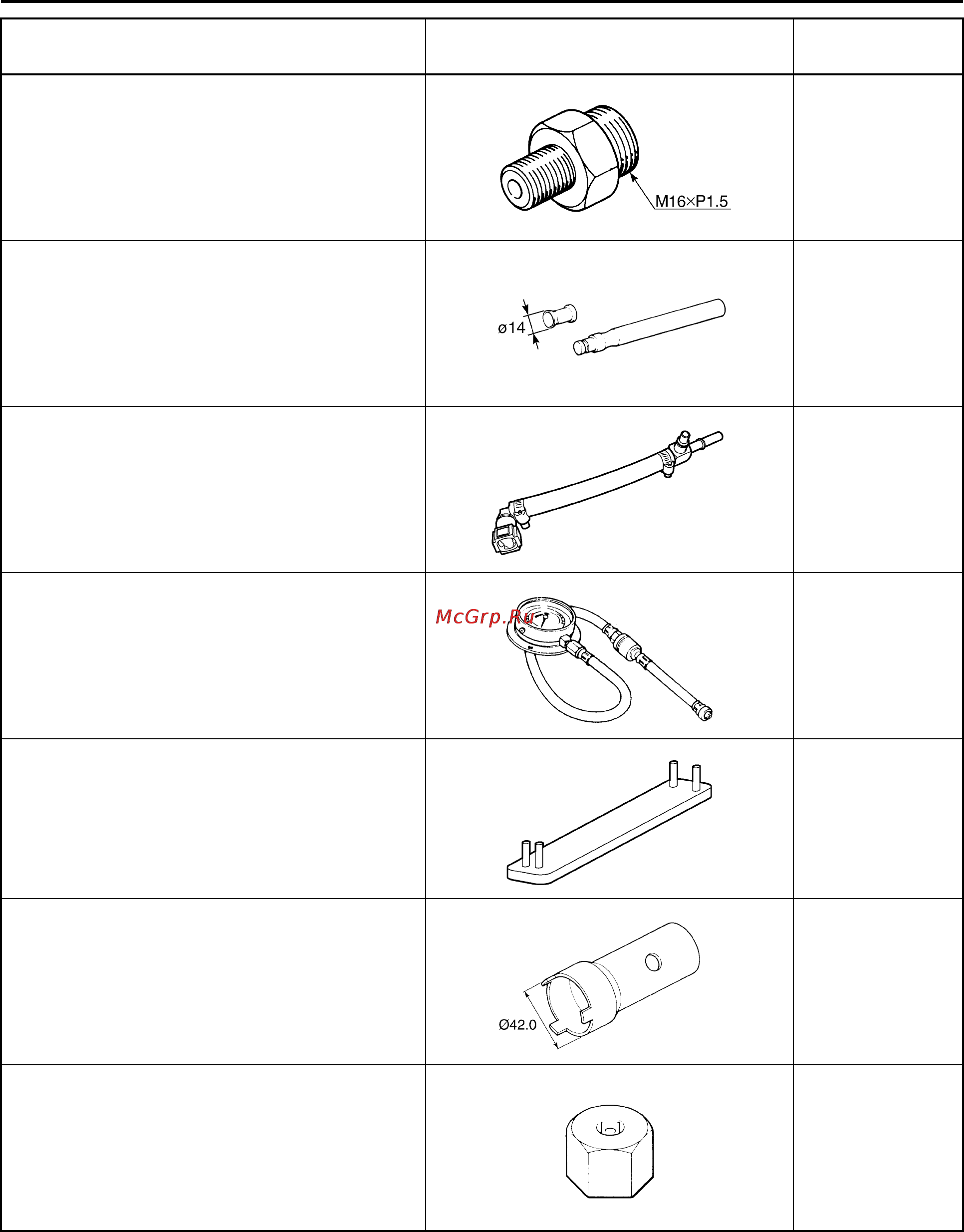

SPECIAL TOOLS
1-19
Oil pressure gauge adapter
90890-03139
3-13
Valve lapper
90890-04101
Valve lapping tool
YM-A8998
3-5
Fuel pressure adapter
90890-03176
YM-03176
7-6
Pressure gauge
90890-03153
YU-03153
3-13, 7-6
Camshaft wrench
90890-04143
YM-04143
5-11, 5-16
Ring nut wrench
90890-01507
YM-01507
4-67, 4-69
Damper rod holder (22 mm)
90890-01365
4-68, 4-69
Tool name/Tool No. Illustration
Reference
pages
