REAR BRAKE
4-32
EAS22550
REAR BRAKE

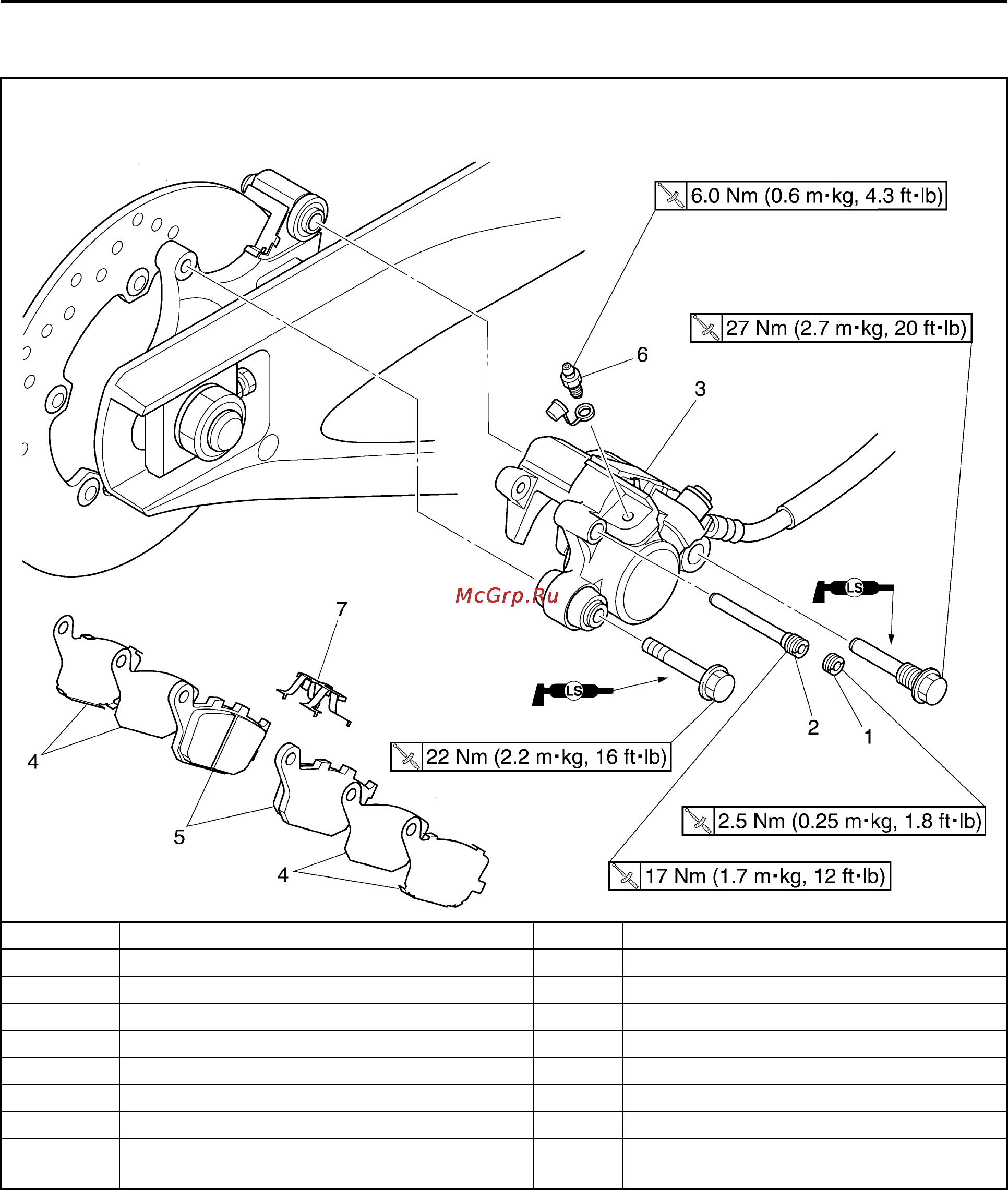

Removing the rear brake pads
Order Job/Parts to remove Q’ty Remarks
1 Screw plug 1
2 Brake pad pin 1
3 Rear brake caliper 1
4 Brake pad shim 4
5 Brake pad 2
6 Bleed screw 1
7 Brake pad spring 1
For installation, reverse the removal proce-
dure.
