CRANKSHAFT
5-69
EAS25960
CRANKSHAFT

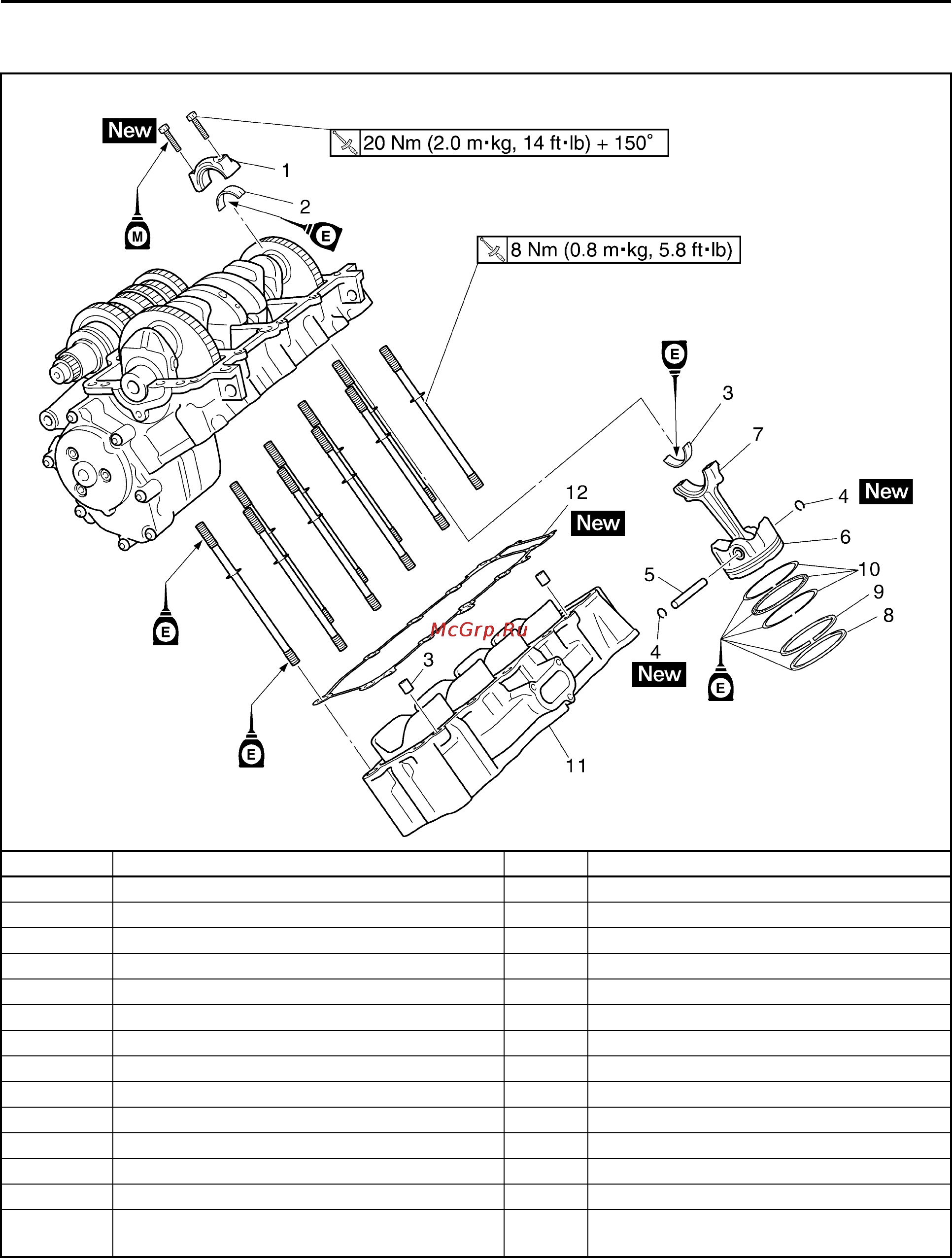

Removing the connecting rods and pistons
Order Job/Parts to remove Q’ty Remarks
Lower crankcase Refer to "CRANKCASE" on page 5-65.
1 Connecting rod cap 4
2 Big end lower bearing 4
3 Big end upper bearing 4
4 Piston pin clip 8
5 Piston pin 4
6Piston 4
7 Connecting rod 4
8 Top ring 4
9 2nd ring 4
10 Oil ring 4
11 Cylinder 1
12 Cylinder gasket 1
For installation, reverse the removal proce-
dure.
