REAR BRAKE
4-35

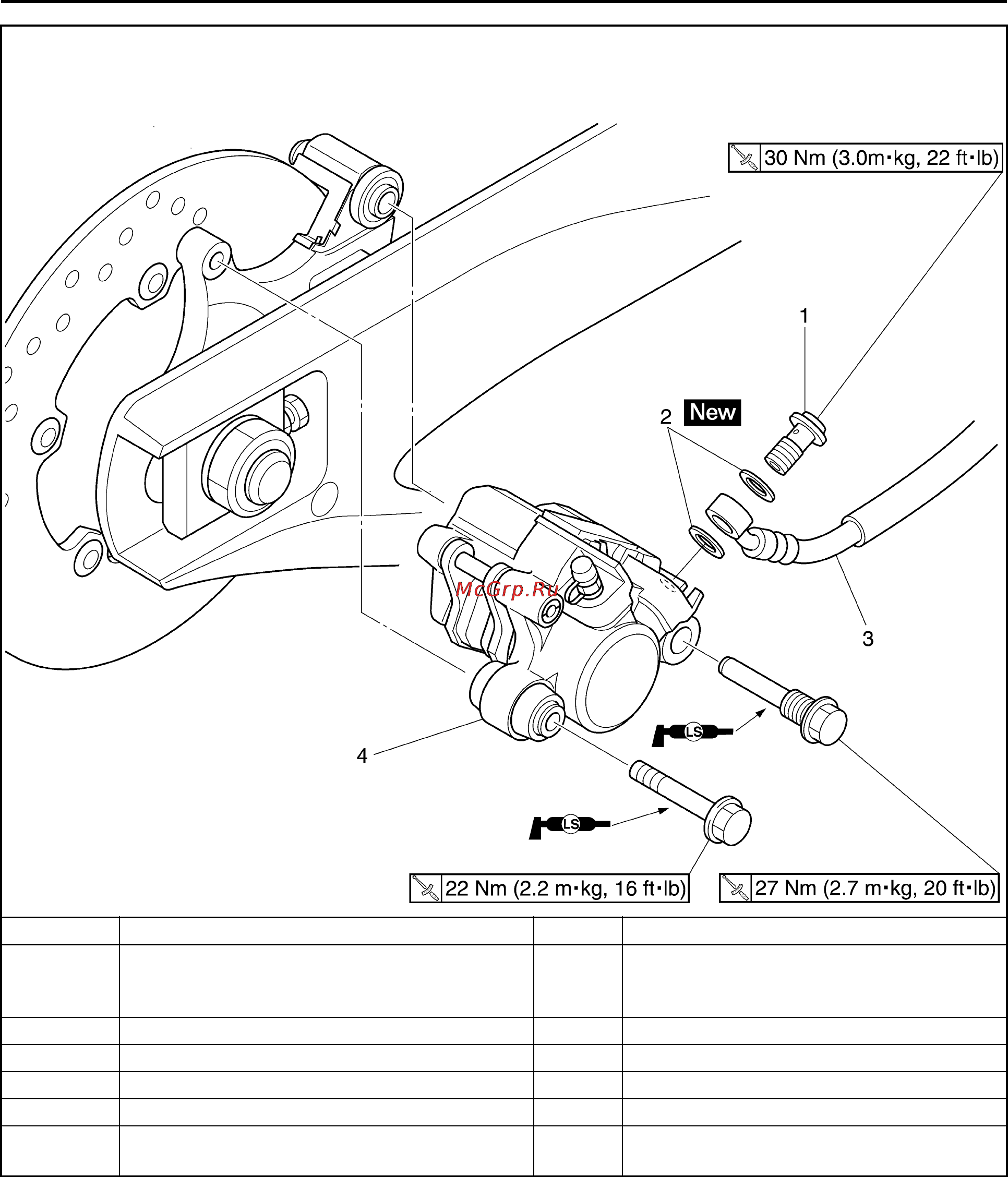

Removing the rear brake calipers
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to "BLEEDING THE HYDRAULIC
BRAKE SYSTEM" on page 3-25.
1 Union bolt 1
2 Copper washer 2
3 Brake hose 1
4 Brake caliper 1
For installation, reverse the removal proce-
dure.
