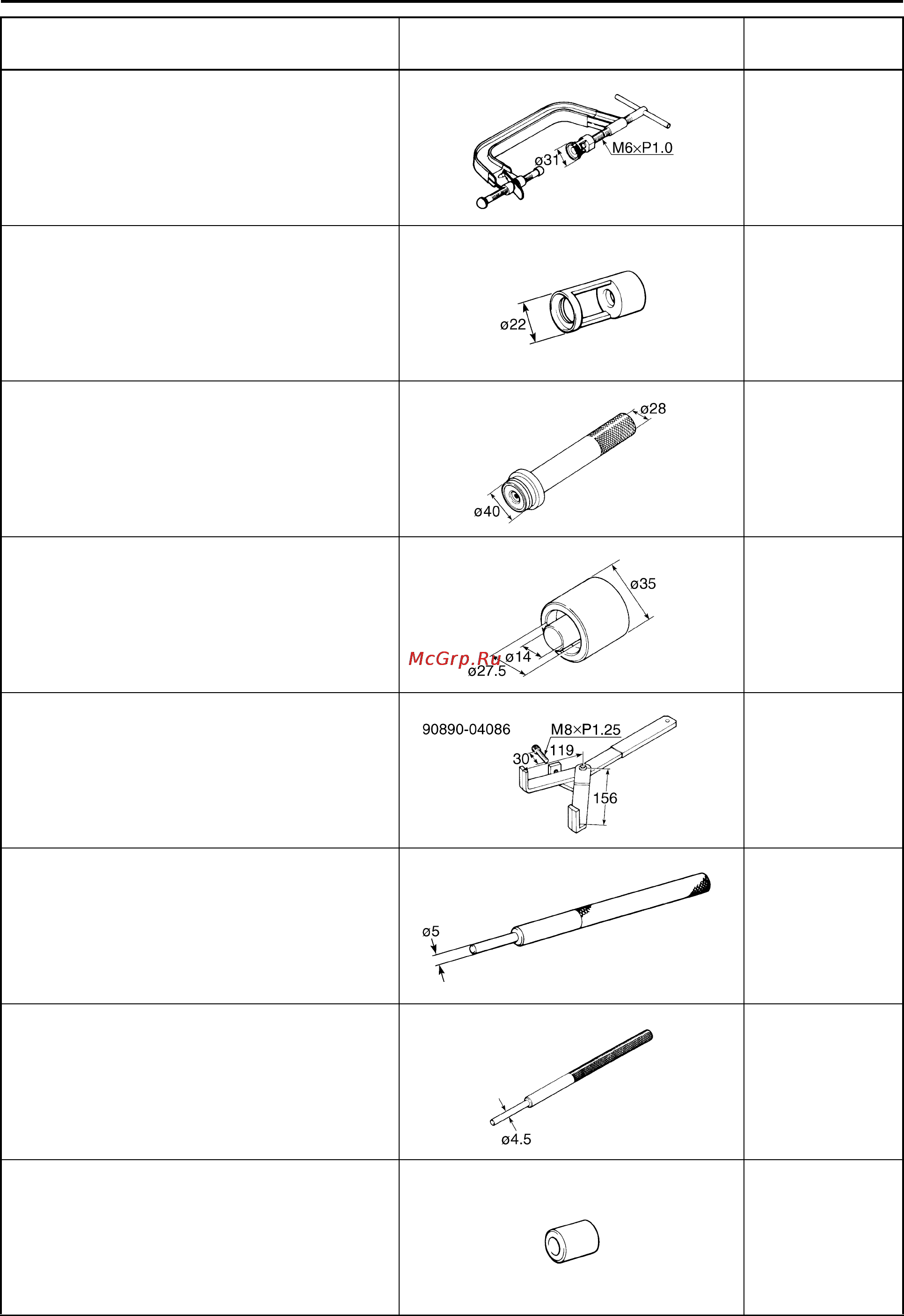

SPECIAL TOOLS
1-17
Valve spring compressor
90890-04019
YM-04019
5-23, 5-29
Valve spring compressor attachment
90890-04108
Valve spring compressor adapter (22 mm)
YM-04108
5-23, 5-29
Middle driven shaft bearing driver
90890-04058
Bearing driver (40 mm)
YM-04058
6-11
Mechanical seal installer
90890-04078
Water pump seal installer
YM-33221-A
6-11
Universal clutch holder
90890-04086
YM-91042
5-47, 5-51
Valve guide remover (ø5)
90890-04097
Valve guide remover (5.0 mm)
YM-04097
5-25
Valve guide remover (ø4.5)
90890-04116
Valve guide remover (4.5 mm)
YM-04116
5-25
Valve guide installer (ø5)
90890-04098
Valve guide installer (5.0 mm)
YM-04098
5-25
Tool name/Tool No. Illustration
Reference
pages
