CRANKCASE

5-65

EAS25540

CRANKCASE

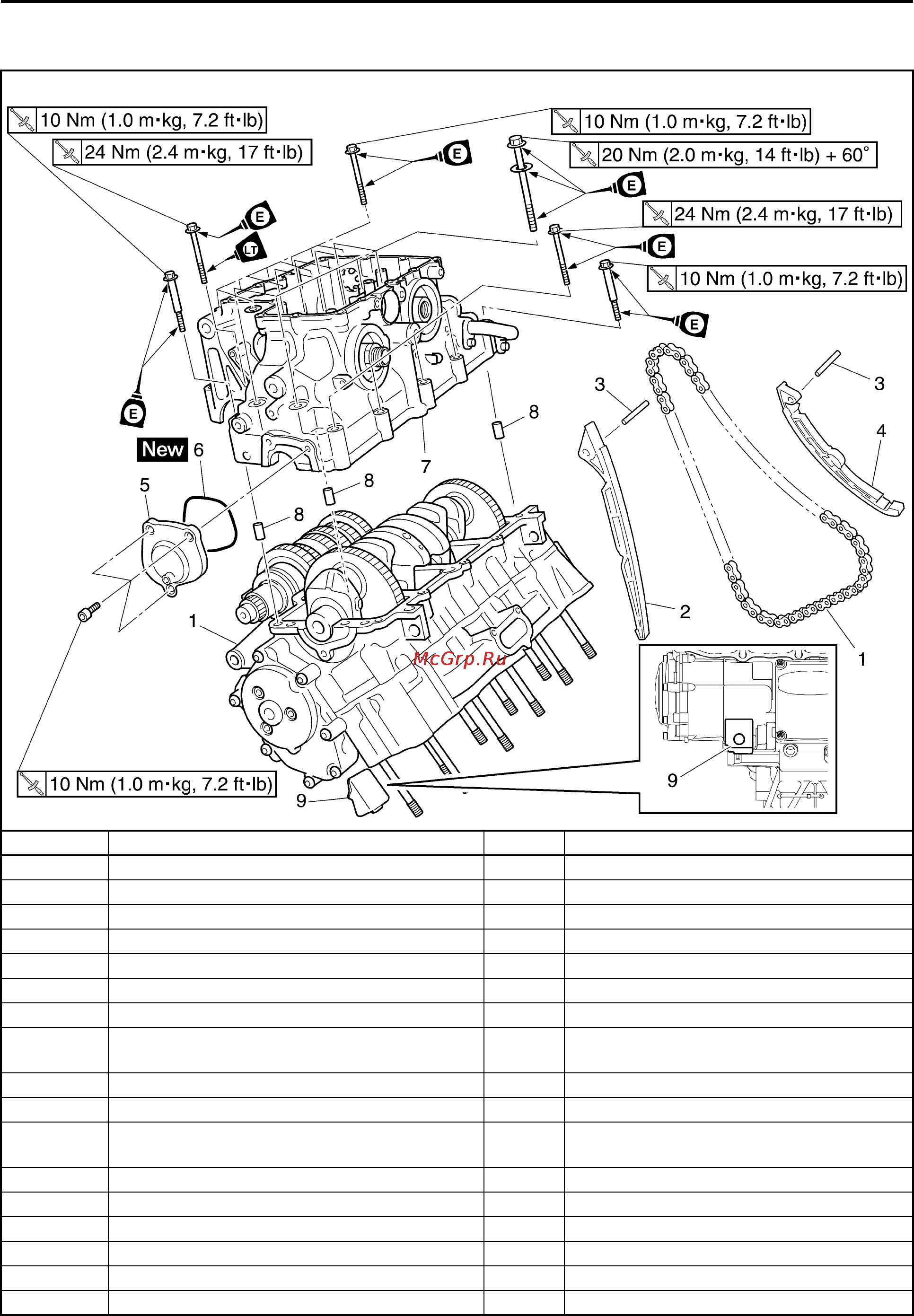

Separating the crankcase

Order Job/Parts to remove Q’ty Remarks

Air filter case Refer to "GENERAL CHASSIS" on page 4-1.

Throttle body assembly Refer to "THROTTLE BODIES" on page 7-4.

Engine Refer to "ENGINE REMOVAL" on page 5-1

Cylinder head Refer to "CYLINDER HEAD" on page 5-18.

Generator Refer to "GENERATOR" on page 5-30.

Starter clutch Refer to "STARTER CLUTCH" on page 5-34.

Shift shaft Refer to "SHIFT SHAFT" on page 5-54.

Crankshaft position sensor

Refer to "CRANKSHAFT POSITION SEN-

SOR" on page 5-37.

Clutch Refer to "CLUTCH" on page 5-44.

Oil pump Refer to "OIL PUMP" on page 5-57.

Starter motor

Refer to "ELECTRIC STARTER" on page 5-

39.

1 Timing chain 1

2 Timing chain guide (intake side) 1

3Pin 2

4 Timing chain guide (exhaust side) 1

5 Left side cover 1

6O-ring 1
