FRONT FORK
4-50

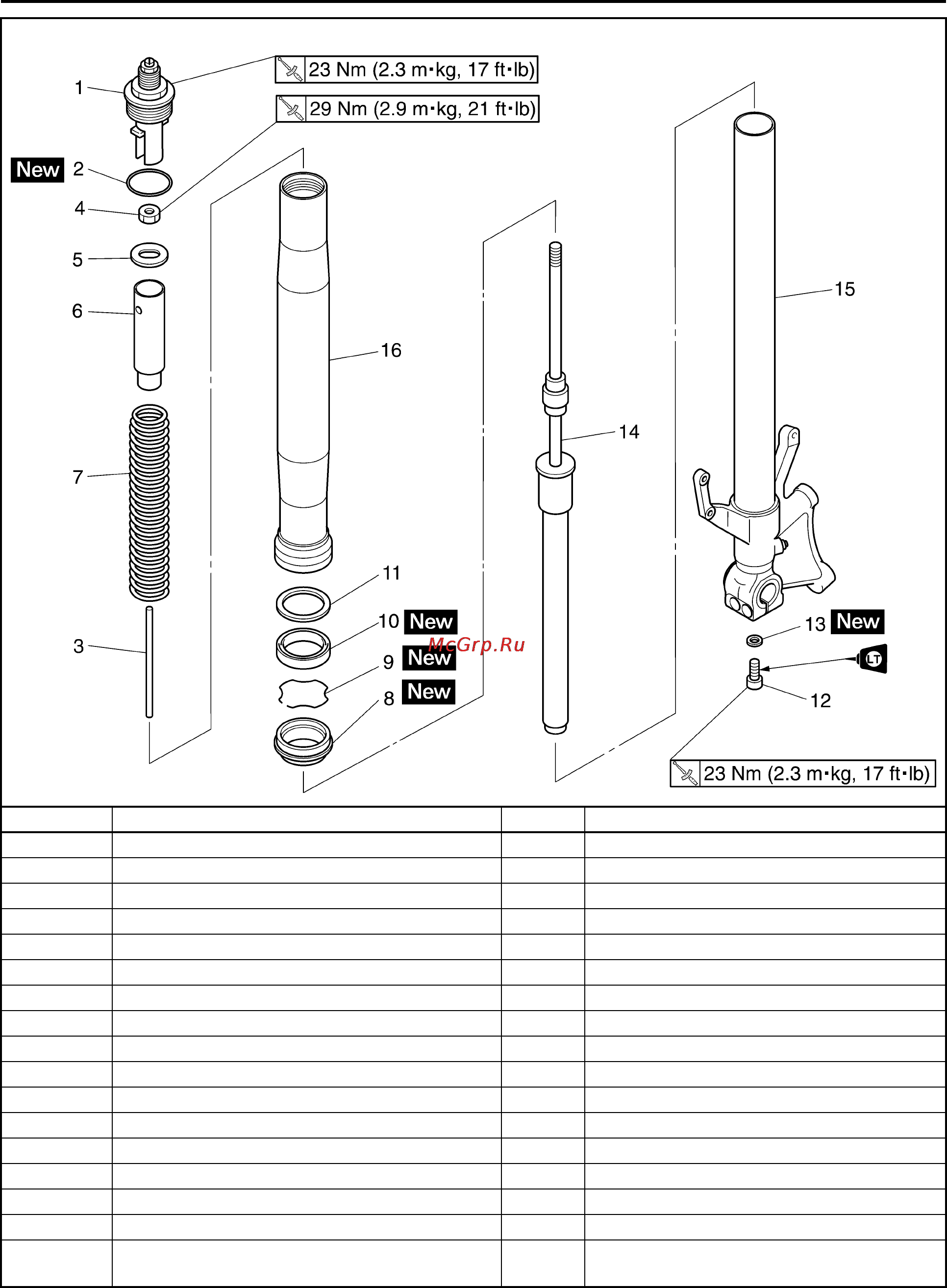

Disassembling the front fork legs
Order Job/Parts to remove Q’ty Remarks
1 Cap bolt 1
2O-ring 1
3 Damper adjusting rod 1
4 Damper adjusting rod locknut 1
5 Washer 1
6Spacer 1
7 Fork spring 1
8 Dust seal 1
9 Oil seal clip 1
10 Oil seal 1
11 Washer 1
12 Damper rod assembly bolt 1
13 Copper washer 1
14 Damper rod assembly 1
15 Inner tube 1
16 Outer tube 1
For assembly, reverse the disassembly pro-
cedure.
