ENGINE
3-15

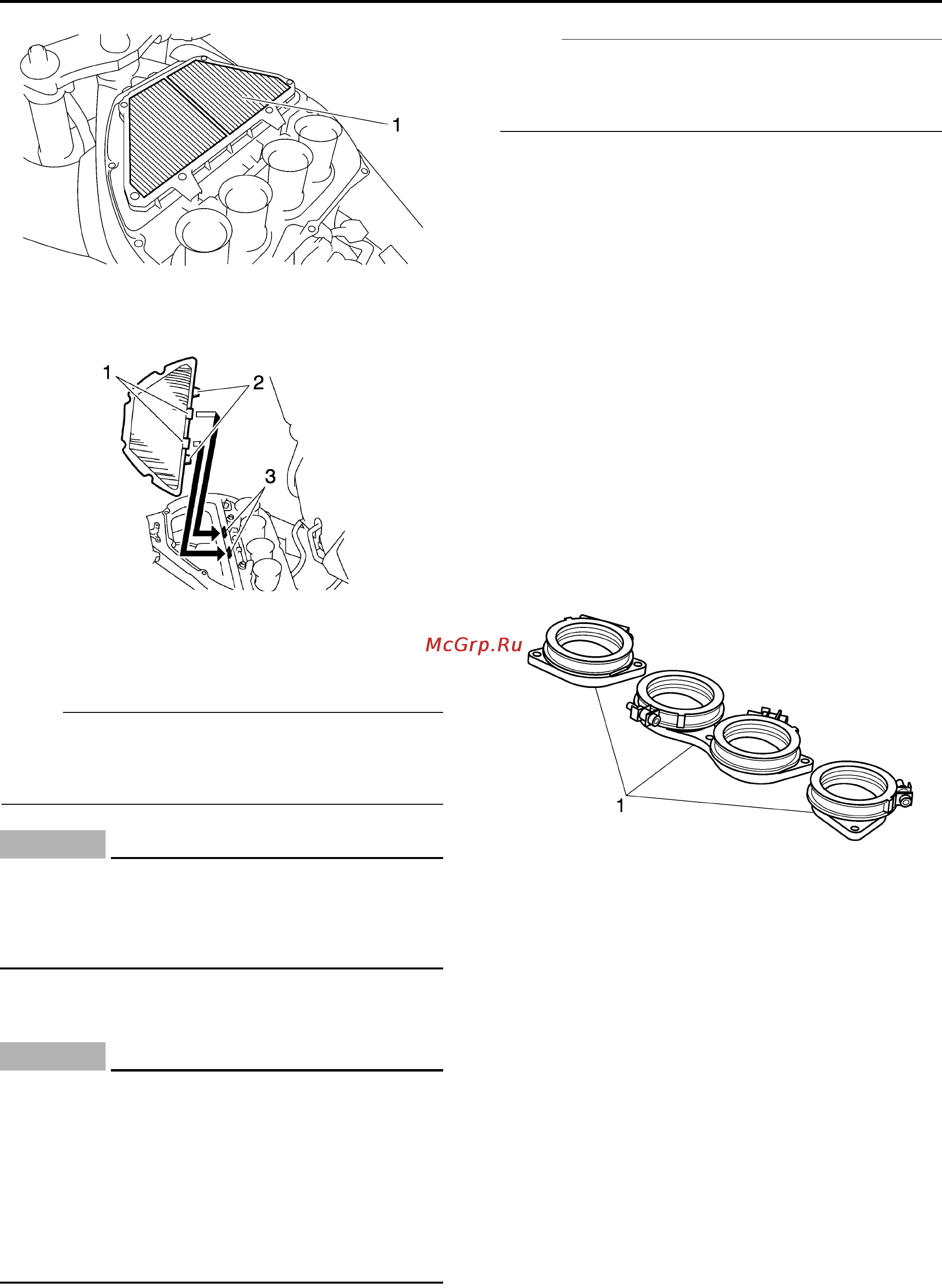

4. Install:
• Air filter element
NOTE:
Install a new air filter element by fitting the pro-
jections 1 on the element into the slots in the
air filter case.
CAUTION:
ECA4C81021
• Make sure that the air filter element is
properly seated in the air filter case.
• Pay attention to handling of the products
so that the projections is not deformed.
5. Install:
• Air filter case cover
CAUTION:
ECA4C81015
Never operate the engine without the air fil-
ter element installed. Unfiltered air will
cause rapid wear of engine parts and may
damage the engine. Operating the engine
without the air filter element will also affect
throttle bodies synchronization, leading to
poor engine performance and possible
overheating.
NOTE:
When installing the air filter element into the air
filter case cover, make sure that the sealing
surfaces are aligned to prevent any air leaks.
6. Install:
•Fuel tank
• Fuel tank side covers
Refer to "FUEL TANK" on page 7-1.
• Rider seat
Refer to "GENERAL CHASSIS" on page 4-
1.
EAS21010
CHECKING THE THROTTLE BODY JOINTS
The following procedure applies to all of the
throttle body joints and intake manifolds.
1. Remove:
• Throttle bodies
Refer to "THROTTLE BODIES" on page 7-
4.
2. Check:
• Throttle body joints “1”
Cracks/damage → Replace.
3. Install:
• Throttle bodies
Refer to "THROTTLE BODIES" on page 7-
4.
EAS21030
CHECKING THE FUEL LINE
The following procedure applies to all of the
fuel, vacuum and breather hoses.
1. Remove:
• Rider seat
Refer to "GENERAL CHASSIS" on page 4-
1.
• Fuel tank side covers
•Fuel tank
Refer to "FUEL TANK" on page 7-1.
2. Check:
•Fuel hose “1”
• Breather hose “2”
Cracks/damage → Replace.
Loose connection → Connect properly.
1. Projection 1
2. Projection 2
3. Slot
