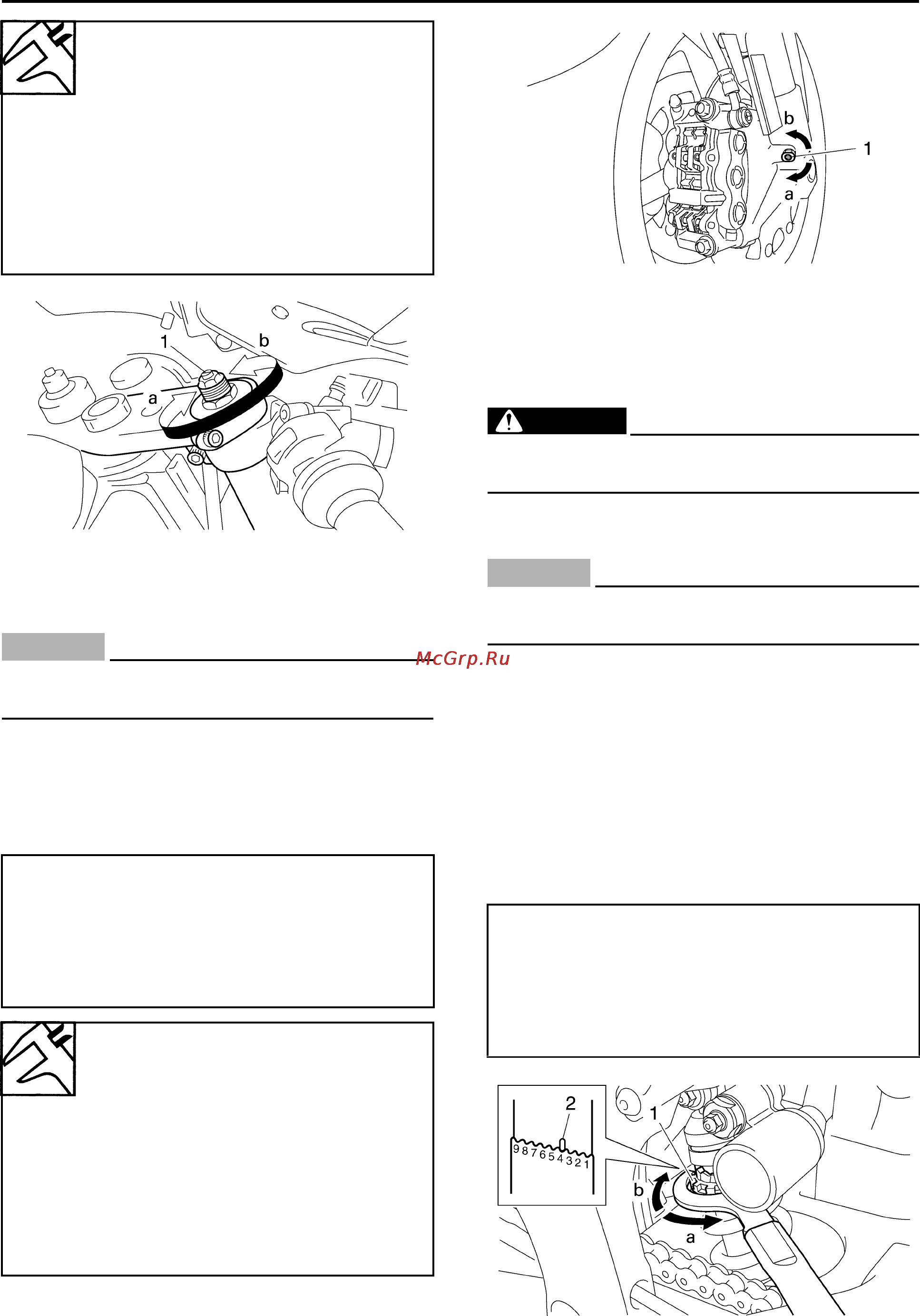

CHASSIS
3-31
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Compression damping
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Compression damping
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting screw “1” in direction “a”
or “b”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS21610
ADJUSTING THE REAR SHOCK
ABSORBER ASSEMBLY
WARNING
EWA13120
Securely support the vehicle so that there
is no danger of it falling over.
Spring preload
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Spring preload
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Adjust the spring preload with the special
wrench and extension bar included in the
owner’s tool kit.
b. Turn the adjusting ring “1” in direction “a” or
“b”.
c. Align the desired position on the adjusting
ring with the stopper “2”.
Rebound damping adjust posi-
tions
Minimum
26 click(s) out*
Standard
10 click(s) out*
Maximum
1 click(s) out*
* With the adjusting screw fully turned in.
Direction “a”
Compression damping is increased
(suspension is harder).
Direction “b”
Compression damping is decreased
(suspension is softer).
Compression damping adjust
points
Minimum
25 click(s) out*
Standard
10 click(s) out*
Maximum
1 click(s) out*
* With the adjusting screw fully turned in.
Direction “a”
Spring preload is increased (suspension
is harder).
Direction “b”
Spring preload is decreased (suspension
is softer).
