FEATURES
1-10
Air intake temperature display
The air intake temperature display indicates
the temperature of the air drawn into the air fil-
ter case. Push the “RESET” button to switch
the coolant temperature display to the air
intake temperature display.
NOTE:
• Even if the air intake temperature is set to be
displayed, the coolant temperature warning
light comes on when the engine overheats.
• When the key is turned to “ON”, the coolant
temperature is automatically displayed, even
if the air intake temperature was displayed
prior to turning the key to “OFF”.
• When the air intake temperature display is
selected, “A” is displayed before the temper-
ature.
Self-diagnosis device
This model is equipped with a self-diagnosis
device for various electrical circuits.
If any of those circuits are defective, the engine
trouble warning light will come on, and then the
display will indicate a two-digit error code.
Display brightness and shift timing indica-
tor light control mode
This mode cycles through five control func-
tions, allowing you to make the following set-
tings in the order listed below.
Display brightness:
• This function allows you to adjust the bright-
ness of the displays and tachometer to suit
the outside lighting conditions.
• Shift timing indicator light activity:
This function allows you to choose whether
or not the indicator light should be activated
and whether it should flash or stay on when
activated.
• Shift timing indicator light activation:
This function allows you to select the engine
speed at which the indicator light will be acti-
vated.
• Shift timing indicator light deactivation:
This function allows you to select the engine
speed at which the indicator light will be
deactivated.
• Shift timing indicator light brightness:
This function allows you to adjust the bright-
ness of the indicator light to suit your prefer-
ence.
NOTE:
In this mode, the right display shows the cur-
rent setting for each function (except the shift
timing indicator light activity function).
To adjust the brightness of the multifunction
meter displays and tachometer
1. Turn the key to “OFF”.
2. Push and hold the “SELECT” button.
3. Turn the key to “ON”, and then release the
“SELECT” button after five seconds.

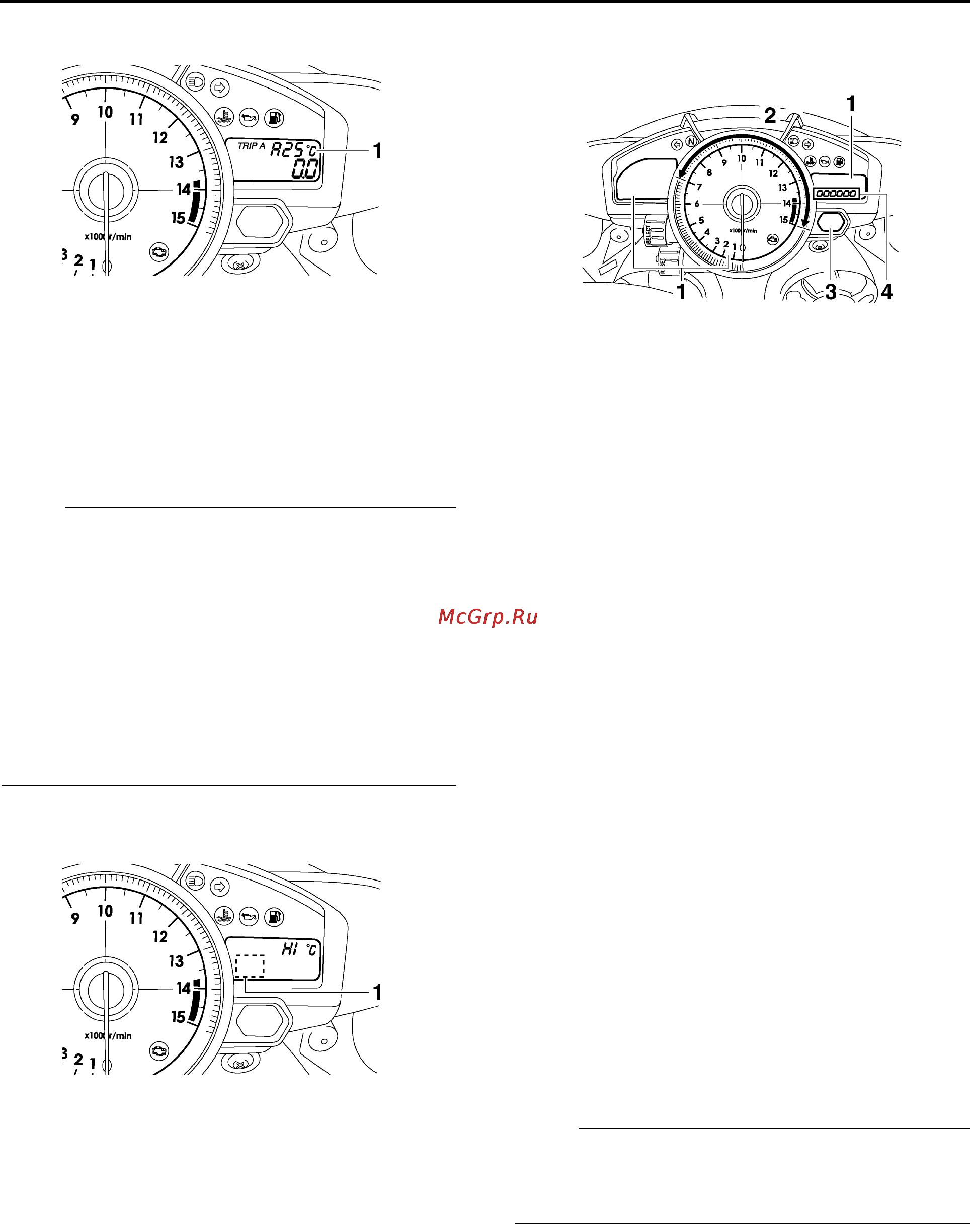

1. Air intake temperature display
1. Error code display
1. Display brightness
2. Shift timing indicator light activation/deacti-
vation
3. Shift timing indicator light
4. Brightness level
