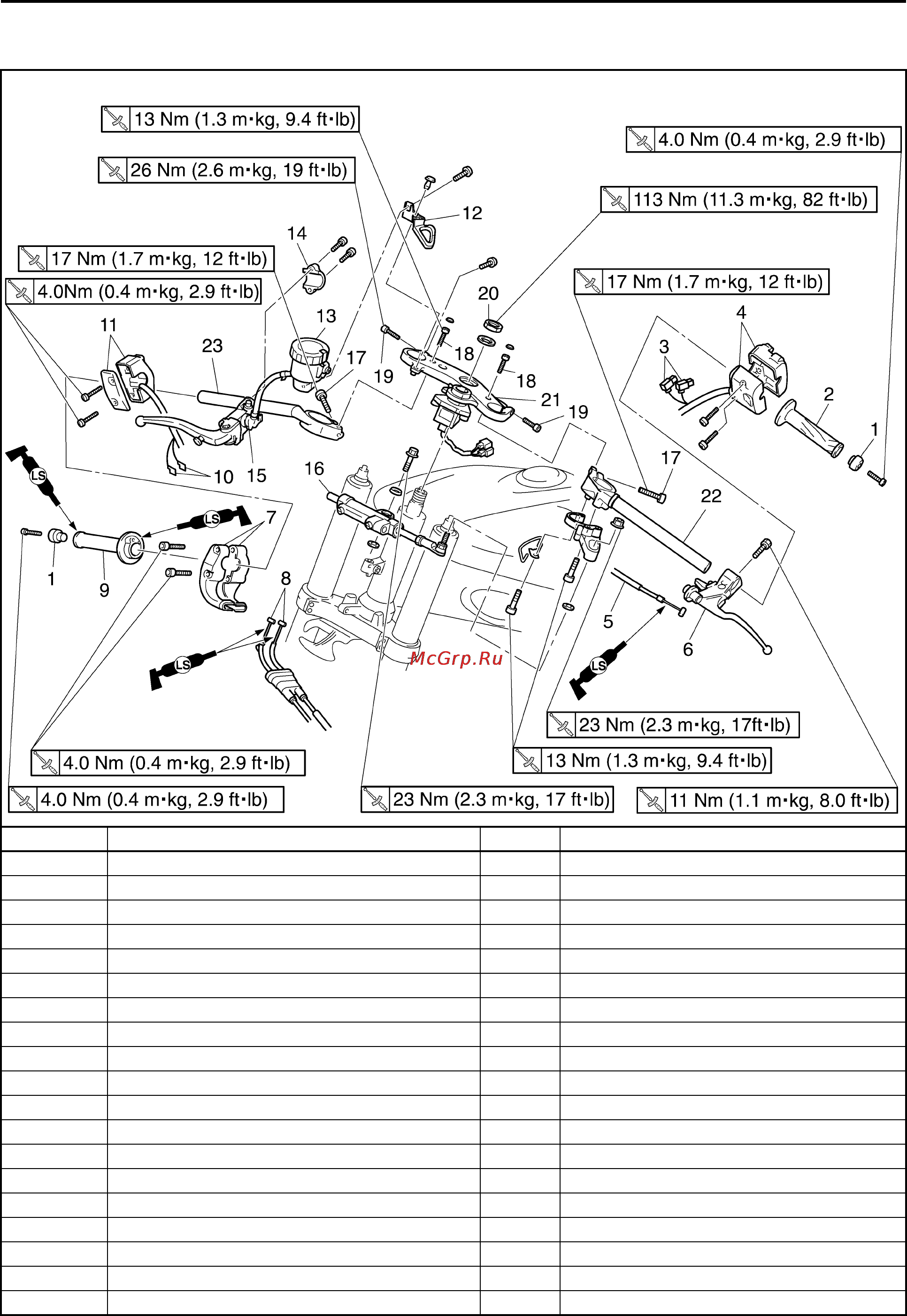

HANDLEBARS
4-44
EAS22850
HANDLEBARS
Removing the handlebars
Order Job/Parts to remove Q’ty Remarks
Front cowling Refer to "GENERAL CHASSIS" on page 4-1.
Side cowling Refer to "GENERAL CHASSIS" on page 4-1.
1 Grip end 2
2 Handlebar grip 1
3 Clutch switch connector 2 Disconnect.
4 Left handlebar switch 1
5Clutch cable 1
6 Clutch lever holder 1
7 Throttle cable housing 1
8 Throttle cable 2
9 Throttle grip 1
10 Front brake light switch lead connector 2 Disconnect.
11 Right handlebar switch 1
12 Clutch cable holder 1
13 Brake fluid reservoir tank 1
14 Brake master cylinder holder 1
15 Brake master cylinder 1
16 Steering damper 1
17 Handlebar pinch bolt 2 Loosen.
