OIL PUMP
5-59

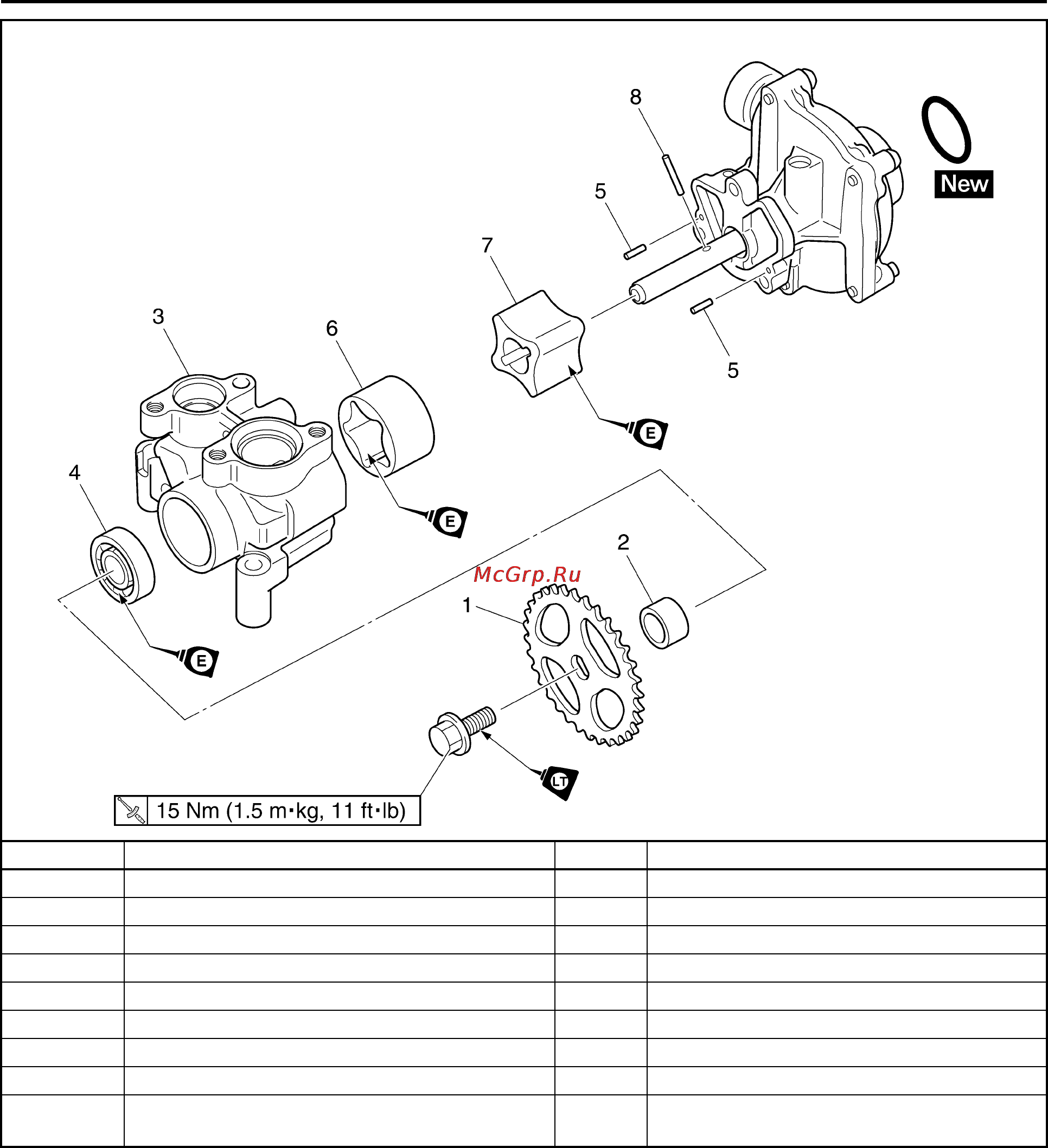

Disassembling the oil pump
Order Job/Parts to remove Q’ty Remarks
1 Oil/water pump driven sprocket 1
2 Collar 1
3 Oil pump housing 1
4 Bearing 1
5Pin 2
6 Oil pump outer rotor 1
7 Oil pump inner rotor 1
8Pin 1
For assembly, reverse the disassembly pro-
cedure.
