ELECTRICAL COMPONENTS
8-81
Relay unit (fuel pump relay)
Headlight relay (on/off)
Headlight relay (dimmer)
Radiator fan motor relay
EAS4C81019
CHECKING THE TURN SIGNAL RELAY
1. Check:
• Turn signal relay input voltage
Out of specification → The wiring circuit
from the main switch to the turn signal relay
coupler is faulty and must be repaired.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

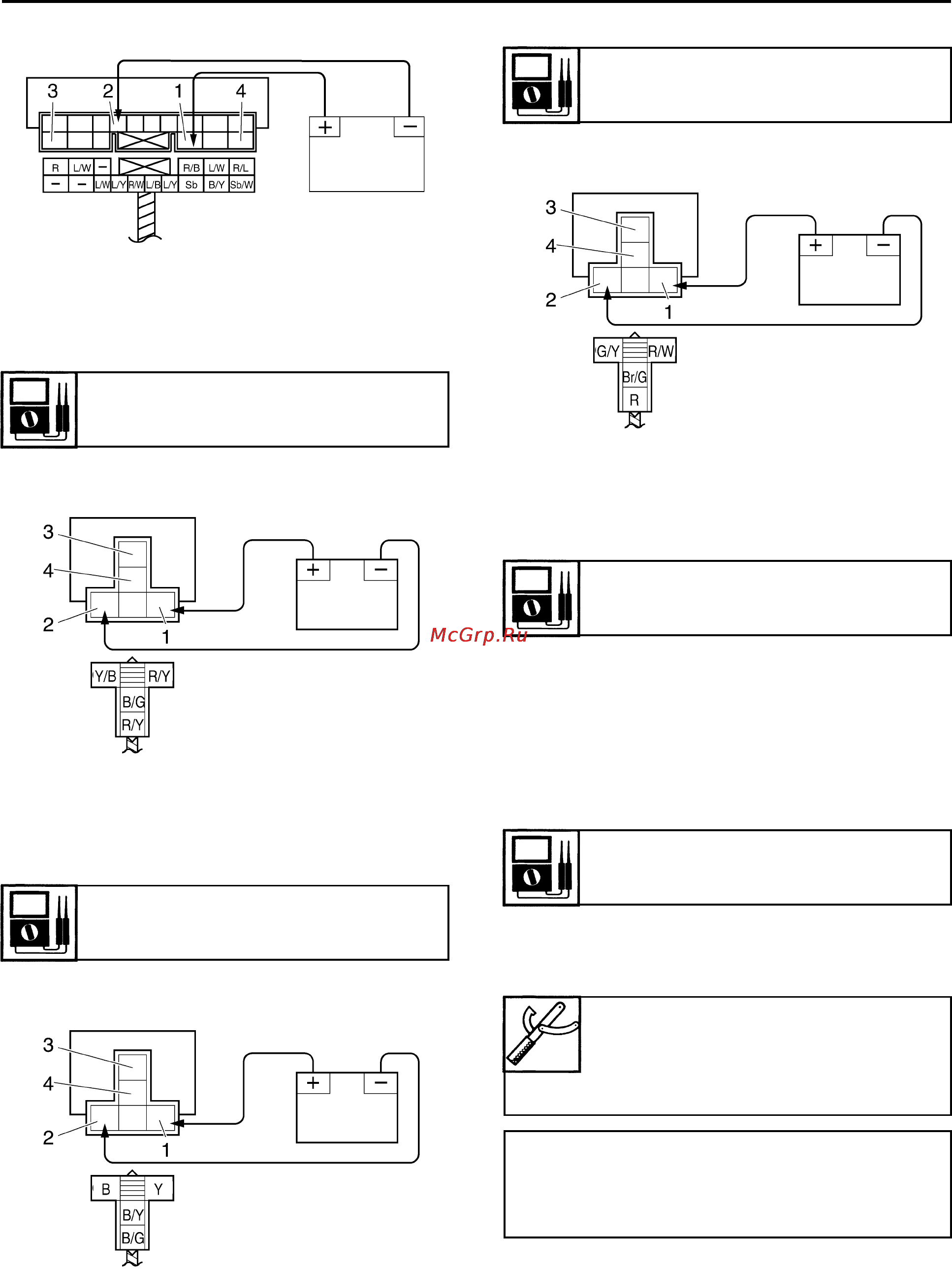

a. Connect the pocket tester (DC 20 V) to the
turn signal relay terminal as shown.
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity/No continuity
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity/No continuity
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity/No continuity
1. Positive battery terminal
2. Negative battery terminal
3. Positive tester probe
4. Negative tester probe
Result
Continuity/No continuity
Turn signal relay input voltage
DC 12 V
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
Blue/Red “1”
• Negative tester probe →
Ground
