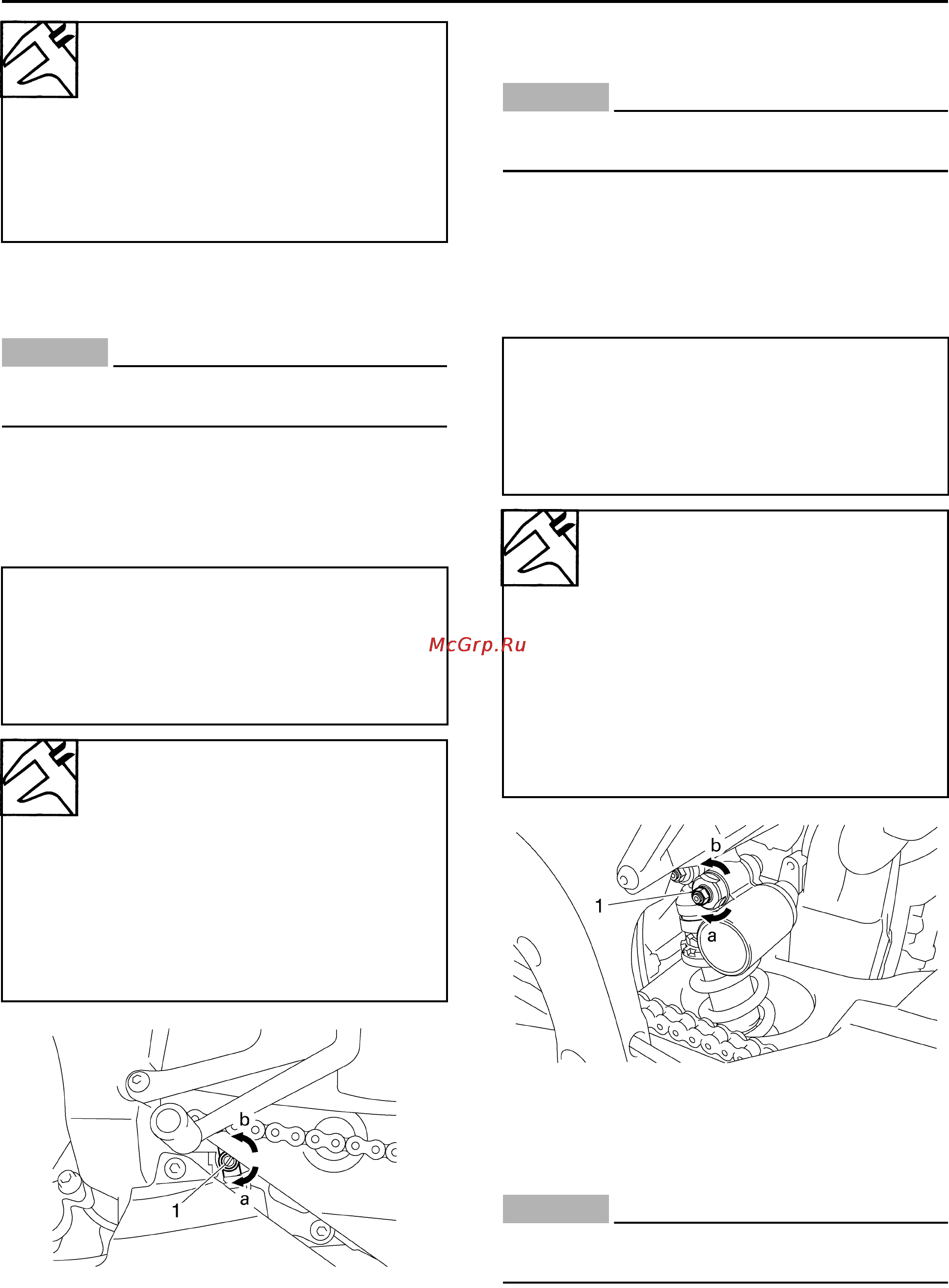

CHASSIS
3-32
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Rebound damping
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Rebound damping
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting knob “1” in direction “a”
or “b”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Compression damping (fast compression
damping)
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Compression damping (fast compression
damping)
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting screw “1” in direction “a”
or “b”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Compression damping (slow compression
damping)
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Compression damping (slow compression
damping)
Spring preload adjusting posi-
tions
Minimum
1
Standard
5
Maximum
9
Direction “a”
Rebound damping is increased
(suspension is harder).
Direction “b”
Rebound damping is decreased
(suspension is softer).
Rebound damping adjust posi-
tions
Minimum
20 click(s) out*
Standard
12 click(s) out*
Maximum
3 click(s) out*
* With the adjusting screw fully turned in.
Direction “a”
Compression damping is increased
(suspension is harder).
Direction “b”
Compression damping is decreased
(suspension is softer).
Compression damping (fast com-
pression damping) adjusting
positions
Minimum
4 turn(s) out*
Standard
3 turn(s) out*
Maximum
0 turn(s) out*
* With the adjusting screw fully turned in.
