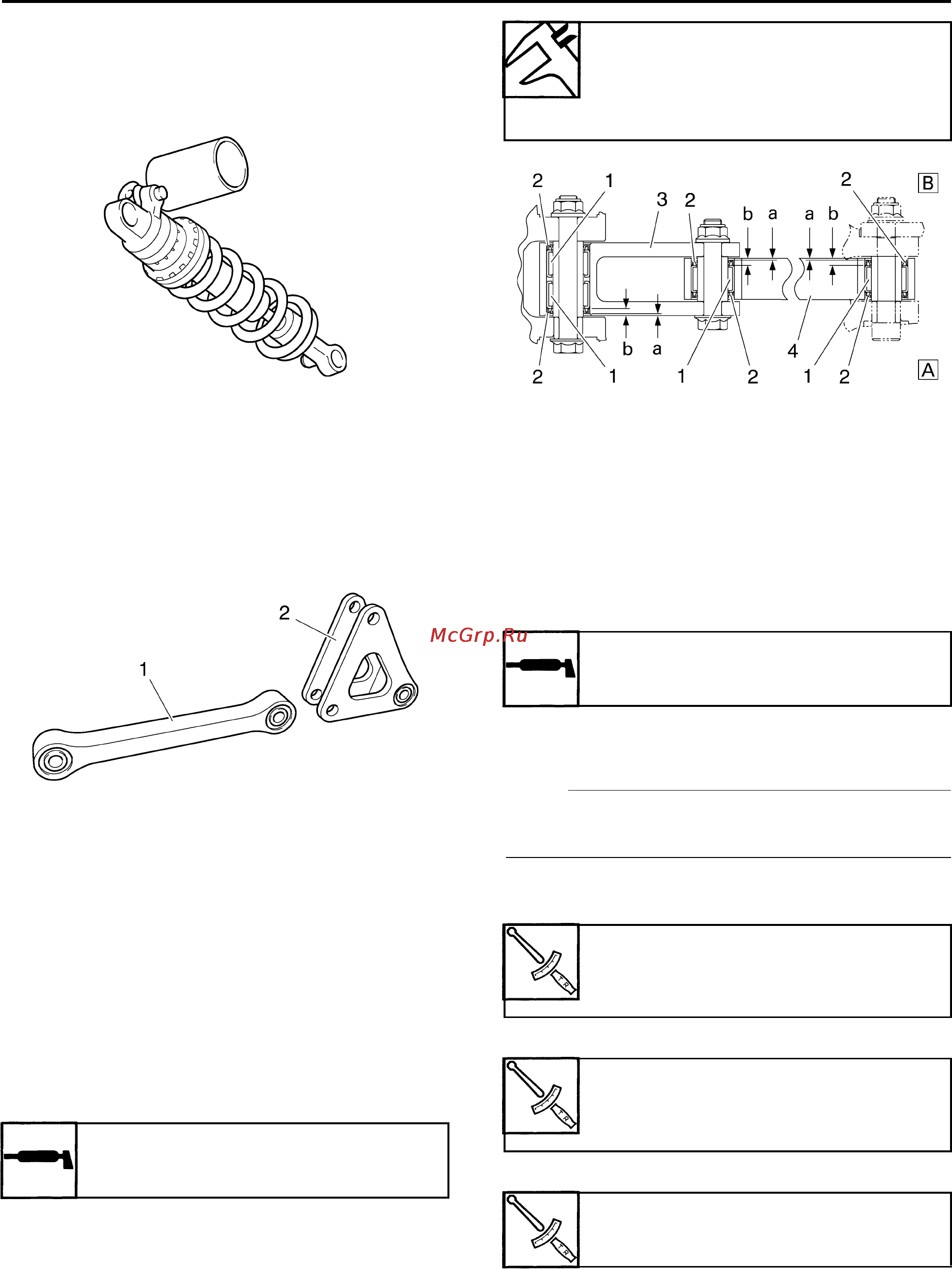

REAR SHOCK ABSORBER ASSEMBLY
4-64
• Dust seals
Damage/wear → Replace.
•Bolts
Bends/damage/wear → Replace.
EAS23260
CHECKING THE CONNECTING ARM AND
RELAY ARM
1. Check:
• Connecting arm “1”
• Relay arm “2”
Damage/wear → Replace.
2. Check:
• Bearings
•Oil seals
Damage/pitting → Replace.
3. Check:
•Collars
Damage/scratches → Replace.
EAS23270
INSTALLING THE RELAY ARM
1. Lubricate:
•Collars
• Bearings
2. Install:
• Bearing “1”
• Oil seals “2”
(to the relay arm)
• Relay arm “3”
• Connecting arm “4”
EAS23310
INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY
1. Lubricate:
•Collars
• Bearings
2. Install:
• Rear shock absorber assembly
NOTE:
Install the connecting arm front bolt from the
left.
3. Tighten:
• Rear shock absorber upper bracket nut
• Rear shock absorber assembly lower nut
• Relay-arm-to-swingarm nut
Recommended lubricant
Lithium soap base grease
Installed depth “a”
1.0 mm (0.04 in)
Installed depth “b”
4.0 mm (0.16 in)
A. Left side
B. Right side
Recommended lubricant
Molybdenum disulfide grease
Rear shock absorber upper
bracket nut
92 Nm (9.2 m·kg, 67 ft·lb)
Rear shock absorber assembly
lower nut
44 Nm (4.4 m·kg, 32 ft·lb)
Relay-arm-to-swingarm nut
44 Nm (4.4 m·kg, 32 ft·lb)
