ENGINE REMOVAL
5-8
NOTE:
First tighten the lower locknut, and then tighten
the upper locknut.

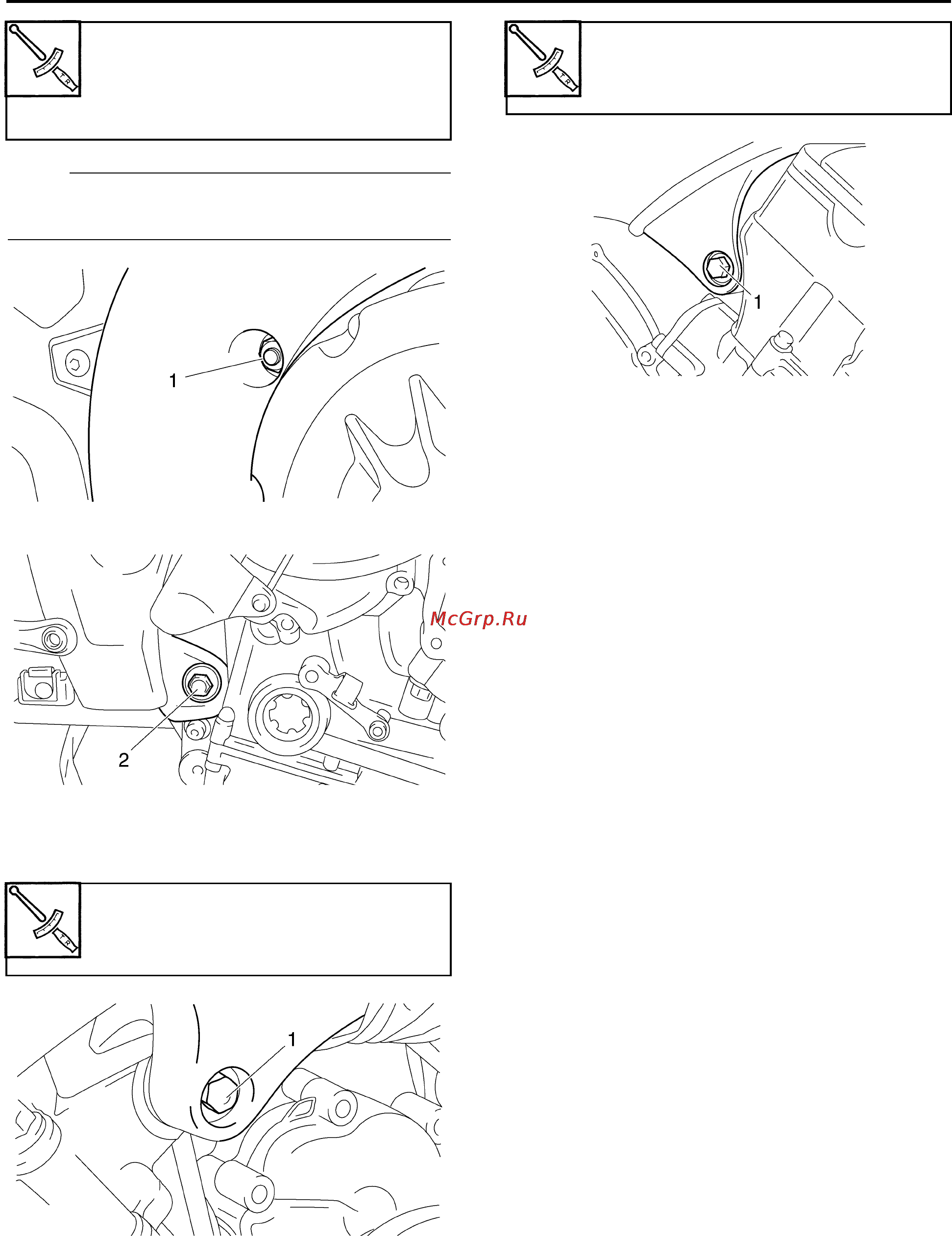

8. Tighten:
• Left front engine mounting bolt “1”
9. Tighten:
• Right front engine mounting bolt “1”
Upper locknut
51 Nm (5.1 m·kg, 37 ft·lb)
Lower locknut
51 Nm (5.1 m·kg, 37 ft·lb)
Engine mounting bolt (front left
side)
45 Nm (4.5 m·kg, 33 ft·lb)
Engine mounting bolt (front
right side)
45 Nm (4.5 m·kg, 33 ft·lb)
