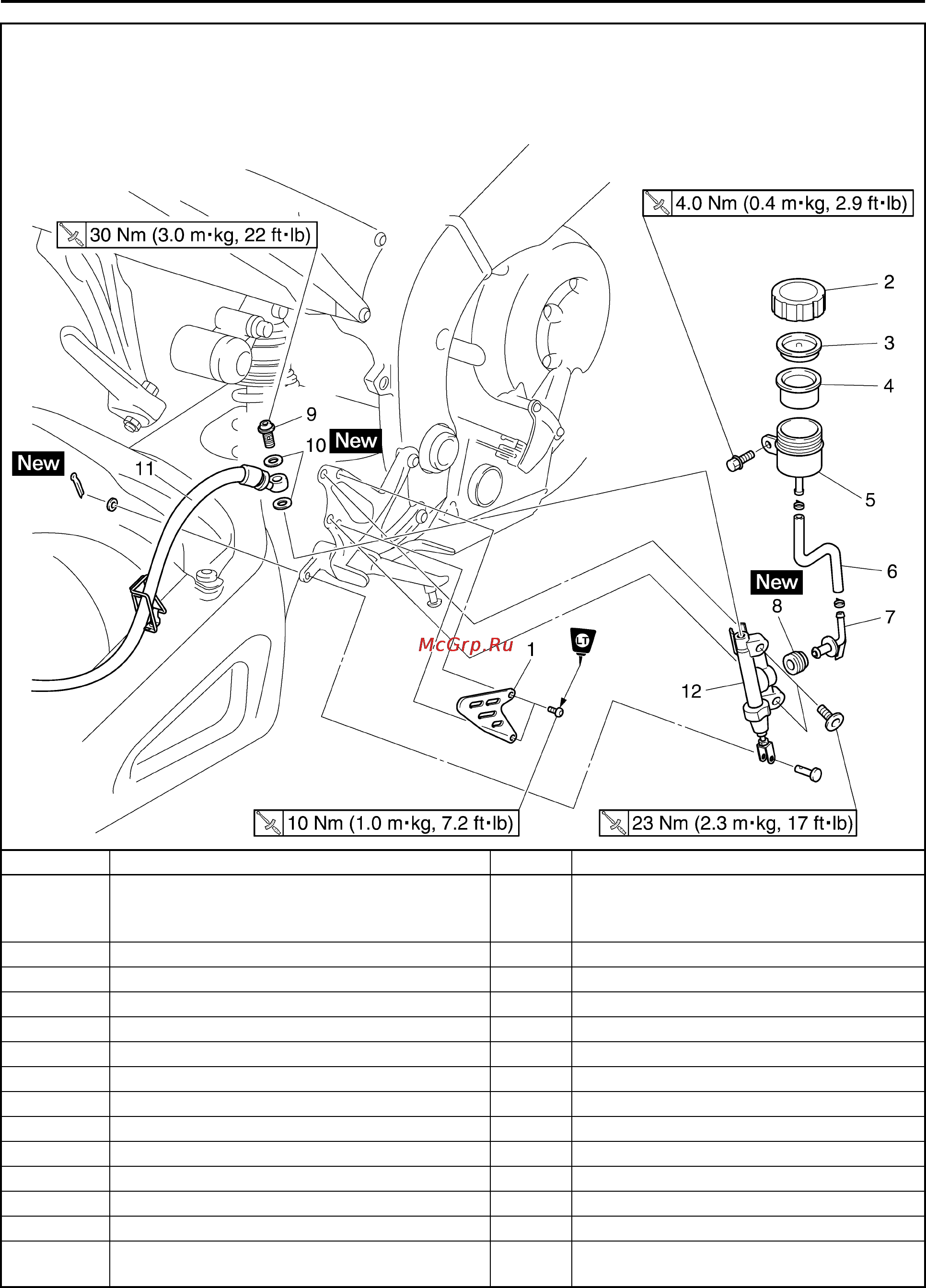

REAR BRAKE
4-33
Removing the rear brake master cylinder
Order Job/Parts to remove Q’ty Remarks
Brake fluid
Drain.
Refer to "BLEEDING THE HYDRAULIC
BRAKE SYSTEM" on page 3-25.
1 Footrest plate 1
2 Brake fluid reservoir cap 1
3 Rear brake fluid reservoir diaphragm holder 1
4 Rear brake fluid reservoir diaphragm 1
5 Brake fluid reservoir tank 1
6 Brake fluid reservoir hose 1
7 Hose joint 1
8Bush 1
9 Union bolt 1
10 Copper washer 2
11 Brake hose 1
12 Brake master cylinder 1
For installation, reverse the removal proce-
dure.
