Yamaha YZF-R1 (2006) [189/426] Rear shock absorber assembly

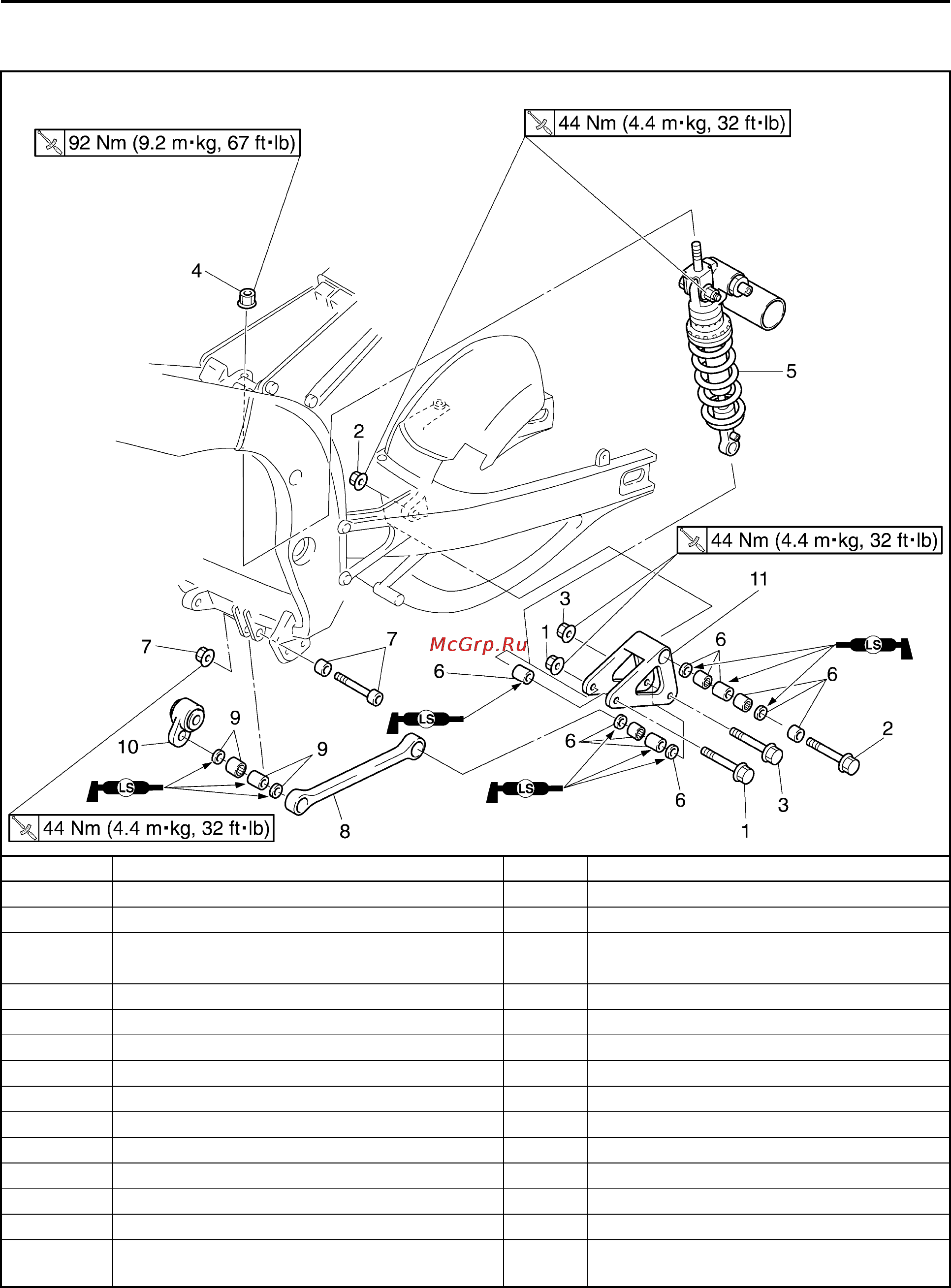

REAR SHOCK ABSORBER ASSEMBLY

4-62

EAS23160

REAR SHOCK ABSORBER ASSEMBLY

Removing the rear shock absorber assembly

Order Job/Parts to remove Q’ty Remarks

Rider seat Refer to "GENERAL CHASSIS" on page 4-1.

Passenger seat Refer to "GENERAL CHASSIS" on page 4-1.

Fuel tank Refer to "FUEL TANK" on page 7-1.

1 Self-locking nut/bolt 1/1

2 Self-locking nut/bolt 1/1

3 Self-locking nut/bolt 1/1/1

4 Self-locking nut 1

5 Rear shock absorber assembly 1

6 Oil seal/bearing/collar 4/3/4

7 Collar/self-locking nut/bolt 1/1/1

8 Connecting arm 1

9 Oil seal/bearing/collar 2/1/1

10 Catalytic converter pipe stay 1

11 Relay arm 1

For installation, reverse the removal proce-

dure.
