FRONT FORK
4-49
EAS22950
FRONT FORK

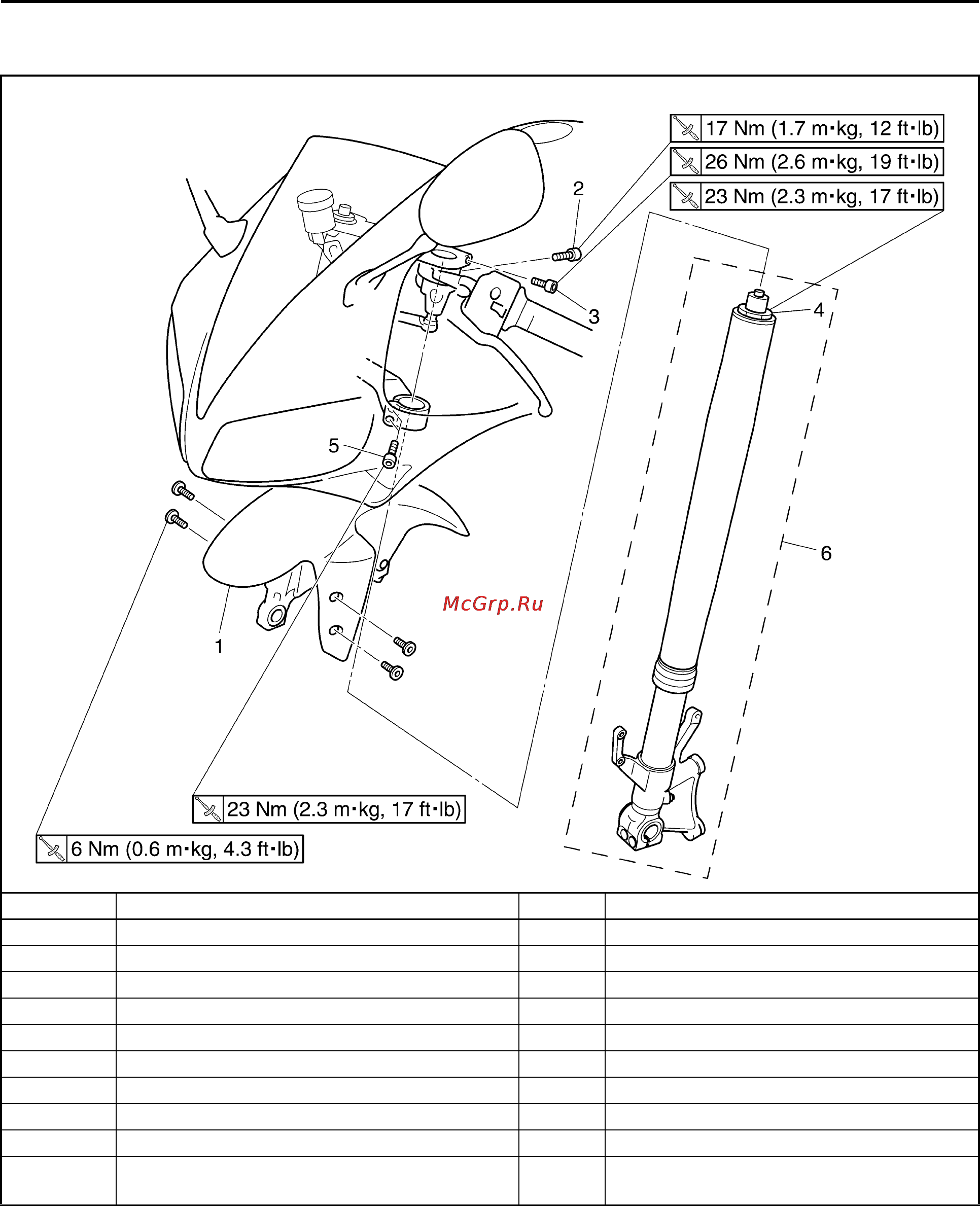

Removing the front fork legs
Order Job/Parts to remove Q’ty Remarks
Front wheel Refer to "FRONT WHEEL" on page 4-8.
Front brake caliper Refer to "FRONT BRAKE" on page 4-19.
Side cowling Refer to "GENERAL CHASSIS" on page 4-1.
1 Front fender 1
2 Handlebar pinch bolt 1 Loosen.
3 Upper bracket pinch bolt 1 Loosen.
4 Cap bolt 1 Loosen.
5 Lower bracket pinch bolt 1 Loosen.
6Front fork leg 1
For installation, reverse the removal proce-
dure.
