CRANKSHAFT
5-83
NOTE:

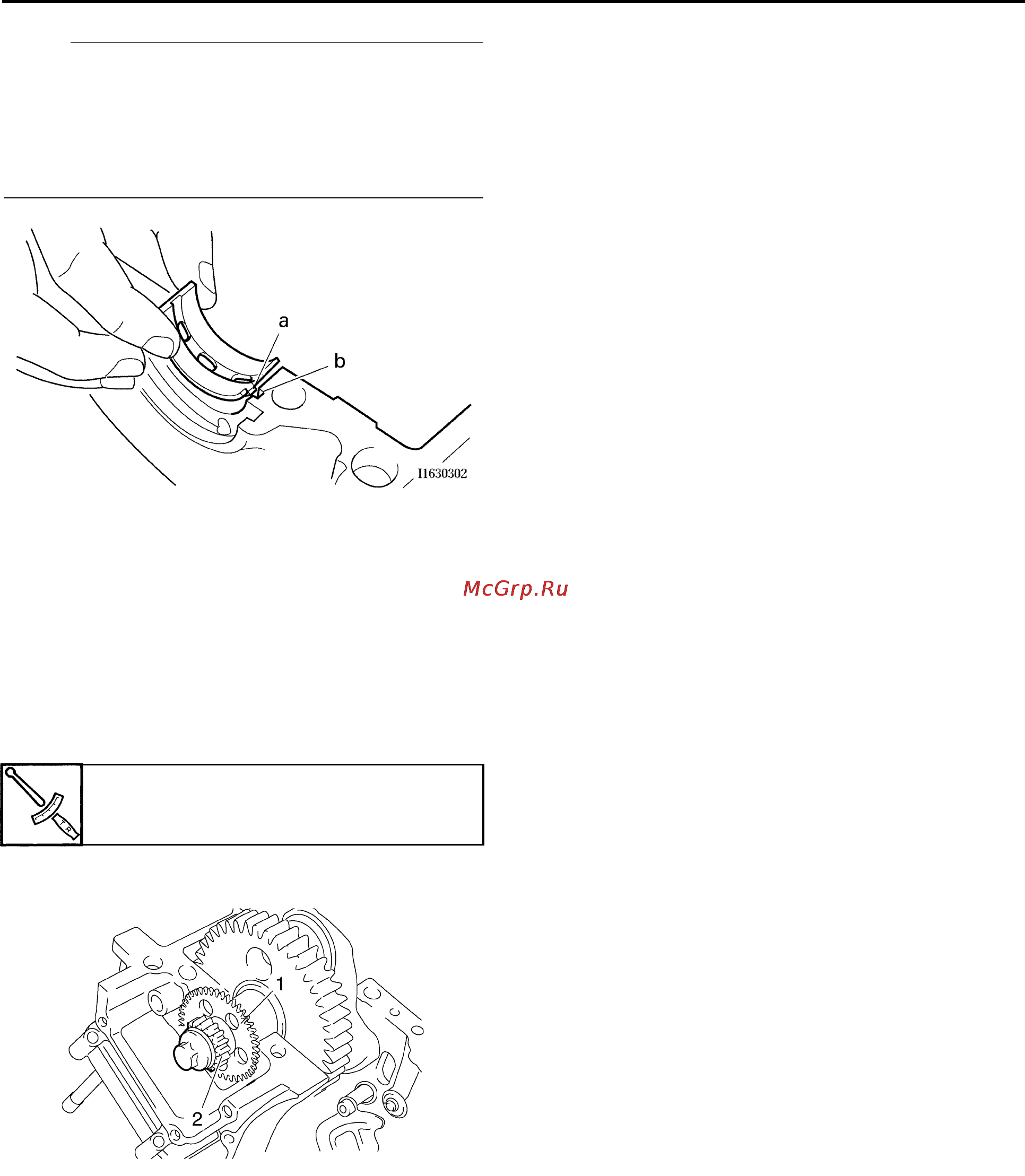

• Align the projections “a” on the crankshaft
journal upper bearings with the notches “b” in
the upper crankcase.
• Be sure to install each crankshaft journal
upper bearing in its original place.
3. Install:
• Crankshaft
4. Install:
• Crankcase (lower)
Refer to "CRANKCASE" on page 5-65.
5. Install:
•Pin
• Pickup rotor “1”
• Drive sprocket “2”
Drive sprocket bolt
60 Nm (6.0 m·kg, 43 ft·lb)
