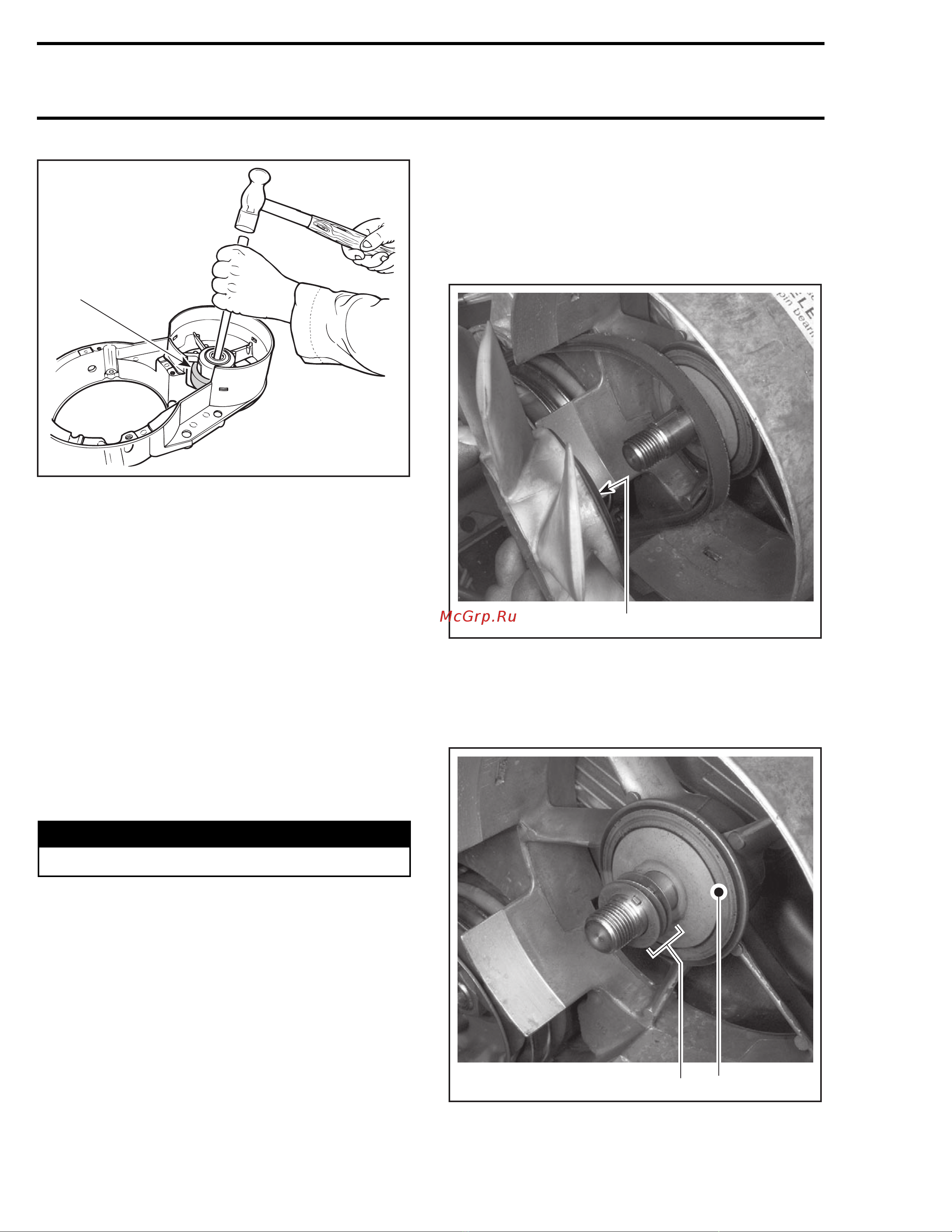

Section 03 ENGINES (2-STROKE)
Subsection 07 (AXIAL FAN COOLING SYSTEM)
A23C07A
1
1. Ring supporting fan housing
Remove circlip no. 11 then remaining bearing.
To install, press one bearing in place then install
circlip and shims. Press the other bearing from
opposite side until it is flush with housing. Press
fan shaft from engine side of fan housing. Check
for free rolling action.
INSTALLATION
At assembly, apply a light coat of Loctite 243 (blue)
(P/N 293 800 060) on screw no. 1 threads.
Agasketmustbeplacedonbothsides(innerand
outer) of intake and exhaust holes of cylinder cowl
no. 4 and 5.
Reinstall fan protector no. 18 properly.
WARNING
Always reinstall fan protector after servicing.
FAN BELT REPLACEMENT AND
DEFLECTION ADJUSTMENT
Remove muffler, rewind starter and on so
equipped models connecting flange. Follow-
ing procedure described above.
443 Engine
Using holder wrench (P/N 420 876 357), remove
fan nut.
552 Engine
Using holder wrench (P/N 529 036 006), remove
fan nut.
All Engines
Removefanwithpulleyhalf.
A03C22A
1
1. Removefanwithpulleyhalf
Remove fan belt.
Leave shims and second half pulley in place. Re-
fer to the following photo.
A03C23A
1 2
1. Keep shims
2. Leave second half pulley in place
144 mmr2005-016
