Section11BODY/FRAME
Subsection 01 (BODY)
BODY
INSTALLATION AND
ADJUSTMENT
DECAL
To remove a decal; heat old decal with a heat gun
and peel off slowly.
Using isopropyl alcohol, clean the surface and dry
thoroughly.
Apply liquid soap to new decal and carefully po-
sition the decal. Using a sponge or a squeegee,
remove the air bubbles and surplus water work-
ing from the center toward the edges. Allow to
air dry.
CAUTION: Do not apply isopropyl alcohol or
solvent directly on decals. Use only in a well
ventilated area.

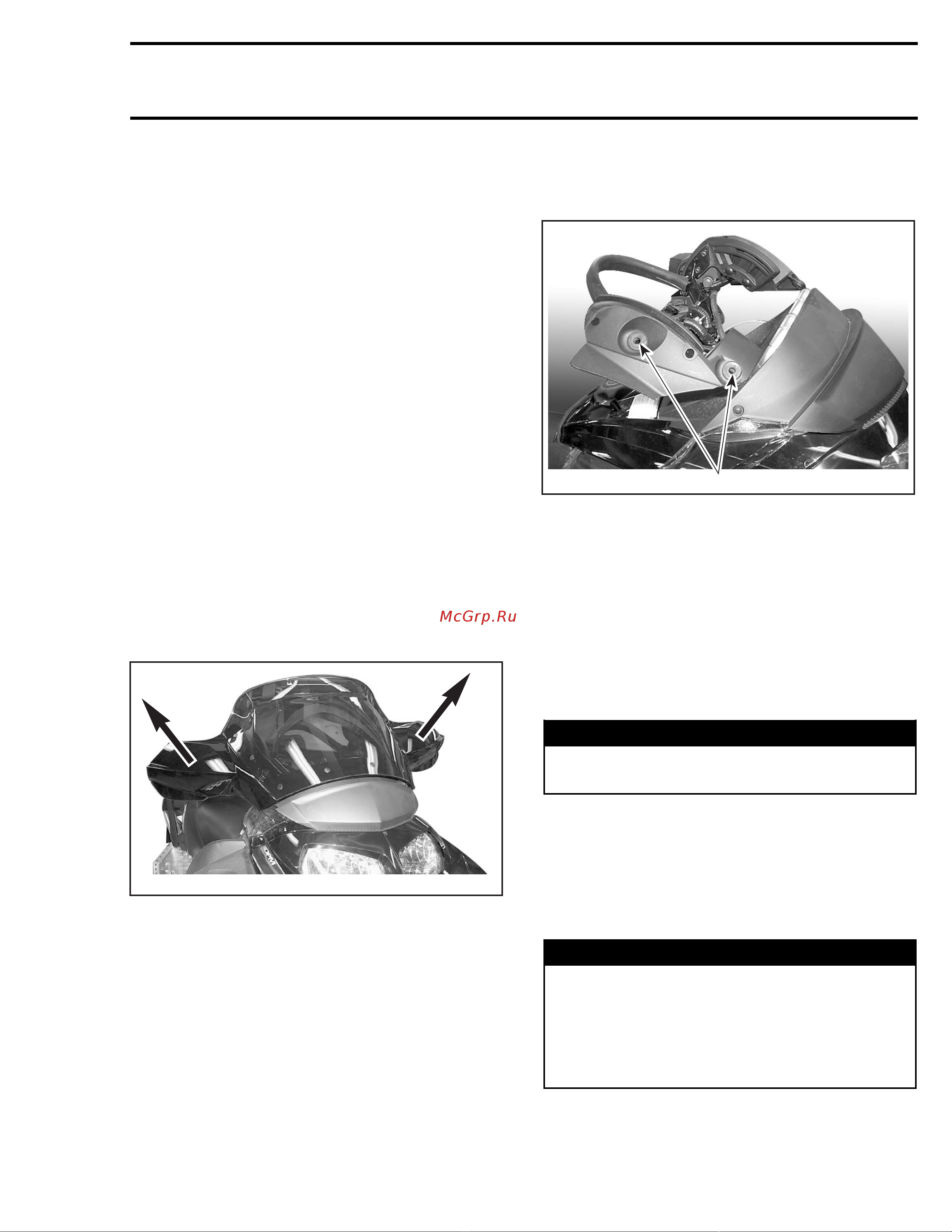

WINDSHIELD
Pull windshield one side at a time as shown to
remove it.
A32H48A
Remove protective film when installing a new
windshield.
Apply liquid soap on grommets prior to installing
windshield to ease pin insertion.
1
A32H49A
1. Grommets
Position the windshield on the windshield sup-
ports then push it down until the pins are fully in-
serted into the grommets.
GUARD
Disassembly and Assembly
NOTE: For additional information (e.g.: exploded
view) refer to the correspondent Parts Catalog.
WARNING
Engine should be running only with guard
well secured in place.
Inspection
Check guard mounting bosses, clips and retainers
for wear.
WIRING HARNESS
WARNING
Ensure all terminals are properly crimped on
the wires and that all connector housings are
properly fastened. Keep wires away from
any rotating, moving, heating and vibrating
parts. Use proper fastening devices as re-
quired.
mmr2005-099 461
