Section 07 TRANSMISSION
Subsection 02 (DRIVE PULLEY)

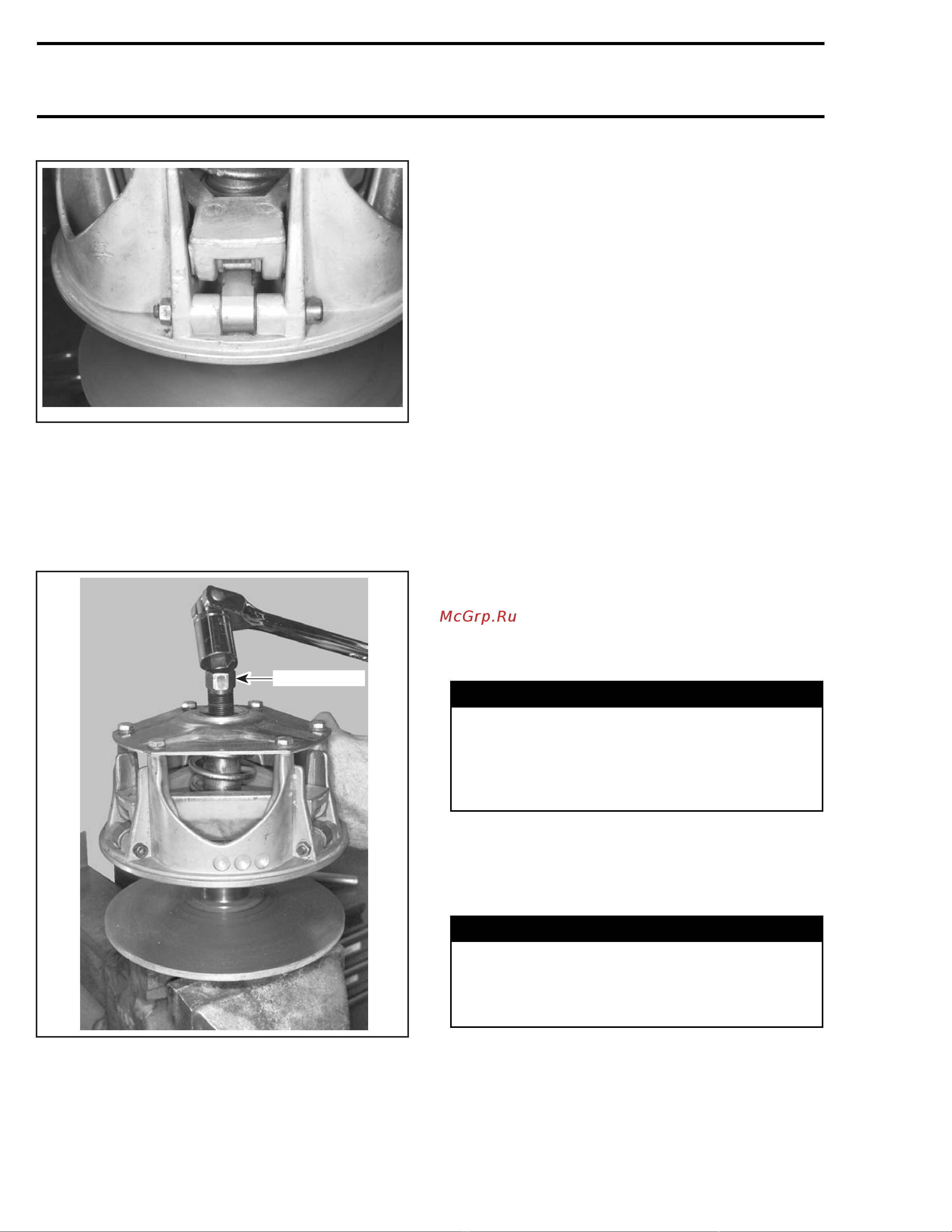

A29D29A
Install spring no. 4,coverno. 3.
Tighten cover screws no. 2 to 12 N•m(106lbf•in).
Proceed with one screw per tower in a criss-cross
sequence then, remaining three screws.
Use COMET drive pulley puller (P/N 529 025 000)
to unlock drive pulley from retainer.
A29D2AA
529 025 000
Skandic LT E Only
Secure ring gear no. 19 on inner fixed half using
self-tapping screws no. 17 and thick M8 flat wash-
ers no. 18. Apply Loctite 271 (P/N 293 800 005)
on screw threads and between screw heads and
thick flat washers.
NOTE: It is of the utmost importance to use thick
flat washers no. 18 with self-tapping screws
no. 17 in order not to pierce inner fixed half with
the screws.
CAUTION: Loctite 271 (P/N 293 800 005) must
be applied to safely assemble ring gear.
Torque screws in a criss-cross sequence to
27 N•m(20lbf•ft).
INSTALLATION
Install drive pulley on crankshaft.
Install a new lock washer.
Torque retaining screw to 68 N•m(50lbf•ft).
Reinstall driven pulley, drive belt and belt guard.
Refasten bottom pan center and rear attachments
on left hand side.
Raise the rear of the vehicle and support it with a
mechanical stand.
WARNING
Ensure that the track is free of particles which
could be thrown out while track is rotating.
Keep hands, tools, feet and clothing clear of
track. Ensure nobody is standing near the ve-
hicle.
Accelerate the vehicle at low speed (maximum
30km/h(20MPH))andapplythebrake,repeat5
times.
Recheck the torque of 68 N•m(50lbf•ft).
WARNING
After 10 hours of operation the transmission
system of the vehicle must be inspected
to ensure the retaining screw is properly
torqued.
