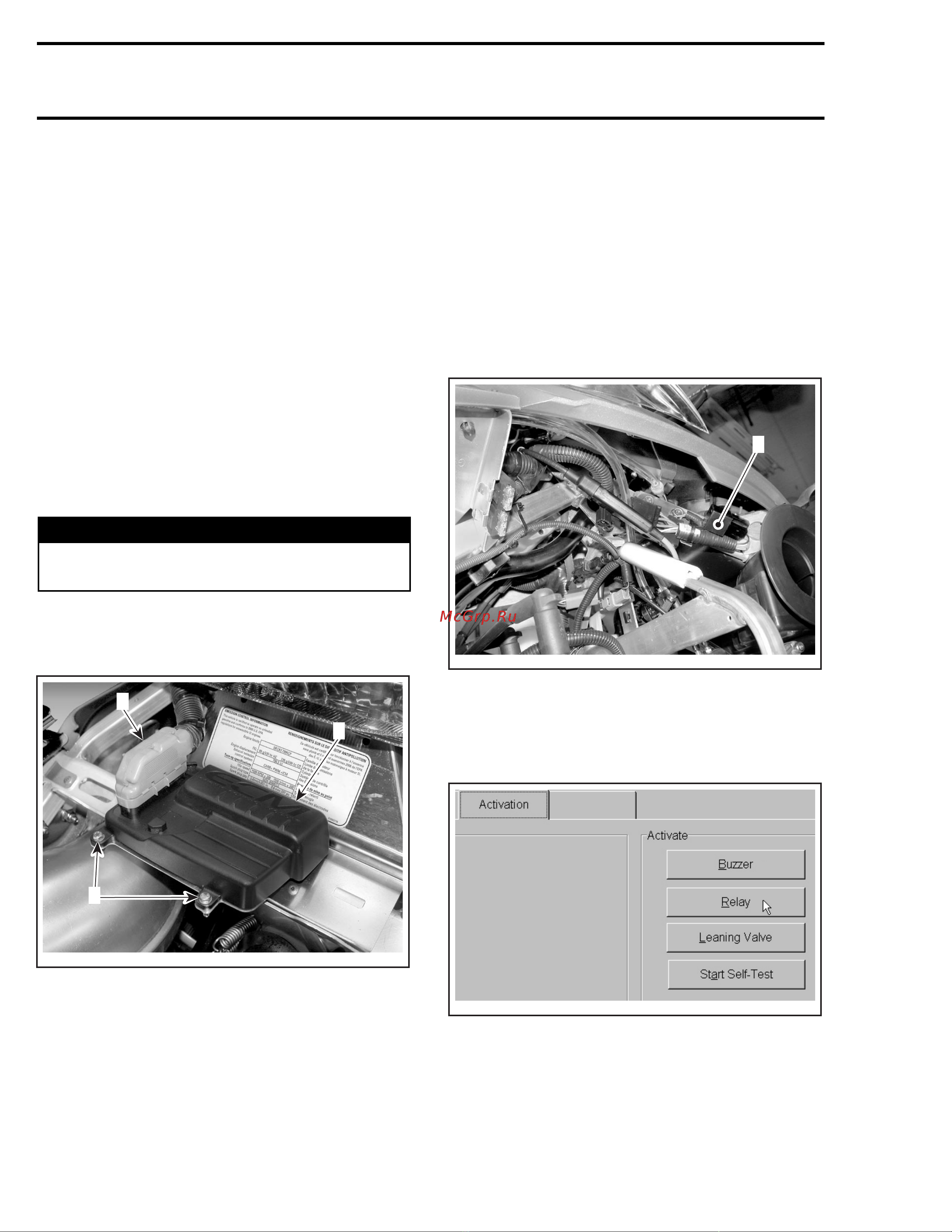

Section 05 ENGINE MANAGEMENT (POWER TEK)
Subsection 03 (COMPONENT INSPECTION, REPLACEMENT AND ADJUSTMENT)
ENGINE MANAGEMENT
SYSTEM
ENGINE CONTROL MODULE
(ECM)
General
Prior to replacing a suspected ECM, ensure that all
the recommendations in the general introduction
of this section have been followed.
NOTE: All information from the ECM will be lost
and will have to be reentered using B.U.D.S. soft-
ware.
ECM Replacement
Disconnect battery cables on electric start mod-
els.
WARNING
Battery BLACK (-) cable must always be dis-
connected first and connected last.
Disconnect connector from ECM.
Unscrew retaining screws and remove the engine
ECM from its support.
A33C4VA
1
2
3
1. ECM
2. ECM connector
3. Retaining screws
Install the new ECM to its support.
Replug ECM connector and then battery cables (if
applicable).
Manually enter information in Vehicle tab.
IMPORTANT: Pay particular attention when typing
the VIN and model numbers. Once Write Data
button is pressed, numbers cannot be modified.
Reprogram DESS tether cord(s) in Keys tab.
Perform Closed throttle and Ignition offset in
Setting tab. Refer to appropriate sections.
Start the engine and increase engine speed above
5500 RPM to be sure no fault appears.
POWER RELAY
A33C4ZA
1
LH SIDE OF VEHICLE
1. Power relay
Connect vehicle communication kit (VCK) and use
B.U.D.S. software.
Energize relay from Activation.
A33C5IA
Listen to or touch relay to feel it clicks.
If the relay does not work, disconnect the connec-
tor from the relay to test the input side.
216 mmr2005-107
