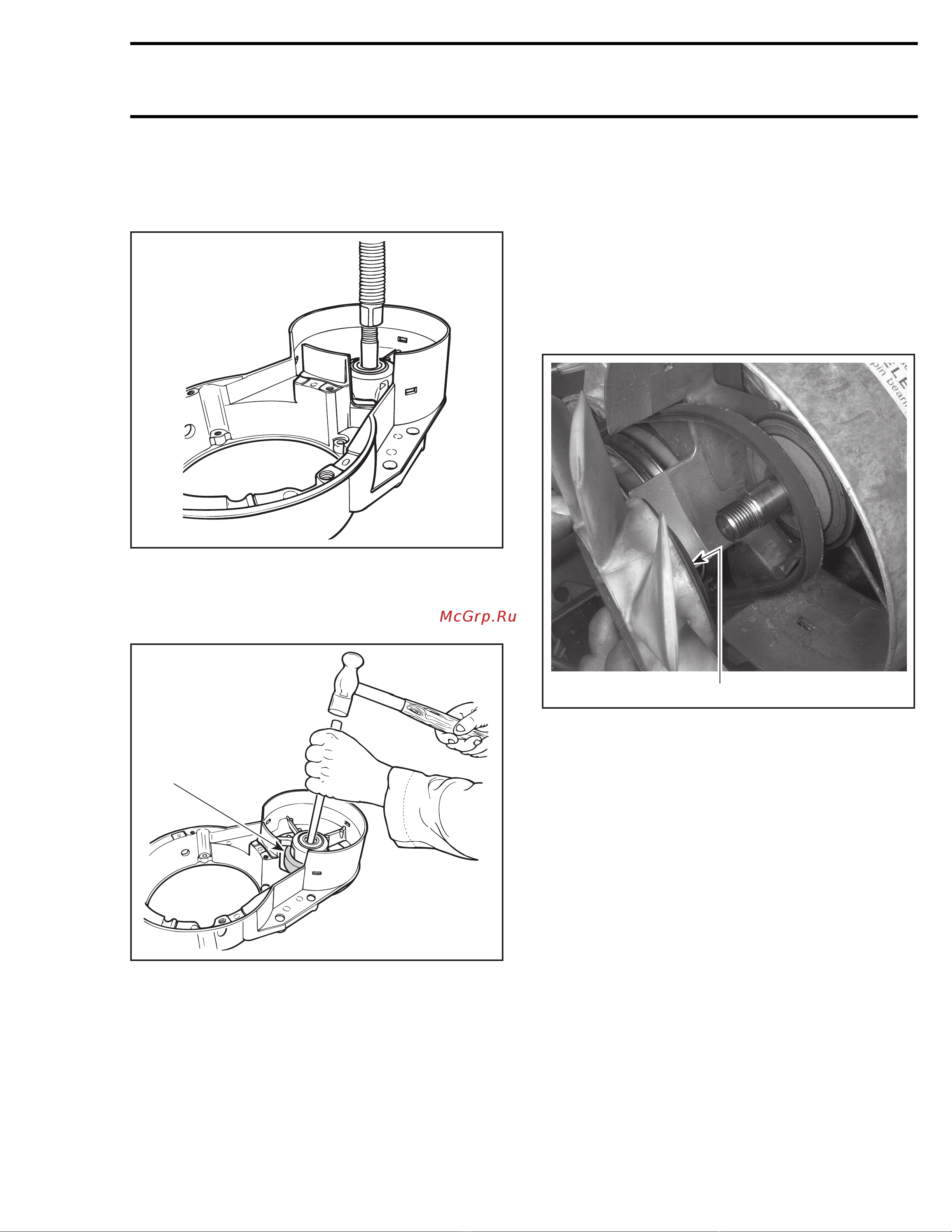

Section 03 ENGINES
Subsection 08 (COOLING SYSTEM)
Remove support fan housing no. 7. Refer to TOP
END and MAGNETO SYSTEM.
Using a press, drive the fan shaft no. 8 out.
A23C06A
Support fan housing no. 7 with a ring. With a
punch, working all around bearing no. 9 inner race,
drive bearing out of fan housing. Keep shims for
installation.
A23C07A
1
1. Ring supporting fan housing
Remove circlip no. 10 then remaining bearing.
To install, press one bearing in place then install
circlip and shims. Press the other bearing from
opposite side until it is flush with housing. Press
fan shaft from engine side of fan housing. Check
for free rolling action.
FAN BELT REPLACEMENT AND
DEFLECTION ADJUSTMENT
Remove tuned pipe and muffler. Refer to EX-
HAUST SYSTEM.
Remove rewind starter and oil pump with gear
case. Refer to REWIND STARTER.
Remove cooling fan as explained in this section.
Remove pulley half.
A03C22A
1
1. Fan with pulley half
Remove fan belt no. 11.
Leave shims and second half pulley in place. Re-
fer to the following photo.
mmr2005-074 139
