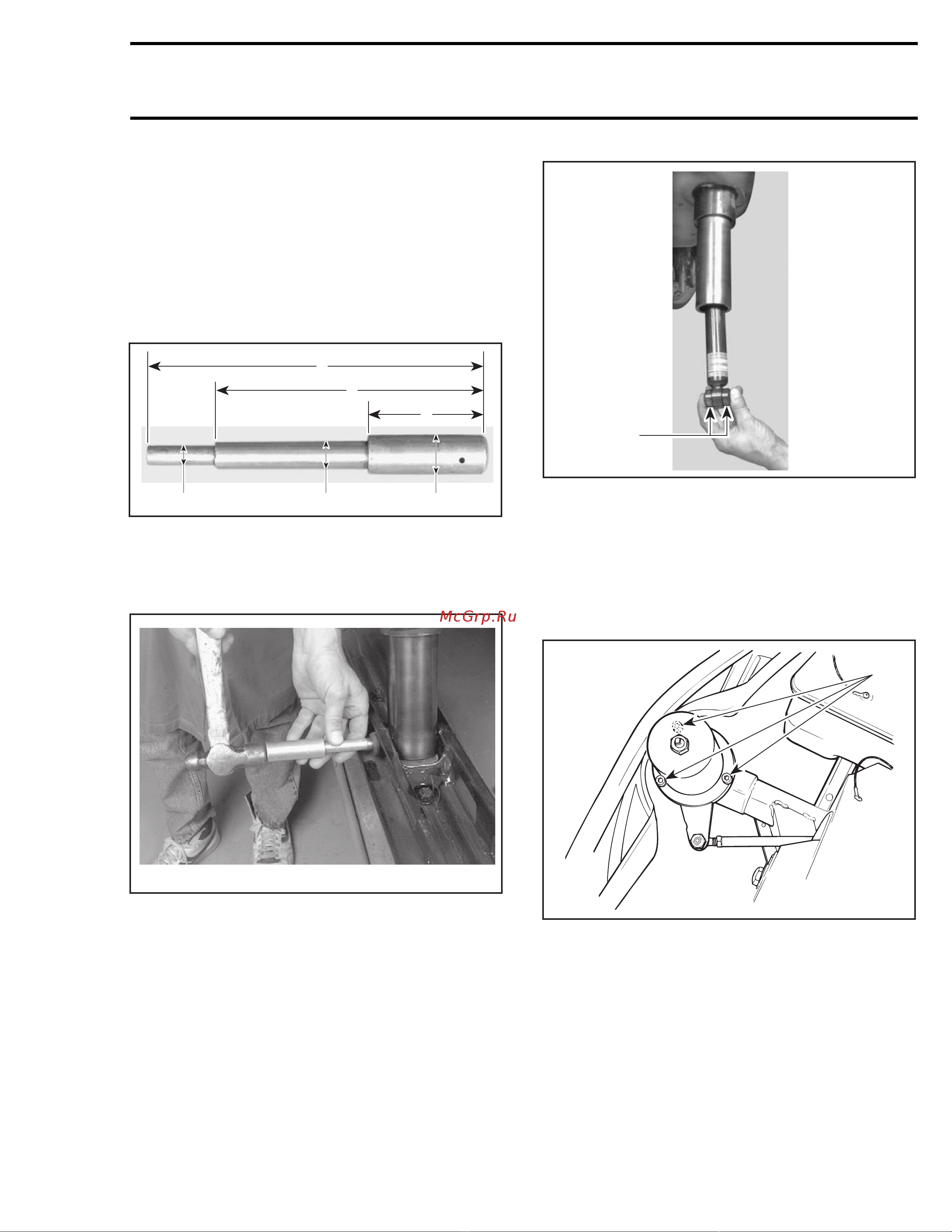

Section 10 STEERING / FRONT SUSPENSION
Subsection 02 (SUSPENSION AND SKI SYSTEM)
ON-VEHICLE COMPONENT
VERIFICATION
8, Shock
Lift front of vehicle and support off the ground.
Remove ski bolt and nut.
Remove steel bushing from ski using a pusher.
See pusher dimensions below.
A22G0OA
F ED
C
B
A
A. 220 mm (8.66 in)
B. 180 mm (7.09 in)
C. 70 mm (2.75 in)
D. 25 mm (1.0 in)
E. 15 mm (0.59 in)
F. 9 m m ( 0 .3 5 in )
A22G0PA
Unfasten rod nut then pull out shock from bottom.
Check shock as described below in INSPECTION.
At installation, make sure bushings are in place.
A22G0IA
1
1. Bushings
7, Spring
Unscrew shock rod nut then remove washer. Un-
screw 3 Allen screws retaining cover no. 3,then
remove stopper no. 5, washers no. 6, washer
no. 19.
A05G0CA
1
1. Allen screws
NOTE: These washers and stopper can be
wedged in cover.
mmr2005-054 535
