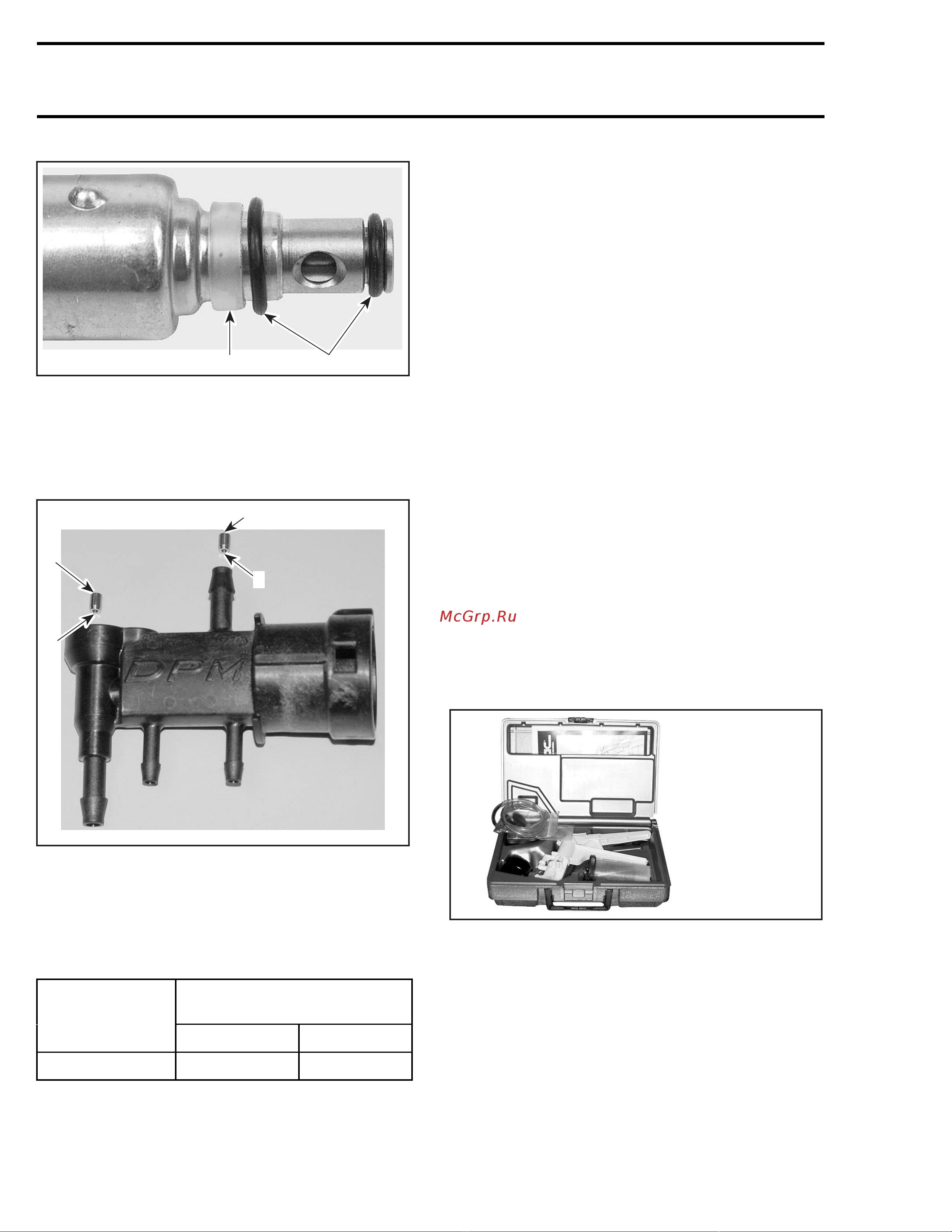

Section04FUELSYSTEM
Subsection 03 (DPM SYSTEM)
A06E2OA
1
2
1. Plastic seal
2. O-rings
Jet
When installing jet in DPM, ensure to position the
taper end as shown.
1
A32C6WA
3
2
3
1. Vent jet
2. Lean jet
3. Taper end here
Pay also attention not to mix jets. Refer to the
following table for the proper inner diameter size.
Refer to the illustration above for the jet location.
INSIDE DIAMETER
mm (in)
MODEL
VENT JET LEAN JET
All 1.2 (.047) 2.0 (.079)
Cap
Prior to installing DPM cap, ensure O-ring is in
good condition. To install cap, firmly push until
tabs click and lock on both sides in DPM.
DPM MANIFOLD TESTING
All DPM Models
Visual Inspection
With DPM manifold removed from vehicle and all
hoses disconnected from DPM manifold, inspect
for any broken fittings or missing dust caps. If any
part is broken, replace DPM manifold and do not
proceed with leak test procedure. If any part is
missing, order necessary part as listed in parts cat-
alog, replace, then perform leak test procedure.
If there is no apparent breakage or missing part
on DPM manifold, perform the following leak test
procedure.
Leak Testing
Required Items
The following items will be required:
– Watercolumnwithatleast350mm(13-3/4in)
in height.
– Engine leak test kit (P/N 529 021 800) .
529 021 800
– 4.8 mm (3/16 in) T-fitting.
– 6 mm (15/64 in) T-fitting.
– 3.5 mm (9/64 in) ID x 100 mm (4 in) hose.
– 6mm(15/64in)IDx300mm(12in)hose.
DPM Manifold Preparation
Connect hoses as shown.
196 mmr2005-104
