Section 10 STEERING / FRONT SUSPENSION
Subsection 01 (STEERING SYSTEM)

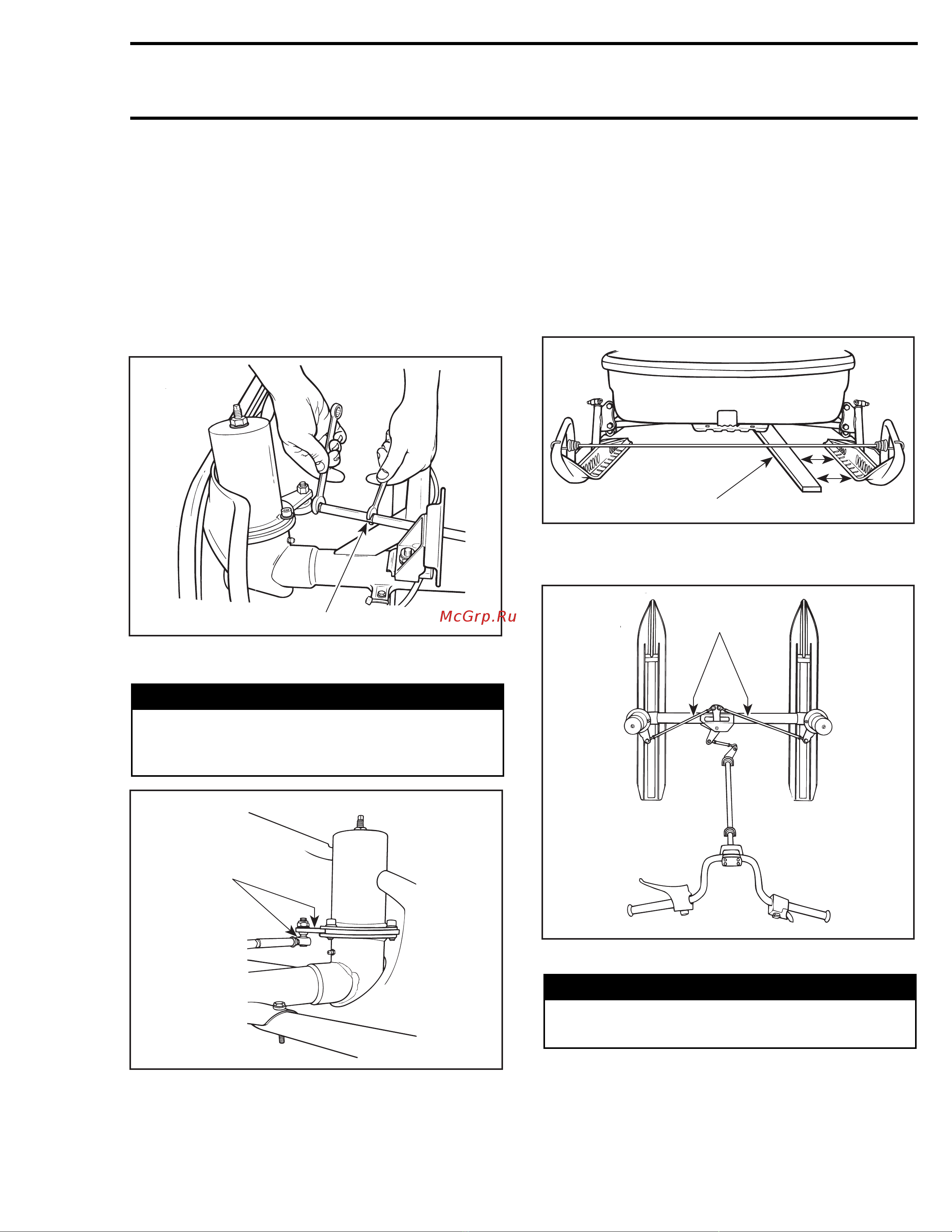

TOE-OUT ADJUSTMENT
Raise front of vehicle so that skis are off the
ground.
Loosen lock nuts of long tie rods and turn each
tie rod so that skis are in a straight ahead position.
To adjust toe-out, slightly turn both tie rods exactly
the same amount.
Make sure external threaded length not engaged
is not too long and torque nuts as specified above.
A05G08A
1
LONG TIE ROD SHOWN
1. Restrain tie rod to tighten lock nuts
WARNING
Ball joint sockets must run parallel with steer-
ing arm and pivot arm. Tie rod must be re-
strained when tightening lock nuts.
A05G09B
1
LONG TIE ROD SHOWN
1. Ball joint parallel with arm
NOTE: To make sure skis are in straight-ahead
position, place a straight edge against pre-adjust-
ed track and measure distance between front and
rear of skis and straight edge. Measurements are
taken 200 mm (8 in) at rear and front of ski piv-
ot bolt. Distances should be equal. After ski toe-
out adjustment, distance at front of ski must be
3.0 mm (1/8 in) more than at rear on both sides
for a total toe-out of 6 mm (1/4 in).
A06G03A
2
1
TYPICAL
1. Straight edge
2. 3.0 mm (1/8 in) more at front than at rear
1
A05G05A
1. Turn to adjust
WARNING
Do not attempt to adjust skis straight-ahead
position by turning ball joint on tie rod no. 14.
