Section 03 ENGINES (2-STROKE)
Subsection 10 (FUEL SYSTEM)

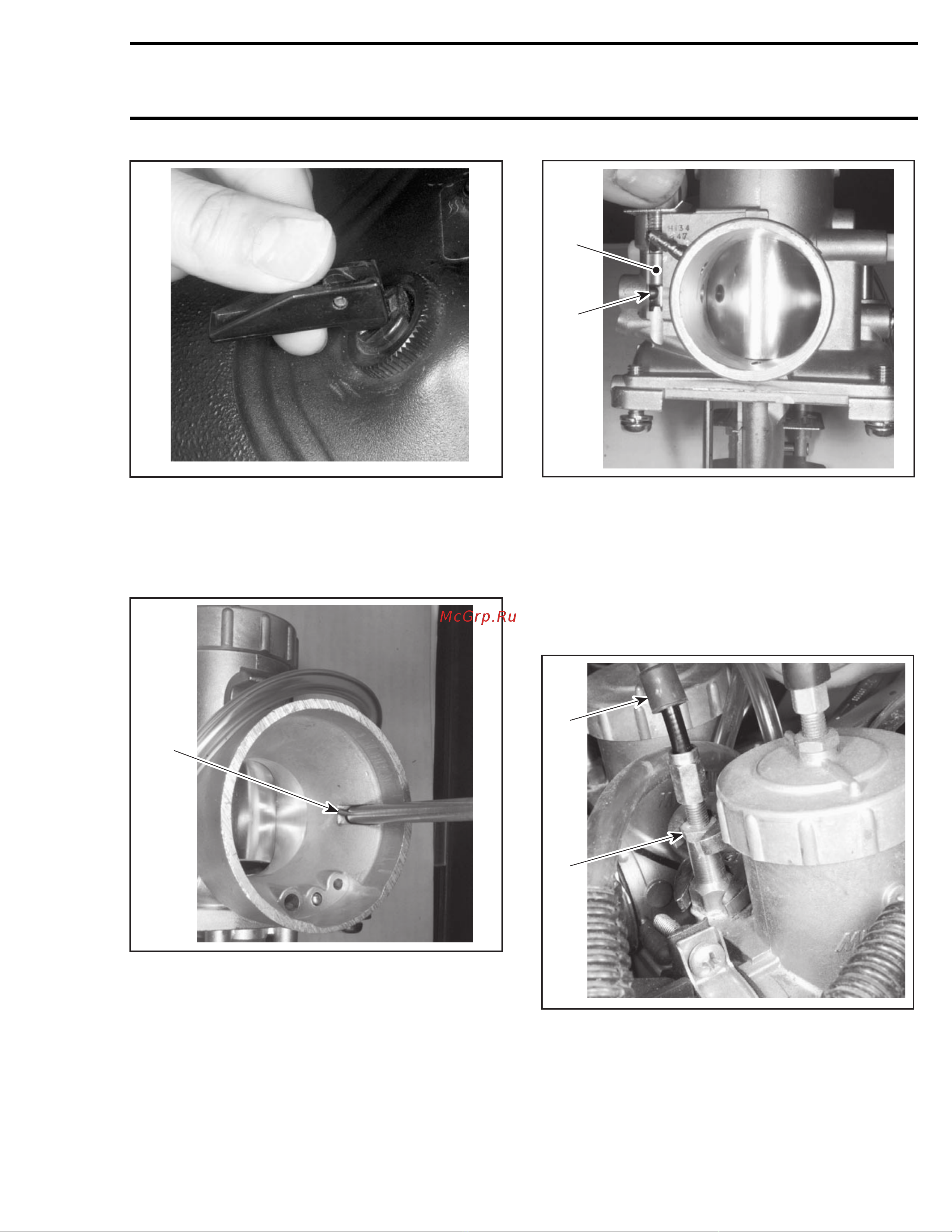

A01C5HA
CHOKE LEVER — FULLY OPEN POSITION
Insert choke plunger tool (P/N 529 032 100) into
choke air inlet of each carburetor. Tool stopper
may not lean against recess wall. Though it must
be within 1 mm (.040 in) of recess wall.
1
A01C5EA
AIR SILENCER SIDE SHOWN
1. Tool stopper within 1 mm (.040 in) of recess wall
A01C5FA
1
2
CUT-AWAY (ENGINE SIDE SHOWN)
1. Choke plunger
2. Tool properly seated under choke plunger
If tool tip does not sit under choke plunger no. 15,
adjust as follows:
Make sure choke lever is at fully open position.
Lift up protector cap and loosen choke cable lock
nut, as shown in the next photo.
2
A01C5GA
1
1. Lift up protector cap
2. Loosen lock nut
Turn choke cable adjustment nut by hand until tool
properly sits under choke plunger.
NOTE: A light pressure is be needed to position
tool under plunger.
mmr2005-019 171
