Section 03 ENGINES (2-STROKE)
Subsection 10 (FUEL SYSTEM)
Fuel pump components should be cleaned in gen-
eral purpose solvent and dried with compressed
air.
WARNING
Solvent with a low flash point such as gaso-
line, naphtha, benzol, etc., should not be used
as each is flammable and explosive.
Inspect diaphragm. The pumping area should be
free of holes, tears or imperfections. Replace as
needed.
High-supply pump with twin outlets: Thoroughly
clean filter on top cover. Replace pump if too dirty.
INSTALLATION
To install, inverse removal procedure.
WARNING
Pressure test to ensure there is no leak in fuel
system.
FUEL TANK
Fuel Tank Lines
WARNING

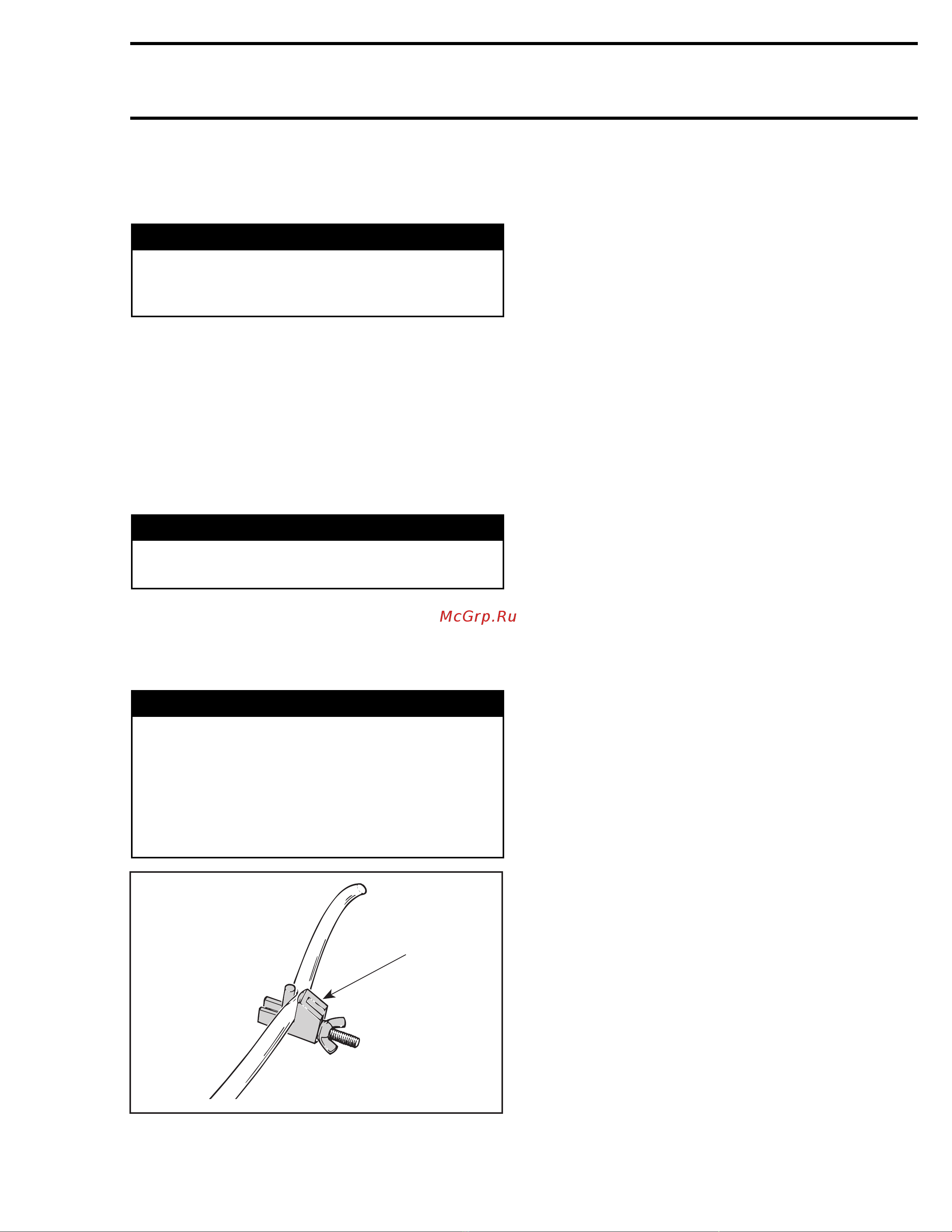

When draining a fuel tank or whenever a fu-
el line is disconnected, obstruct line with a
hose pincher (P/N 295 000 076) or equivalent
device. Fuel is flammable and explosive un-
der certain conditions. Ensure work area is
well ventilated. Do not smoke or allow open
flames or sparks in the vicinity.
A01B2JA
295 000 076
Impulse/Fuel Lines Spring Clips
Always reposition spring clips after any repair to
prevent possible leaks.
mmr2005-019 173
