INTRODUCTION

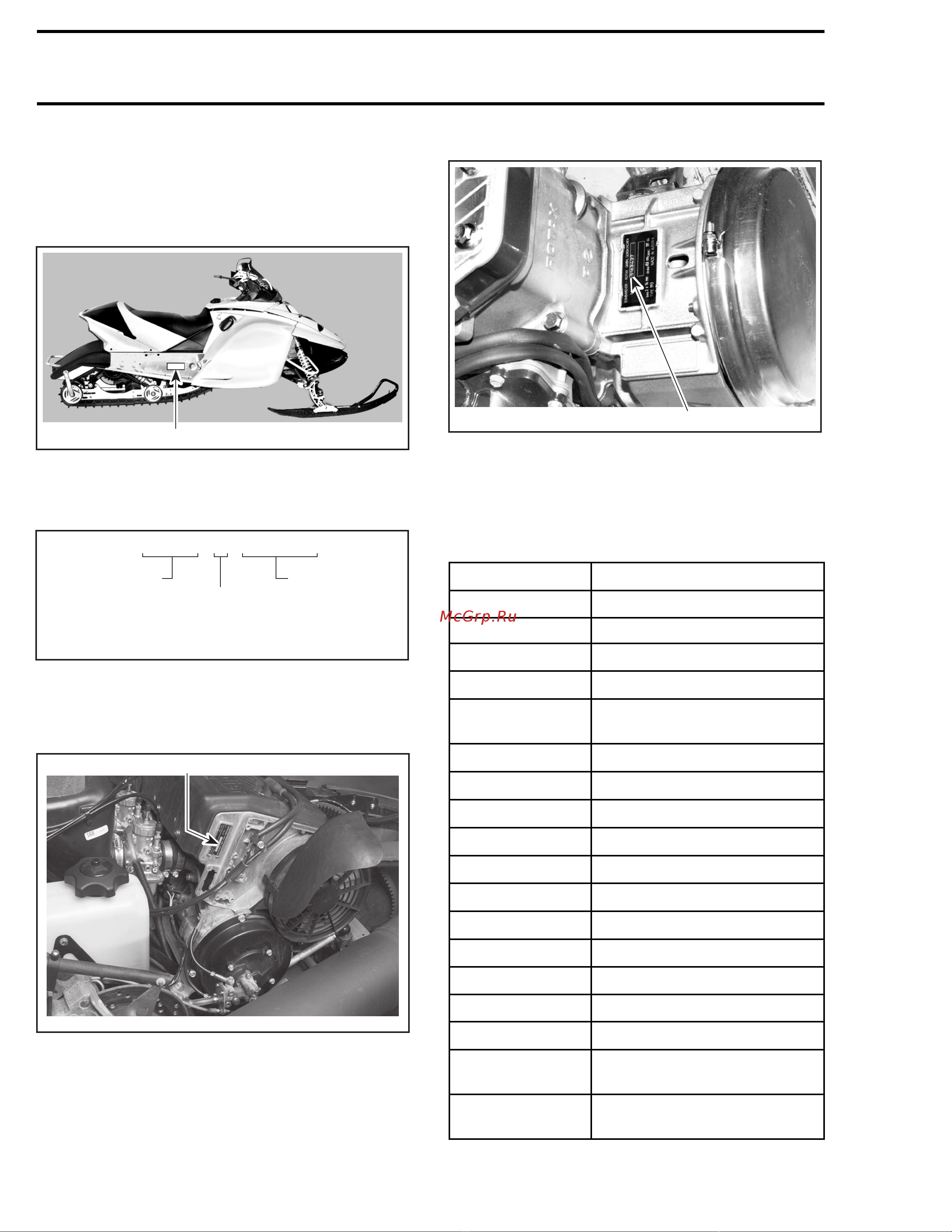

VEHICLE IDENTIFICATION
NUMBER
Vehicle Identification Number Location
1
A33H01A
TYPICAL
1. Vehicle identification number
Identification Number Meaning
A00A8HA
2 B P S B X 5 A 9 Y 1 0 0 0 0 0 1
Model number
Serial number
Model year: y = 2000
1 = 2001
2 = 2002
etc.
ENGINE SERIAL NUMBER
Engine Serial Number Location
A03A0BA
1
TYPICAL — 2–STROKE FAN-COOLED ENGINES
1. Engine serial number
1
A32C01B
TYPICAL — 2–STROKE LIQUID-COOLED ENGINES
1. Engine serial number
LIST OF ABBREVIATIONS USED
IN THIS MANUAL
ABBREVIATION MEANING
A
ampere
amp ampere
A•h ampere-hour
AC
alternate current
ACM
acceleration and control
modulator
AMG absorbed glass mat
BDC bottom dead center
BTDC before top dead center
°C degree Celsius
cc
cubic centimeter
CDI capacitor discharge ignition
CTR
center
cm
centimeter
cm² square centimeter
cm³ cubic centimeter
DC direct current
DESS
digitally encoded security
system
DPM
digital performance
management
XIV
mmr2005-059
