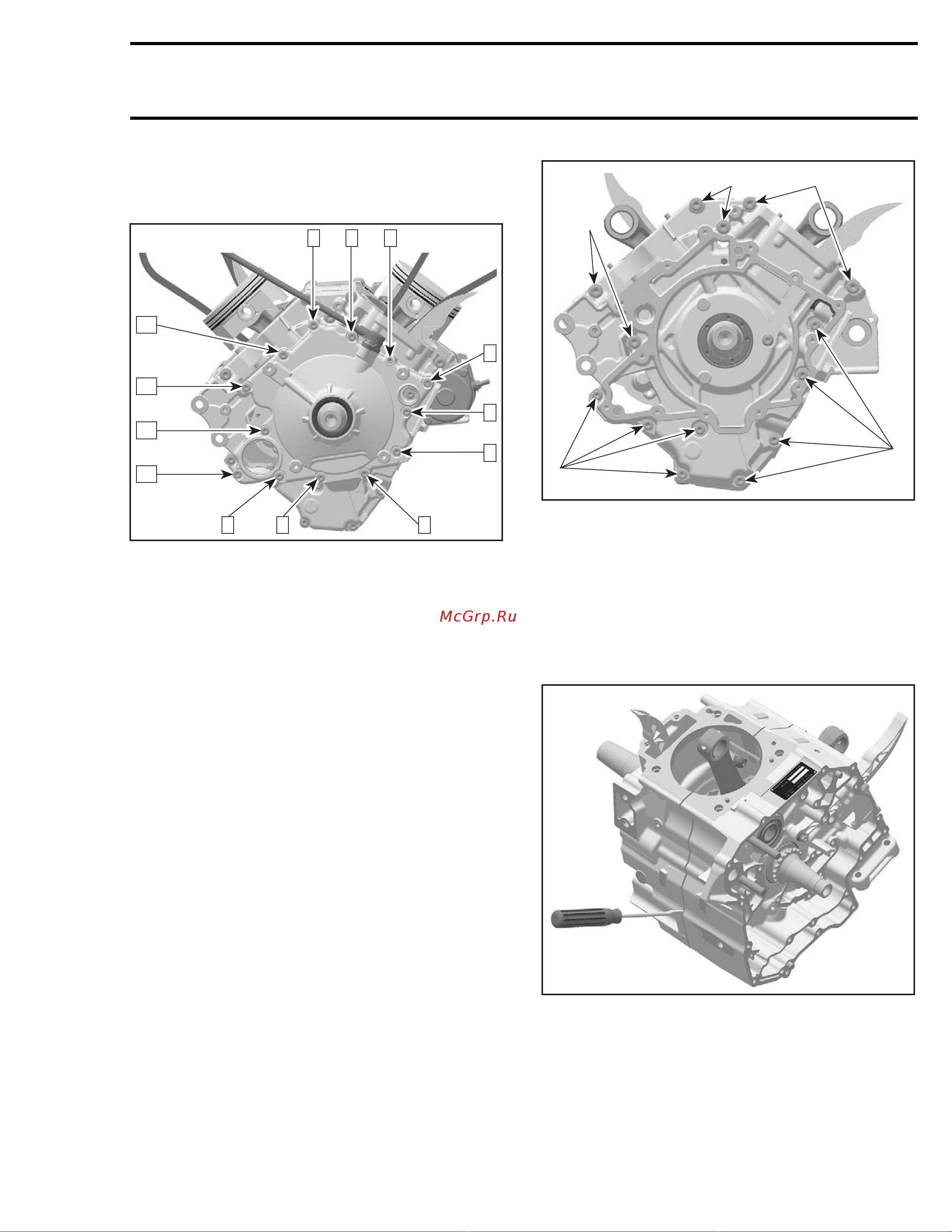

Section 04 ENGINE (4-TEC)
Subsection 07 (CRANKCASE)
Tightening sequence for screws on PTO cover is
as per following illustration. Fit the screw no. 17A
with Loctite 243 (P/N 293 800 060).
R1004motr111B
1 2 3
4
5
7
6
89
10
11
12
13
A
A. Screw 17A with Loctite 243
CRANKCASE
Disassembly
Remove:
– engine from vehicle (refer to REMOVAL AND
INSTALLATION)
– oil tank and oil filter housing (refer to LUBRICA-
TION SYSTEM)
– PTO cover (refer to PTO COVER above)
– trigger wheel (refer to CRANKSHAFT/DRIVE
GEARS)
– electric starter (refer to ELECTRIC STARTER)
– alternator side cover (refer to COOLING SYS-
TEM)
– drive gears (refer to CRANKSHAFT/DRIVE
GEARS)
– cylinder head and cylinder (refer to CYLINDER
AND CYLINDER HEAD)
– timing chains (refer to CRANKSHAFT/DRIVE
GEARS)
– cover no. 13
– screws no. 3 and no. 4 retaining crankcase
halves.
2
1
R1004motr117A
1
1
2
1. Six screws M8 x 90
2. Eight screws M6 x 65
Place the crankcase on a wood stand, PTO side
upwards.
Carefully separate crankcase halves by using a
screwdriver and a plastic hammer.
NOTE: During disassembly, do not damage the
sealing surfaces of the crankcase halves.
R1004motr118A
POSITION FOR SCREWDRIVER
mmr2005-027 251
