Section04FUELSYSTEM
Subsection 01 (FUEL TANK AND FUEL PUMP)

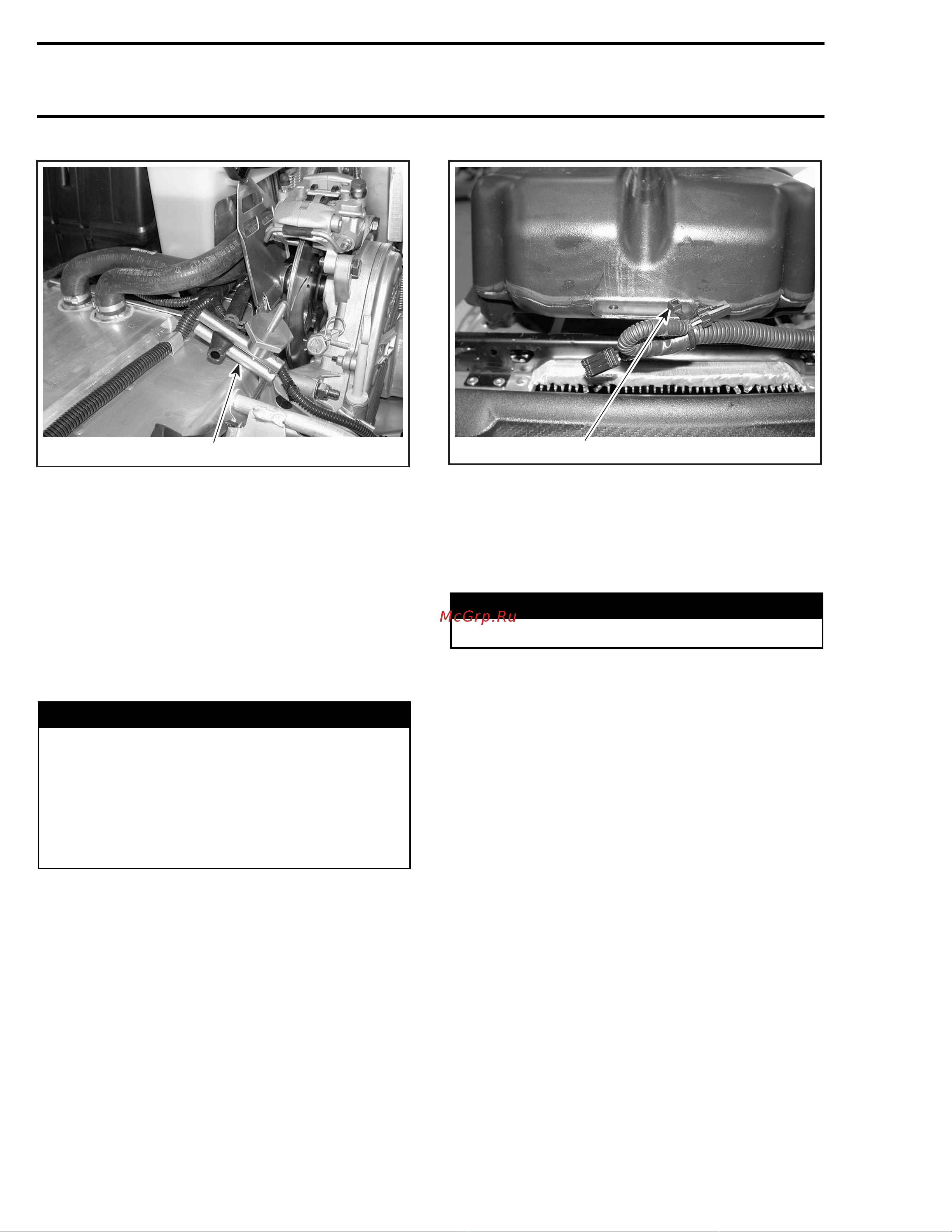

1
A33F10A
FUEL TANK REMOVED
1. Hose pincher installed on fuel line
SDI Models
Release fuel pressure of the system. Refer to
COMPONENT INSPECTION, REPLACEMENT
AND ADJUSTMENT.
Install a hose pincher on fuel pump hose no. 9
then disconnect it from fuel filter hose no. 10.
Unplug electric fuel pump connector.
All Models
WARNING
Whenever a fuel line is disconnected, ob-
struct line with a hose pincher. Fuel is
flammable and explosive under certain con-
ditions. Always wipe off any fuel or oil
spillage from the vehicle. Ensure work area
is well ventilated. Do not smoke or allow
open flames or sparks in the vicinity.
Unplug vent tube no. 2 from tank.
If applicable, cut locking tie holding wiring harness
to fuel tank at rear.
1
A33F11A
1. Cut this locking tie
Remove fuel tank no. 3 and set it aside.
Installation
Reinstall fuel tank and plug-in vent tube.
WARNING
Make sure vent tube is not kinked.
Connect fuel line and remove hose pincher.
Reinstall right and left fuel tank aluminum braces
using new lower Torx screws (with Scotch Grip)
and previously removed upper flanged hexagonal
bolts with new M8 flanged elastic stop nuts.
Reinstall filler neck nut using special tool (P/N 529
035 891).
Reinstall fuel cap.
Reinstall center console.
Reinstall console center trim cap.
Reinstall seat.
SDI Models
Reinstall fuel filter hose.
Reconnect electric fuel pump connector.
Perform a fuel pressure test.
FLOAT-TYPE FUEL LEVEL GAUGE
To remove gauge no. 4 from fuel tank, pull gauge
out of its grommet then remove grommet.
For reinstallation, proceed as follows:
– Install grommet halfway on gauge.
170 mmr2005-078
