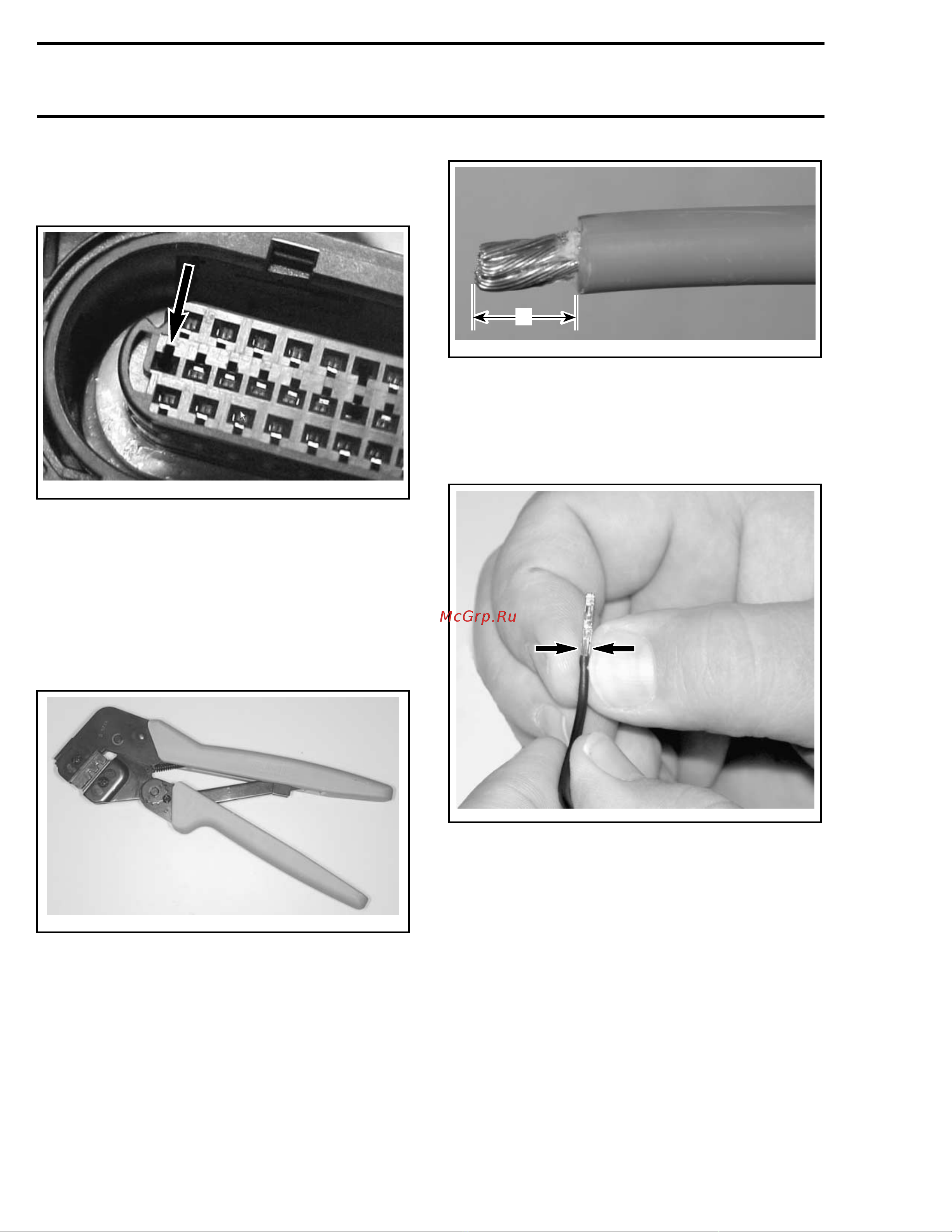

Section 11 WIRING DIAGRAMS
Subsection 01 (WIRING DIAGRAMS)
When reinserting the connector, the locking tab
must be installed facing the smaller cutout of the
connector cavity.
F18Z0XA
Insert the connector, ensuring the locking tab
snaps into the housing.
Reinstall the lock, attach the 2 tie raps, and close
the housing cover.
Terminal Crimping (Kostal and AMP multilock)
To crimp a new connector terminal, use the con-
nector crimping tool (P/N 529 035 909) and the
crimper die (P/N 529 035 906).
F00B0EA
CRIMPING TOOL
To properly crimp the wires, strictly follow this pro-
cedure.
Strip the wire to a maximum of 3 mm (1/8 in).
A32E2QA
A
TYPICAL
A. 3mm(1/8in)max.
Position wire in terminal.
Squeeze the terminal tabs with your fingers to
temporarily retain terminal in place.
A32E3YA
Insert terminal with wire in crimping pliers and po-
sition so that top of terminal tabs are flush with
pliers edge or a little bit lower as shown.
332 MMR2005-146
